Product Model

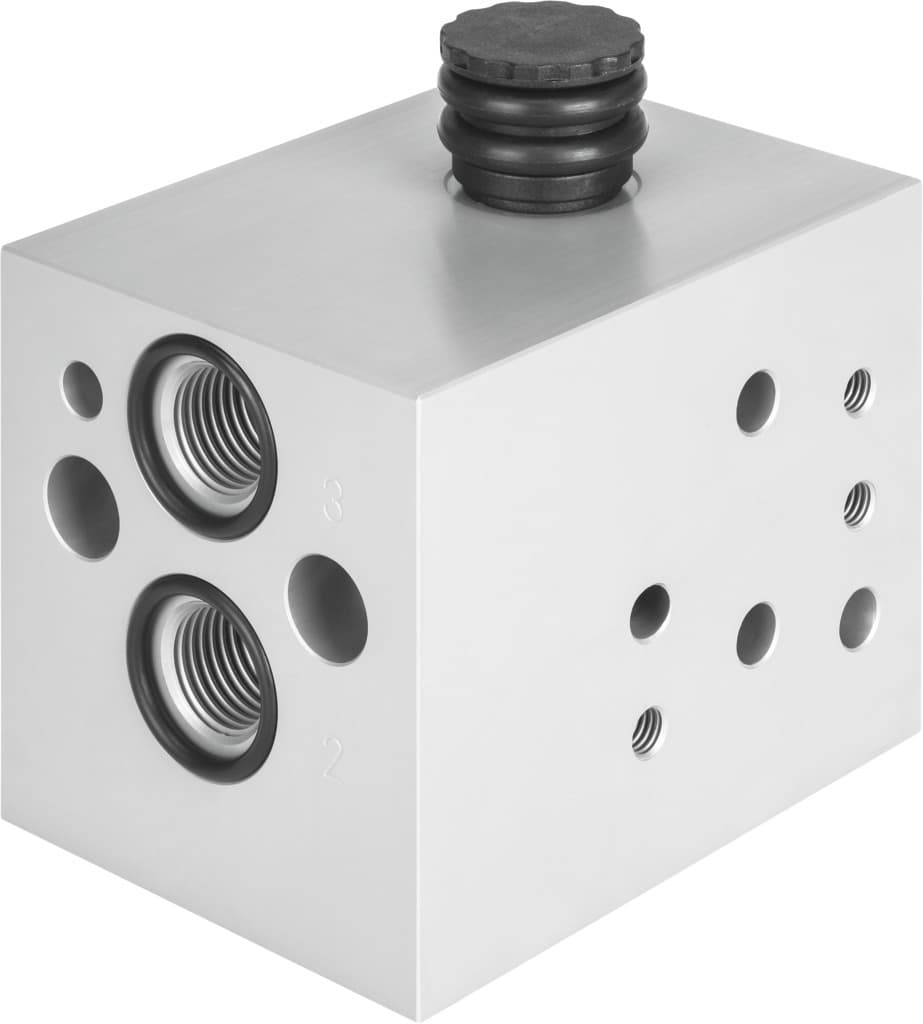

vabs-s7-rb-b-g14-v14
Selling Points
- 1The VABS-S7-RB-B-G14-V14 features a corrosion resistance class of 4, ensuring it can withstand very high corrosion stress in harsh environments.
- 2This sub-base is designed for zone 1 and 2 ATEX applications, providing reliable protection in explosive environments.
- 3With an IP65 rating, the VABS-S7-RB-B-G14-V14 offers excellent dust and water protection, making it suitable for various industrial settings.
- 4The sub-base can be mounted in any position and offers both external and internal pilot air supply options for flexibility in system design.
- 5The VABS-S7-RB-B-G14-V14 operates with compressed air as per ISO 8573-1:2010, ensuring compatibility with standard pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Pilot air supply port | External Internal |
Operating pressure | 0bar 10bar | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Degree of protection | IP65 |
Type of mounting | With through-hole | Pilot air port 12 | G1/4 |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Material of sub-base | Aluminum, ematal coated | Seals material | NBR |
Manufacturer ID | 3580505 |
Specifications may be subject to change without notice
