Product Model

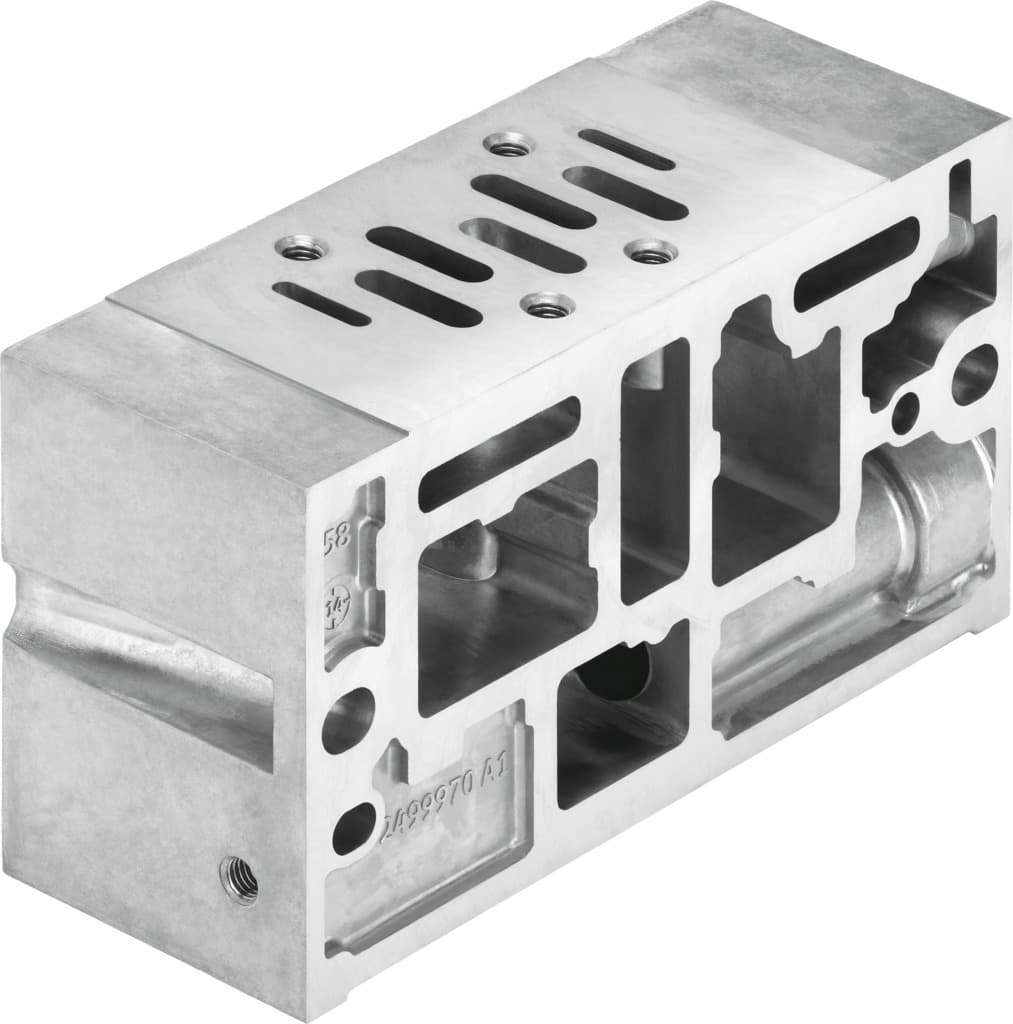

vabv-s1-1sb-g38
Selling Points
- 1Operates within a wide temperature range (-10°C to 50°C).
- 2Compatible with BSPP threads for secure connections.
- 3Designed for maximum working pressure of up to 10 bar.
- 4Compact width of 44 mm for space-efficient installations.
- 5Suitable for various pneumatic applications with ISO 5599-1 standard compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 44mm | Exhaust air function | Via throttle plate |
Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 50°C | Product weight | 490g |
Pneumatic connection 2 | G3/8 | Pneumatic connection 4 | G3/8 |
Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
Manufacturer ID | 8029812 |
Specifications may be subject to change without notice
