Product Model

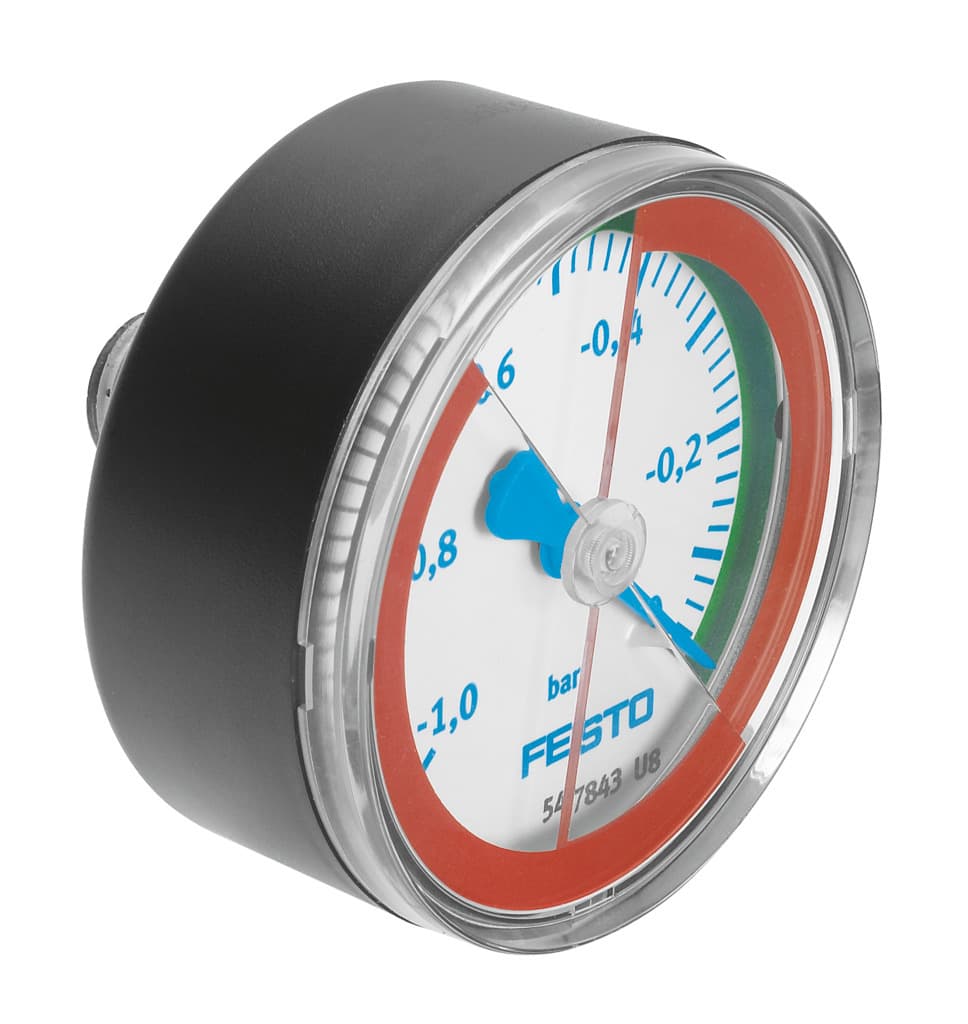

vam-63-v1/0-r1/4-e-rg
Selling Points
- 1The Festo VAM-63-V1/0-R1/4-E-RG vacuum gauge offers precise pressure measurement with a nominal size of 63, ensuring accurate readings in various industrial applications.
- 2Featuring a rear-side central connection, this gauge provides easy installation and flexibility in mounting positions, making it suitable for diverse setup configurations.
- 3The VAM-63-V1/0-R1/4-E-RG is designed to meet the standards of DIN EN 837-1, ensuring high-quality performance and reliability in pressure measurement.
- 4Compatible with compressed air in accordance with ISO 8573-1:2010 [7:4:4], this gauge is ideal for applications requiring precise control over air pressure.
- 5The gauge supports lubricated operation, which is necessary for prolonged use and optimal performance, making it a reliable choice for industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pressure gauge nominal size | 63 | Connection position | Centered on rear side |
Based on norm | DIN EN 837-1 | Type of seal on screwed plug | Coating |
Mounting position | Any | Structural design | Bourdon tube pressure gauge |
Symbol | 00991463 | Display range | -1bar 0bar |
Scale | Single scale | Operating pressure | -1bar 0bar |
Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Continuous load factor | 0.75 |
Intermittent load factor | 0.66 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -20°C 60°C |
Ambient temperature | -10°C 60°C | Product weight | 90g |
Measurement accuracy class | 2.5 | Type of mounting | Screw-in |
Pneumatic connection | R1/4 | Material of screwed plug | Brass |
Housing material | ABS | Segments material | PS |
Inspection window material | PS | Manufacturer ID | 547843 |
Specifications may be subject to change without notice
