Product Model
vame-s7-p-n-v14-a
Selling Points

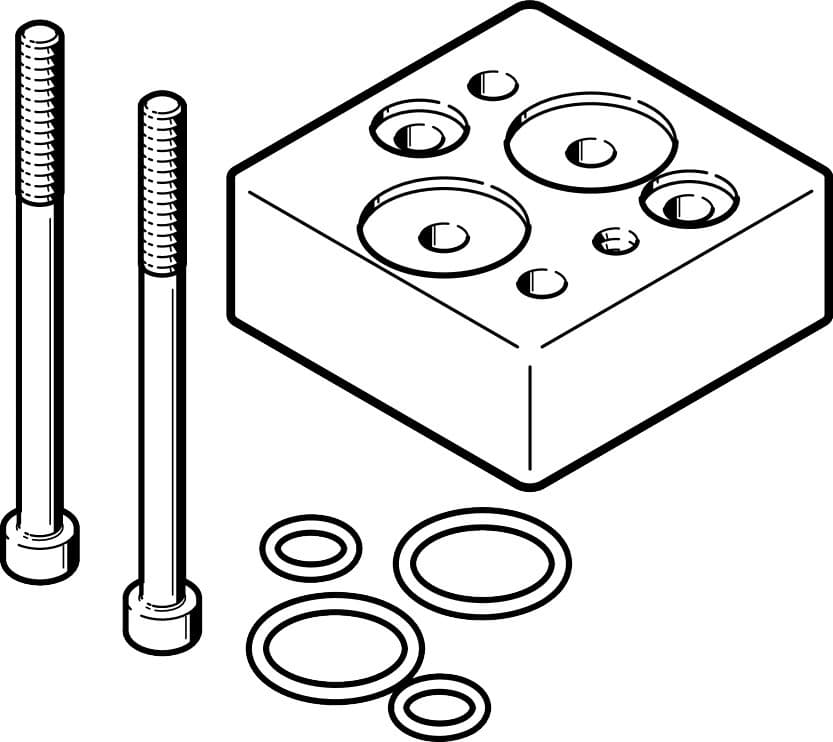

- 1The VAME-S7-P-N-V14-A mounting plate is designed for use in hazardous environments, offering explosion protection in Zone 1 (ATEX) and other zones.
- 2This mounting plate supports operating pressures up to 1 MPa (10 bar or 145 psi), making it suitable for various pneumatic applications.
- 3The VAME-S7-P-N-V14-A features corrosion resistance class CRC 4, ensuring high durability in demanding conditions.
- 4It includes pneumatic connections with M5, G1/4, and 1/4" flange sizes, accommodating different port patterns and configurations.
- 5The plate is made from ematal coated aluminum and is RoHS-compliant, ensuring environmental sustainability and material quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Operating pressure | 0psi 145psi |
Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP65 | Type of mounting | With through-hole |
Pneumatic connection 1 | M5 NAMUR connection diagram | Pneumatic connection 2 | Flange 1/4 NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Plate material | Aluminum, ematal coated |
Manufacturer ID | 3581412 |
Specifications may be subject to change without notice
