Product Model

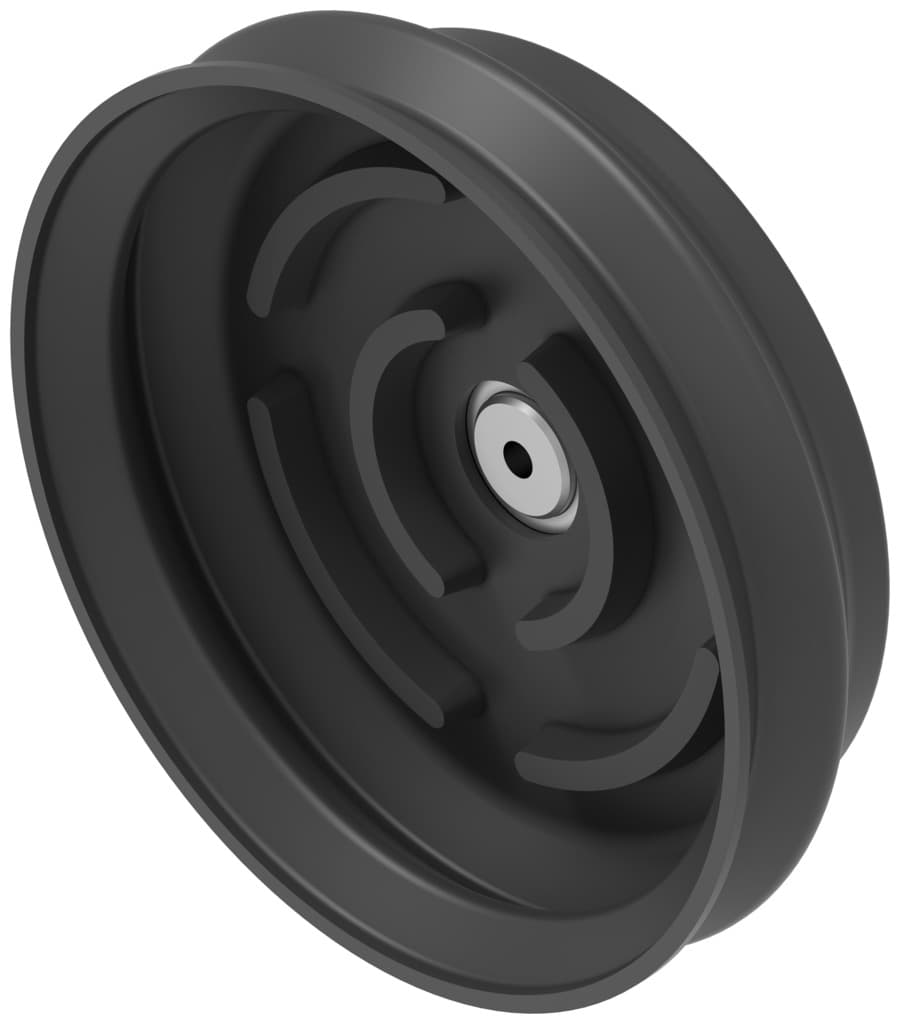

vasb-100-1/4-nbr

Selling Points
- 1The Festo Vasb-100-1/4-NBR is a high-quality automation component designed for precision and reliability. It ensures smooth operation in various industrial applications, providing consistent performance and longevity.
- 2This component is engineered to meet the highest standards of quality, ensuring it withstands demanding conditions and maintains its performance over time. Its robust design makes it ideal for heavy-duty applications.
- 3The Vasb-100-1/4-NBR is part of Festo's extensive range of pneumatic and electrical components, offering a one-stop solution for all your automation needs. It integrates seamlessly with other Festo products for efficient system operation.
- 4This component features advanced materials and construction techniques, ensuring it operates efficiently and effectively in a wide range of environments. Its durability and reliability make it a trusted choice for industries requiring precision and consistency.
- 5The Festo Vasb-100-1/4-NBR is designed to simplify your procurement process with its standardized dimensions and mounting interfaces. This makes it easy to integrate into existing systems, reducing setup time and increasing productivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal width | 4mm | Suction cup diameter | 100mm |
Effective suction cup diameter | 85mm | Connection position | Top |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -20°C 80°C | Breakaway force at 70% vacuum | 397N |
Holding force at nominal operating pressure | 397N | Mounting thread | G? |
Suction cup mounting | G 1/4 | Vacuum connection | G1/4 |
Color | Black | Shore hardness | 60 +/- 5 |
Material of screwed plug | Die-cast zinc | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 35416 |
Specifications may be subject to change without notice
