Product Model
vasb-30-1/8-si-b
Selling Points

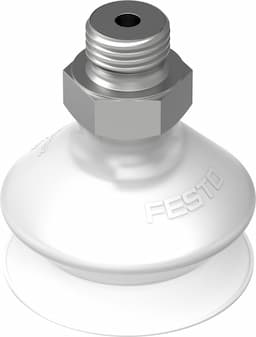

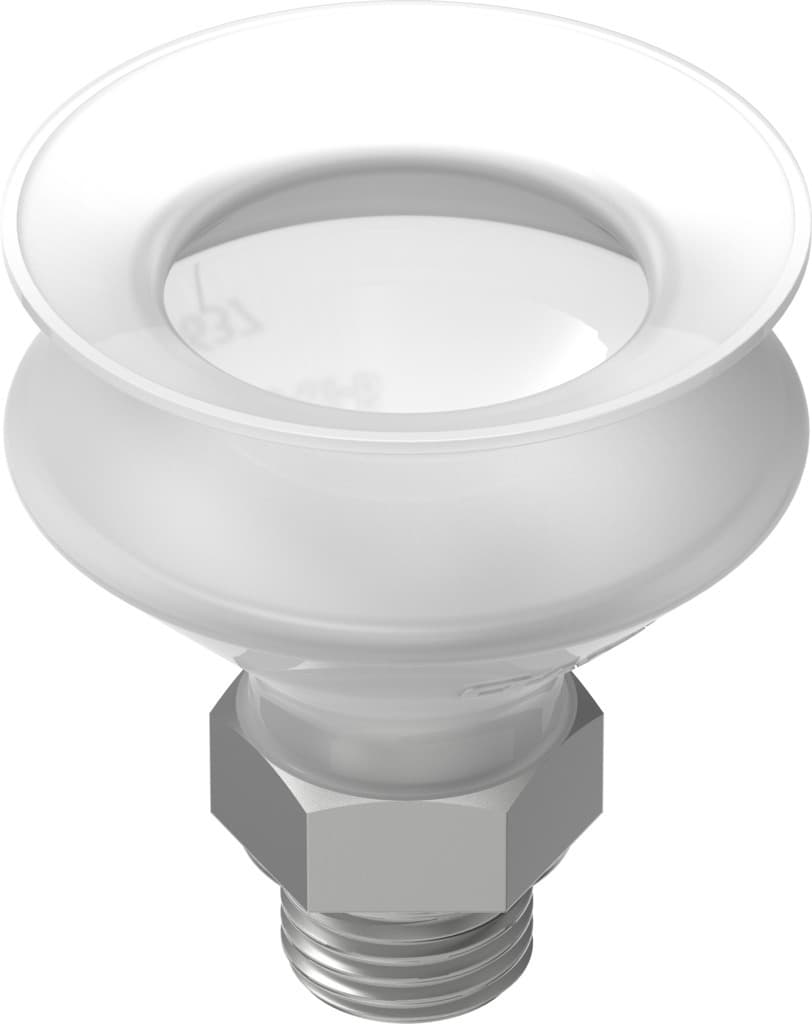

- 1The Festo VASB-30-1/8-SI-B vacuum suction cup offers height compensation of 13.9 mm, ensuring stable and consistent performance in various applications.
- 2With a nominal width of 3 mm and a suction cup diameter of 30 mm, this suction cup provides a precise fit for diverse handling tasks.
- 3The VASB-30-1/8-SI-B features a suction cup volume of 6.18 cm³, making it suitable for applications requiring moderate to high vacuum levels.
- 4This suction cup is designed with a top connection position, allowing for easy integration into your automation system.
- 5The Festo VASB-30-1/8-SI-B is part of Festo's comprehensive range of pneumatic and electric automation solutions, ensuring compatibility and reliability in your industrial setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 13.9mm | Nominal width | 3mm |
Suction cup diameter | 30mm | Suction cup volume | 6.18cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -40°C 200°C | Holding force at nominal operating pressure | 25N |
Product weight | 7g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/8 | Color | Transparent |
Shore hardness | 60 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 1377637 |
Specifications may be subject to change without notice
