Product Model

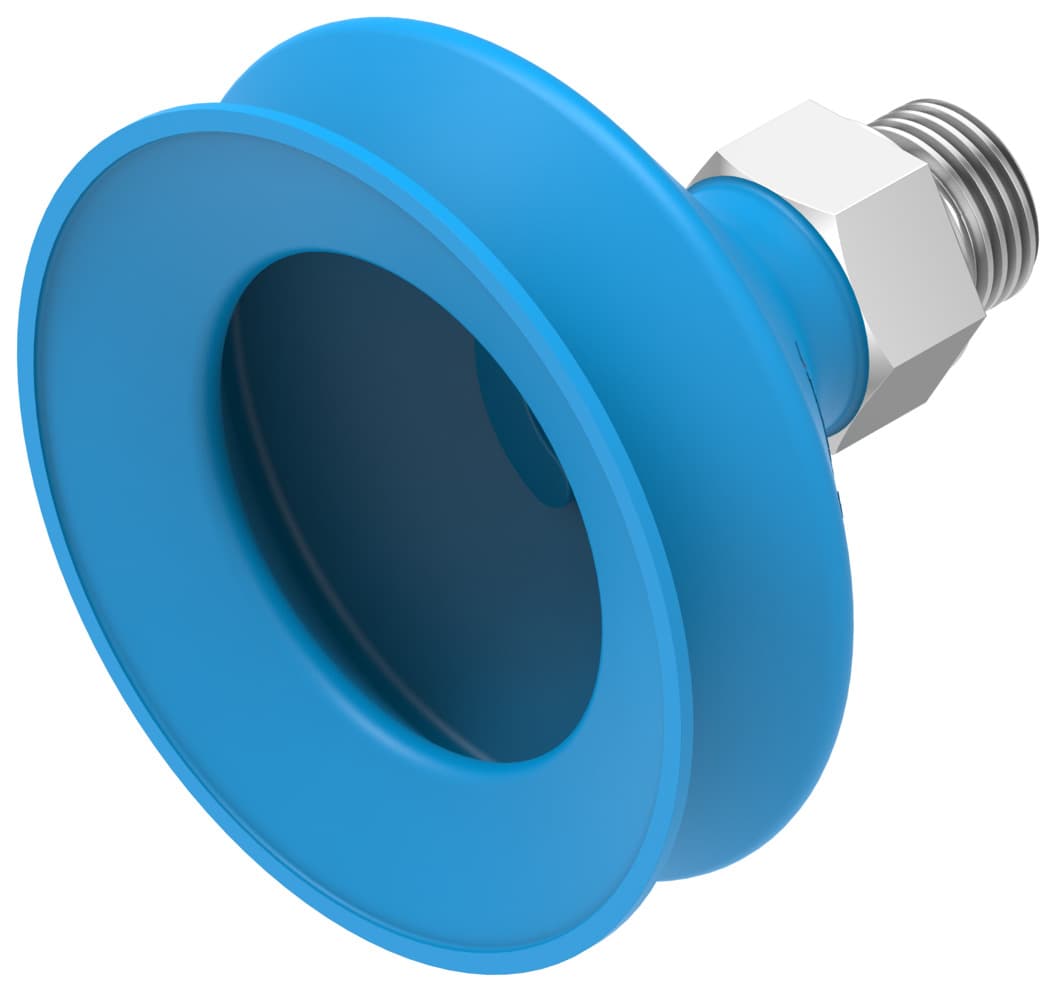

vasb-55-1/4-pur-b

Selling Points
- 1The Festo Vasb-55-1/4-Pur-B is a high-quality automation component designed for precision and reliability in industrial applications. It offers advanced features and specifications that ensure optimal performance.
- 2This component is part of Festo's extensive range of pneumatic and electric automation solutions, providing users with a versatile and cost-effective option for their automation needs.
- 3The Vasb-55-1/4-Pur-B is engineered to meet the highest standards of quality, ensuring durability and long-lasting performance in demanding industrial environments.
- 4With its user-friendly design and easy parameterization, the Vasb-55-1/4-Pur-B simplifies the integration process, making it an ideal choice for both beginners and experienced automation professionals.
- 5Festo's commitment to innovation and customer support ensures that the Vasb-55-1/4-Pur-B is backed by comprehensive documentation, technical support, and a robust warranty, providing peace of mind for users.
- 6Go to the official Festo website ([www.festo.com](https://www.festo.com)).
- 7Use the product search function to find the Vasb-55-1/4-Pur-B.
- 8Look for detailed documentation, such as datasheets, application notes, or technical data sheets, which should include the parameters and descriptions of the component.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Suction cup height compensation | 20mm | Nominal width | 4mm |
Suction cup diameter | 55mm | Suction cup volume | 30.4cm3 |
Effective suction cup diameter | 44.7mm | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -20°C 60°C | Holding force at nominal operating pressure | 110N |
Product weight | 39g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Die-cast zinc |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 1396063 |
Specifications may be subject to change without notice
