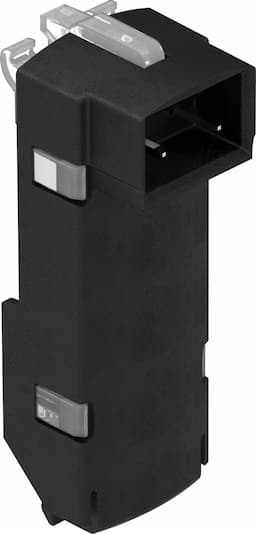

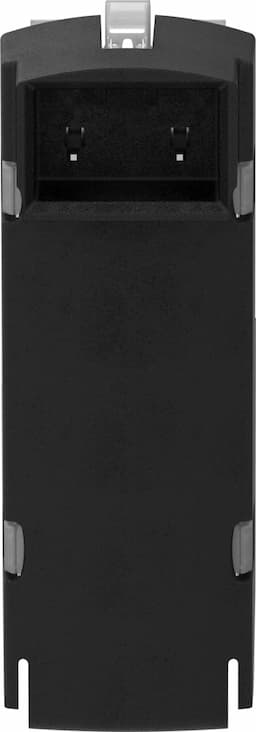

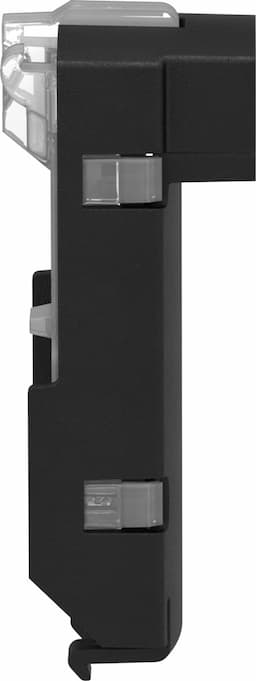

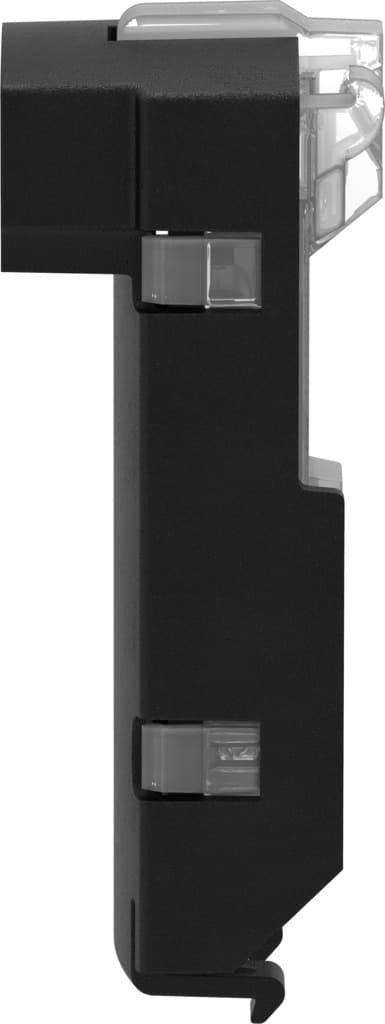

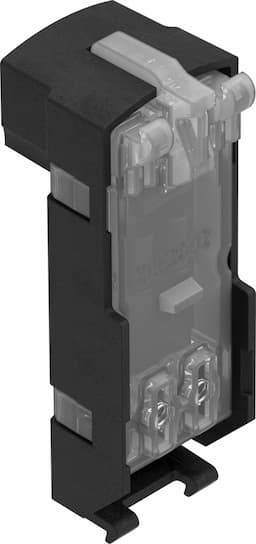

Product Model
vave-l1-1vh2-lp
Selling Points
- 1Bipolar protection ensures safe operation in any environment.
- 2Includes spark arresting and LED signal status display for enhanced functionality.
- 3Operates at both 12 V and 24 V DC nominal operating voltages.
- 4Withstands up to 0.8 kV surge strength, ensuring reliability in harsh conditions.
- 5Corrosion-resistant with a housing material of PA, suitable for extended ambient temperatures (-5°C to 60°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Reverse polarity protection | Bipolar | Additional functions | Spark suppression |
Signal status display | LED | Nominal operating voltage DC | 24V |
Surge resistance | 0.8kV | Contamination level | 3 |
Extended ambient temperature | -5 - 60 °C | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP40 |
Ambient temperature | -5°C 50°C | Mounting position | Any |
Product weight | 1.5g | Electrical connection | 2-pin Socket |
Protective earth connection | Not available | Type of mounting | Clip |
Housing colour | Black | Note on materials | RoHS-compliant |
Housing material | PA | Manufacturer ID | 566714 |
Specifications may be subject to change without notice
