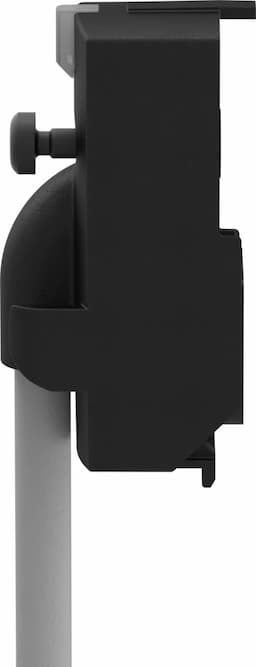

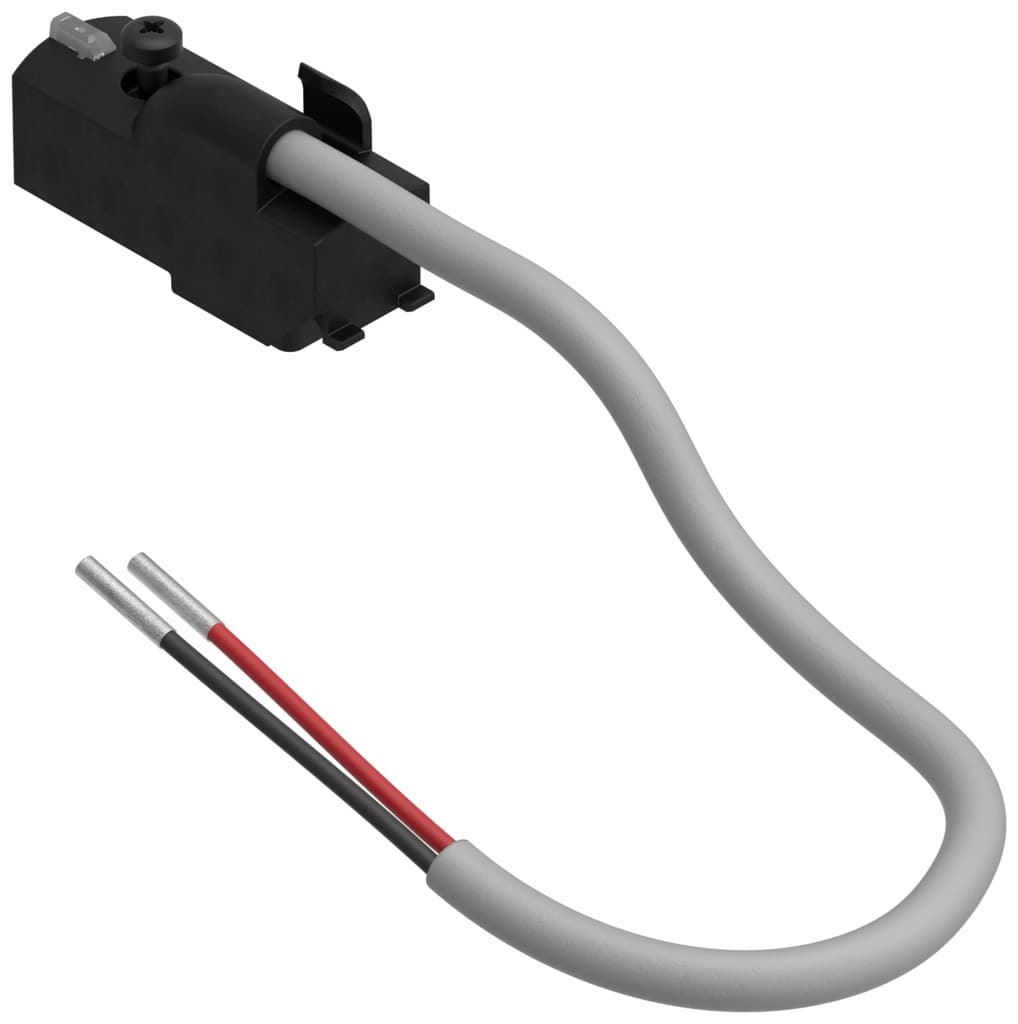

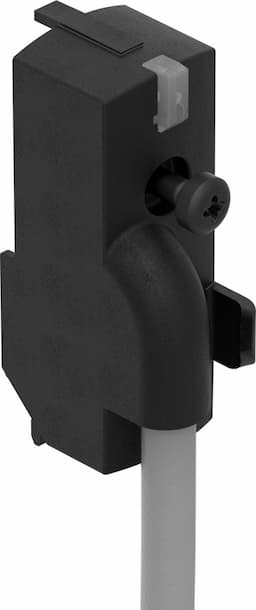

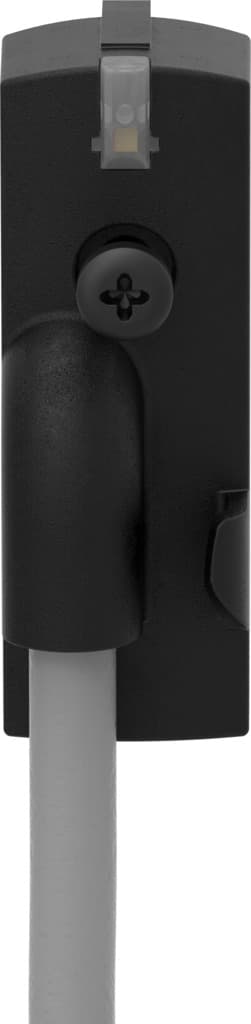

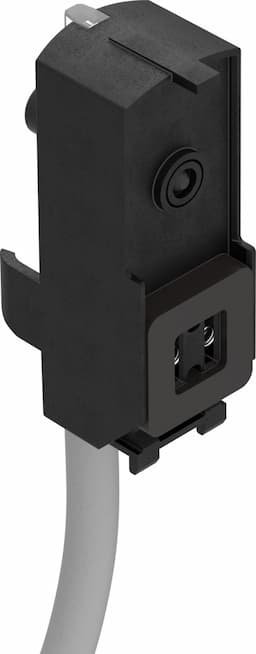

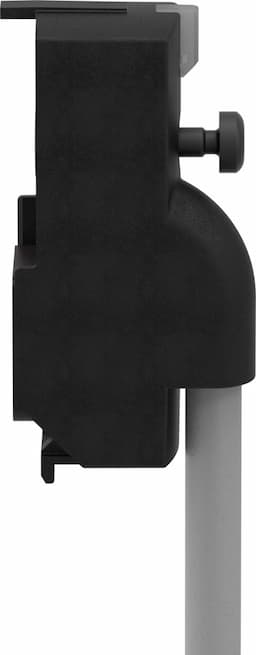

Product Model
vave-l1-1vk7-lp
Selling Points
- 1Bipolar Reverse Polarity Protection: Safeguards against incorrect polarity connections.
- 2IP65 Degree of Protection: Ensures high resistance to dust and water.
- 3PA Housing Material: Durable and resistant to corrosion.
- 412V or 24V DC Nominal Operating Voltage: Compatible with various DC voltage requirements.
- 51 Meter Cable Length: Convenient for static applications with a fixed cable length.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Cable characteristic | for static applications | Reverse polarity protection | Bipolar |
Additional functions | Spark suppression | Signal status display | LED |
Nominal operating voltage DC | 12V | Surge resistance | 0.8kV |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 |
Ambient temperature | -5°C 60°C | Mounting position | Any |
Max. tightening torque | 0.27Nm | Min. cable bending radius | 34mm |
Product weight | 20g | Electrical connection | 2-pin/2-wire Angled socket/cable Rectangular design/open end |
Cable design | 2 x 0.25 mm2 | Cable diameter | 3.4mm |
Cable diameter tolerance | ± 0.1 mm | Cable length | 1m |
Wire ends | Cable end sleeve | Protective earth connection | Not available |
Type of mounting | On air solenoid valve with self-tapping screw | Housing colour | Black |
Note on materials | RoHS-compliant | Cover material | PA |
Seals material | EPDM | Housing material | PA |
Material of cable sheath | TPV | Material of screws | Tempered steel |
Manufacturer ID | 573942 |
Specifications may be subject to change without notice
