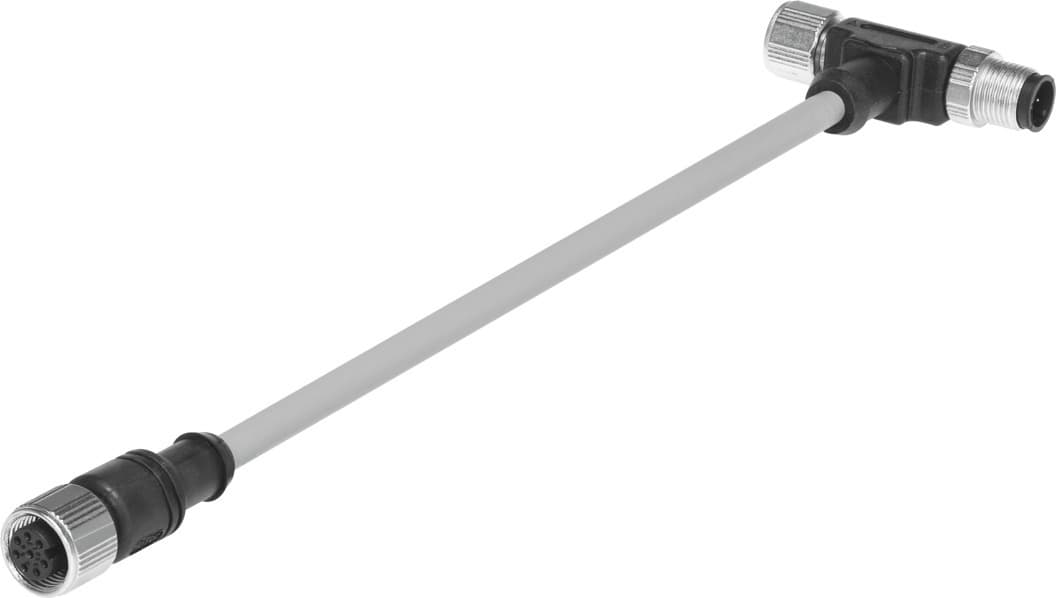

Product Model
vave-p8-vps
Selling Points
- 1Compliant with DIN 47100 and EN 61076-2-101 standards.
- 2T-distributor design with cable on controller side.
- 3Programming interface for proportional pressure regulators.
- 4M12x1 A-coded connectors with 8-pin configuration.
- 5IP65 and IP67 protection for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Conforms to standard | DIN 47100 EN 61076-2-101 | Structural design | T-distributor with cable on controller side |
Distributor type | 1 to 2 | Additional functions | Programming interface for proportional pressure control valve |
Cable designation | Without label holder | Electrical connection 1, function | Field device end |
Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
Electrical connection 1, type of mounting | Screw-type lock with AF 14 | Electrical connection for input 1, connection pattern | 00992265 |
Electrical connection 2, function | Control side | Electrical connection 2, design | Round |
Electrical connection 2, connection type | Plug | Electrical connection 2, cable outlet | Straight |
Electrical connection 2, connection technology | M12x1 A-coded as per EN 61076-2-101 | Electrical connection 2, number of pins/wires | 8 |
Electrical connection 2, occupied pins/wires | 8 | Electrical connection 2, type of mounting | Screw-type lock with AF 14 |
Electrical connection 2, connection pattern | 00992264 | Electrical connection 3, function | Control side |
Electrical connection 3, design | Round | Electrical connection 3, connection type | Socket |
Electrical connection 3, cable outlet | Straight | Electrical connection 3, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 3, number of pins/wires | 5 | Electrical connection 3, occupied pins/wires | 4 |
Electrical connection 3, type of mounting | Screw-type lock | Electrical connection for input 3, connection pattern | 00991861 |
DC operating voltage range | 0V 30V | Operating voltage range AC | 0V 30V |
Current rating at 40° C | 2A | Shield | yes |
Cable length 1 | 0.15m | Cable characteristic | Standard |
Cable diameter 1 | 6.3mm | Cable diameter tolerance 1 | ± 0.2 mm |
Cable design | 8 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
Degree of protection | IP65 IP67 | Note on degree of protection | In mounted state |
Ambient temperature | -25°C 80°C | Ambient temperature with flexible cable installation | -5°C 80°C |
CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Note on materials | RoHS-compliant Halogen-free |
Contamination level | 3 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
Housing material | TPE-U(PUR) | Housing colour | Black |
Material of screw-type lock | Die-cast zinc, nickel-plated | Seals material | NBR |
Material of pin contacts | Brass, gold-plated | Manufacturer ID | 570971 |
Specifications may be subject to change without notice
