Product Model

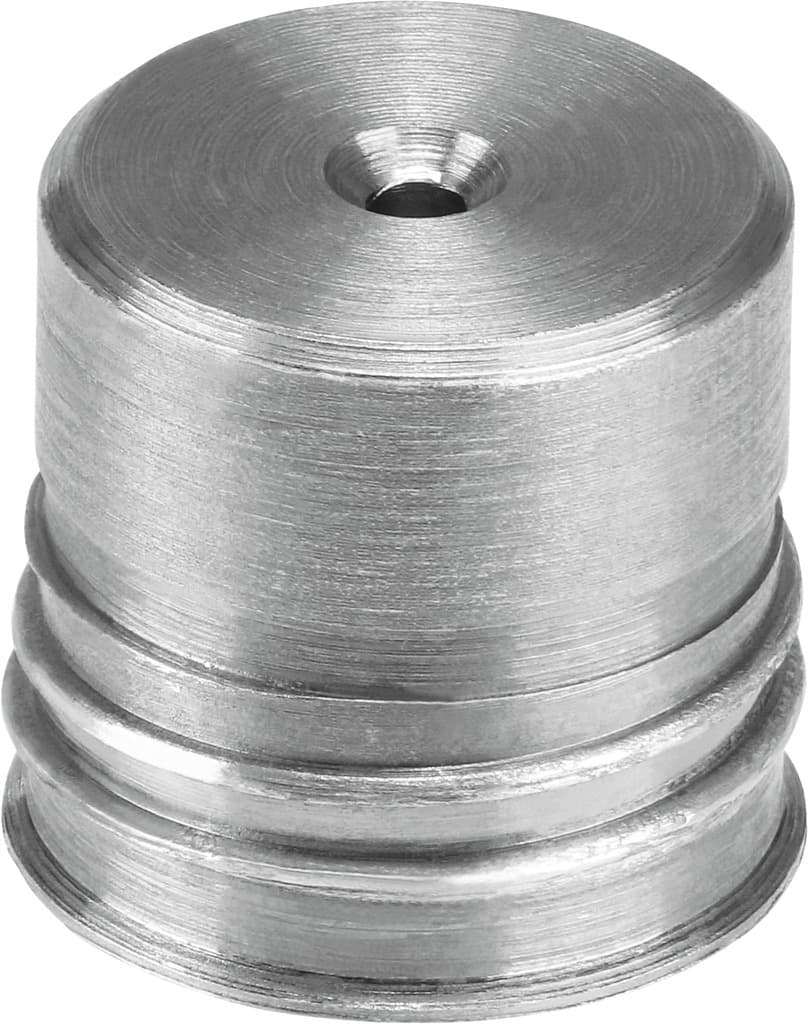

vffg-t-f6-7
Selling Points
- 1The VFFG-T-F6-7 ensures consistent flow rates with its fixed flow restrictor design.
- 2Suitable for ø 5.8 mm diameter, making it ideal for space-constrained applications.
- 3Operates between -0.09 MPa and 1 MPa (or -0.9 bar to 10 bar) for versatile use.
- 4Functions within -5 °C to 60 °C ambient temperature range.
- 5Meets RoHS compliance and is c UL us - Recognized (OL) for safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | Flow control function | Type of mounting | Tapped |
Operating pressure | -0.9bar 10bar | Ambient temperature | -5°C 60°C |
Certification | c UL us - Recognized (OL) | Size | For 5.8 mm diameter |
Nominal width | 0.7mm | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -10°C 60°C | Product weight | 1.2g |
Note on materials | RoHS-compliant | Manufacturer ID | 8047353 |
Specifications may be subject to change without notice
