Product Model
vn-10-l-t3-pi4-vi4-ri4
Selling Points

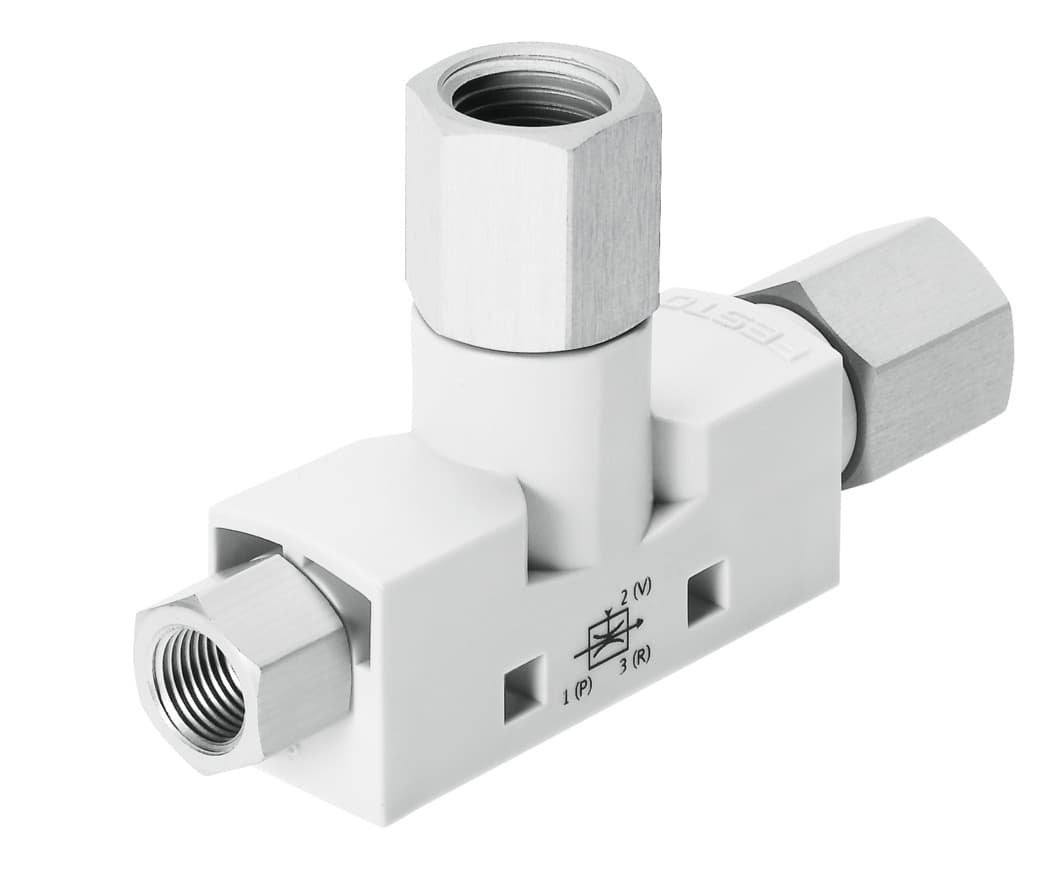

- 1The Festo VN-10-L-T3-PI4-VI4-RI4 vacuum generator boasts a high suction flow rate of 62.7 liters per minute, making it suitable for demanding industrial applications.
- 2This vacuum generator features a standard T-shaped design with a female thread, ensuring easy integration into various pneumatic systems.
- 3The VN-10-L-T3-PI4-VI4-RI4 operates within a pressure range of 1 to 8 bar, with a nominal operating pressure of 6 bar, providing reliable performance under different conditions.
- 4With a corrosion resistance classification of CRC 1, this vacuum generator is designed to withstand low corrosion stress, ensuring durability in harsh environments.
- 5Weighing only 22 grams and measuring 14 mm in width, the VN-10-L-T3-PI4-VI4-RI4 is a compact solution for space-constrained industrial setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 14mm |
Mounting position | Any | Ejector characteristics | High suction rate Standard |
Structural design | T-shape | Symbol | 00991490 |
Operating pressure for max. suction rate | 4bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 62.7l/min |
Air supply time at nominal operating pressure | 0.46s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 0°C 60°C |
Ambient temperature | 0°C 60°C | Max. tightening torque | 0.5Nm |
Product weight | 22g | Type of mounting | With through-hole With accessories |
Pneumatic connection 1 | G1/8 | Pneumatic connection 3 | G1/8 |
Vacuum connection | G1/8 | Material of connecting thread | Wrought aluminum alloy, anodized |
Note on materials | RoHS-compliant | Seals material | NBR |
Female nozzle material | POM | Housing material | POM-reinforced |
Material of jet nozzle | Wrought aluminum alloy | Manufacturer ID | 193583 |
Specifications may be subject to change without notice
