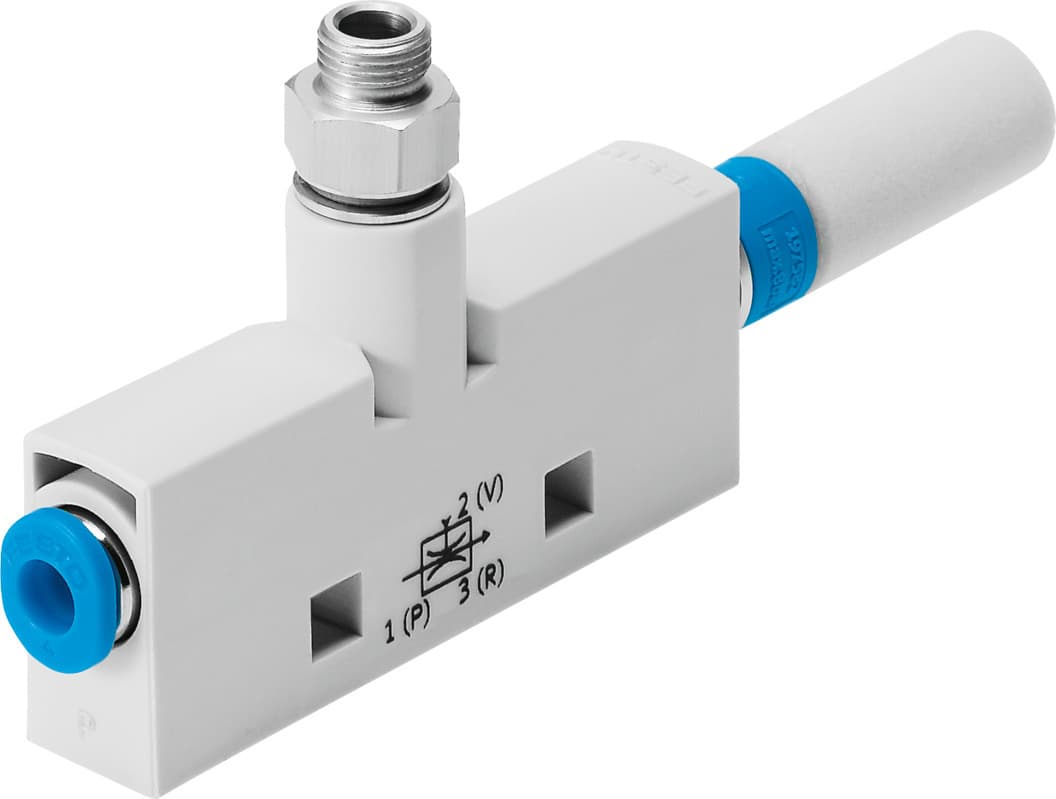

Product Model
vn-10-l-t4-pq2-va5-ro2
Selling Points
- 1The Festo VN-10-L-T4-PQ2-VA5-RO2 vacuum generator offers a high suction rate, making it perfect for applications requiring efficient air flow, such as lithium-ion battery production.
- 2Equipped with a 0.95mm width Laval nozzle, this vacuum generator ensures optimal performance and efficiency in various industrial settings.
- 3The VN-10-L-T4-PQ2-VA5-RO2 features standard ejector characteristics, providing reliable and consistent performance in a wide range of applications.
- 4Designed for industrial automation, this vacuum generator is a versatile tool that can be integrated into complex systems, enhancing productivity and efficiency.
- 5Enjoy free shipping on orders over $1,000 and lifetime technical support with the purchase of the Festo VN-10-L-T4-PQ2-VA5-RO2 vacuum generator.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width of Laval nozzle | 0.95mm | Width dimension | 18mm |
Muffler construction type | Open | Mounting position | Any |
Ejector characteristics | High suction rate Standard | Integrated function | Pneumatic muffler open |
Structural design | T-shape | Symbol | 00991489 |
Operating pressure for max. suction rate | 4bar | Operating pressure | 1bar 8bar |
Nominal operating pressure | 6bar | Max. suction rate with respect to atmosphere | 62.7l/min |
Air supply time at nominal operating pressure | 0.46s | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Temperature of medium | 0°C 60°C |
Noise level at nominal operating pressure | 72dB(A) | Ambient temperature | 0°C 60°C |
Max. tightening torque | 0.5Nm | Product weight | 42g |
Type of mounting | With through-hole With accessories | Pneumatic connection 1 | QS-6 |
Pneumatic connection 3 | Pneumatic muffler open | Vacuum connection | G1/4 |
Material of connecting thread | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Seals material | NBR | Female nozzle material | POM |
Housing material | POM-reinforced | Muffler material | Die-cast aluminum POM PU foam |
Material of jet nozzle | Wrought aluminum alloy | Material of pneumatic fitting | Brass Nickel-plated |
Manufacturer ID | 549254 |
Specifications may be subject to change without notice
