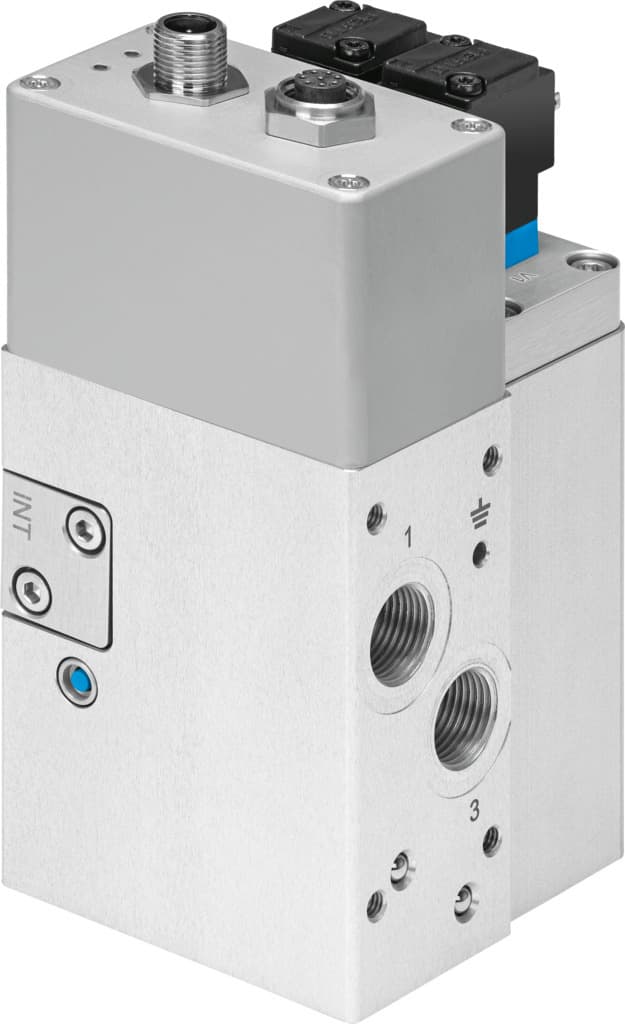

Product Model
vpcb-6-l-8-g38-10-f-d3-t22
Selling Points
- 1The Festo VPCB-6-L-8-G38-10-F-D3-T22 features a 3-way proportional pressure regulator valve function, ensuring precise control over pneumatic systems.
- 2Equipped with integrated pressure sensors and direct piloting, this valve unit provides real-time monitoring and efficient control.
- 3The valve unit is electrically actuated with a magnetic spring reset, ensuring reliable operation and easy maintenance.
- 4With a hard sealing principle, this valve can operate at high pressures (4 to 8 BAR) and maintain its performance over time.
- 5The Festo VPCB-6-L-8-G38-10-F-D3-T22 meets IP65 protection standards and is compliant with EU EMC and RoHS directives, ensuring safety and reliability in industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3-way proportional pressure control valve | Structural design | Piston gate valve with integrated pressure sensors |
Type of control | Direct | Actuation type | Electrical |
Reset method | Magnetic spring | Flow direction | Non-reversible |
Mounting position | Any | Sealing principle | Hard |
Nominal width | 6mm | Short-circuit protection | yes |
Display type | LED | Standard nominal flow rate | 725l/min |
Operating pressure | 4bar 8bar | Typical lowering speed | 15mm/s |
Note on lowering speed | When manual exhausting is actuated with cylinder diameter 80 mm, transmission ratio 1:1 and 100 kg load. | Ambient temperature | 0°C 50°C |
Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] | Information on operating and pilot media | Operation with oil lubrication not possible Maximum particle size 5 μm |
Degree of protection | IP65 | Note on degree of protection | In mounted state |
Certification | RCM compliance mark | KC characters | KC EMC |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
LABS (PWIS) conformity | VDMA24364 zone III | Note on materials | RoHS-compliant |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Application note | The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas. |
Nominal operating voltage DC | 24V | DC operating voltage range | 21.6V 26.4V |
Residual ripple | 5 % | Max. current consumption | 1.2A |
Current consumption | 120 mA | Reverse polarity protection | for operating voltage |
Duty cycle | 100% | Max. electrical power consumption | 33.5W |
Diagnostic function | Indication via LED | Max. cable length | 30 m |
Fieldbus interface, connection type | Plug | Fieldbus interface, connection technology | M12x1, A-coded as per EN 61076-2-101 |
Fieldbus interface, number of poles/wires | 5 | Fieldbus interface, protocol | CAN bus with Festo protocol |
Electrical connection for actuator, connection type | Socket | Electrical actuator connection, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical actuator connection, number of pins/wires | 8 | Pneumatic valve electrical connection, connection type | Plug |
Electrical pneumatic valve connection, connection technology | Connection diagram form C as per industrial standard, 9.4 mm | Electrical pneumatic valve connection, number of pins/wires | 2 |
Type of mounting | Direct fastening via M5 thread | Pneumatic connection 1 | G3/8 |
Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
Pneumatic connection for control component | G1/8 | Product weight | 1550g |
Housing material | Wrought aluminum alloy, anodized | Seals material | FPM HNBR NBR |
Manufacturer ID | 5318141 |
Specifications may be subject to change without notice
