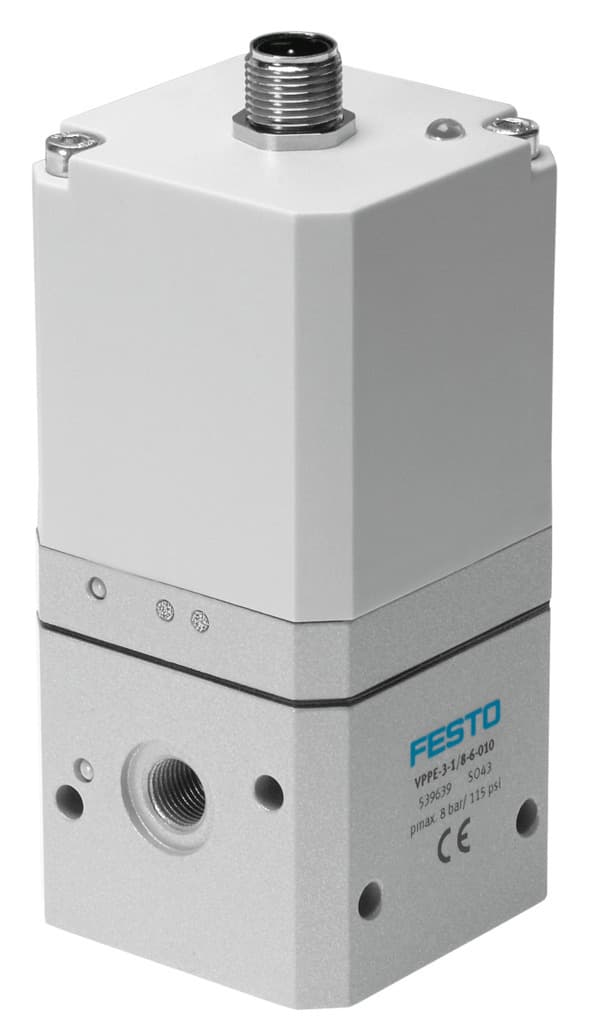

Product Model
vppe-3-1/8-6-010
Selling Points
- 1The Festo VPPE-3-1/8-6-010 is a high-precision proportional pressure regulator designed for block mounting, ensuring accurate pressure control with an electrical setpoint specification.
- 2This regulator features a nominal diameter of 5 mm for pressurization and 2.5 mm for exhaust, making it suitable for a variety of applications.
- 3With an electrical actuation type and soft sealing principle, the VPPE-3-1/8-6-010 offers reliable performance and easy maintenance.
- 4The regulator is designed with a piloted piston structure, ensuring robust short circuit strength and polarity protection for all electrical connections.
- 5The VPPE-3-1/8-6-010 offers a pressure regulation range of 0.15 to 6 bar, with an inlet pressure of 7 to 8 bar and a maximum pressure hysteresis of 0.15 bar, making it versatile for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 5mm | Exhaust nominal width | 2.5mm |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any Preferably vertical | Structural design | Pilot-controlled piston control valve |
Short-circuit protection | For all electrical connections | Safety instructions | VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
Valve function | 3-way proportional pressure control valve closed | Operating pressure | 8bar |
Pressure regulation range MPa | 0.015MPa 0.6MPa | Pressure regulation range | 0.15bar 6bar |
Inlet pressure 1 | 6bar 8bar | Inlet pressure 1 MPa | 0.6MPa 0.8MPa |
Max. pressure hysteresis | 0.15bar | Standard nominal flow rate | 850l/min |
Switching time off | 1300ms | On switching time | 550ms |
DC operating voltage range | 21.6V 26.4V | Max. current consumption | 150mA |
Max. electrical power consumption | 3.6W | Residual ripple | 10 % |
Setpoint/actual values | Voltage type 0 - 10 V | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
Ambient temperature | 10°C 50°C | Product weight | 445g |
Linearity | 1%FS | Hysteresis | 2.5%FS |
Reproducibility | 0.5%FS | Overall accuracy | 2.25 %FS |
Temperature coefficient | 0.04%/K | Electrical connection | 4-pin M12x1 Plug Round design |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Note on materials | RoHS-compliant |
Housing material | Wrought aluminum alloy | Diaphragm material | NBR |
Manufacturer ID | 539639 |
Specifications may be subject to change without notice
