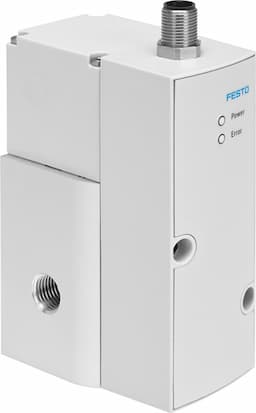

Product Model
vppx-8l-l-1-g14-0l10h-s1
Selling Points
- 1Precise Pressure Control: Regulates air pressure from 0.1 to 10 bar with high accuracy.
- 2Electrical Actuation: Features soft sealing and electrical actuation for reliable operation.
- 3High Flow Rate: Supports a standard nominal flow rate of 2,750 l/min.
- 4Compact Design: Suitable for any assembly position with a compact design.
- 5Compliance & Safety: Meets RCM, UL, and CE standards for safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width pressurization | 8mm | Exhaust nominal width | 7mm |
Actuation type | Electrical | Sealing principle | Soft |
Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |
Short-circuit protection | For all electrical connections | Safety instructions | VPPX safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form. |
Symbol | 00995303 | Reverse polarity protection | for all electrical connections |
Reset method | Mechanical spring | Type of control | Pilot-controlled |
Valve function | 3-way proportional pressure control valve | Display type | LED |
Pressure regulation range | 0.1bar 10bar | Inlet pressure 1 | 0bar 11bar |
Max. pressure hysteresis | 0.05bar | Standard nominal flow rate | 2750l/min |
DC operating voltage range | 21.6V 26.4V | Max. current consumption | 300mA |
Duty cycle | 100% | Max. electrical power consumption | 7W |
Residual ripple | 10 % | Analog output signal range | 0 - 10 V 0 - 20 mA 4 - 20 mA |
Analog input signal range | 0 - 10 V 4 - 20 mA 0 - 20 mA | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication not possible | Certification | RCM compliance mark c UL us - Listed (OL) |
KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Certificate issuing authority | UL E322346 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Temperature of medium | 10°C 50°C | Degree of protection | IP65 |
Ambient temperature | 0°C 60°C | Product weight | 560g |
Temperature coefficient | 0.04%/K | Repetition accuracy FS | 0.5% |
Repetition accuracy in ± %FS | 0.5%FS | Electrical connection | 8-pin M12 Plug |
Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
Note on materials | RoHS-compliant | Housing material | Wrought aluminum alloy Anodized |
Manufacturer ID | 570969 |
Specifications may be subject to change without notice
