Product Model

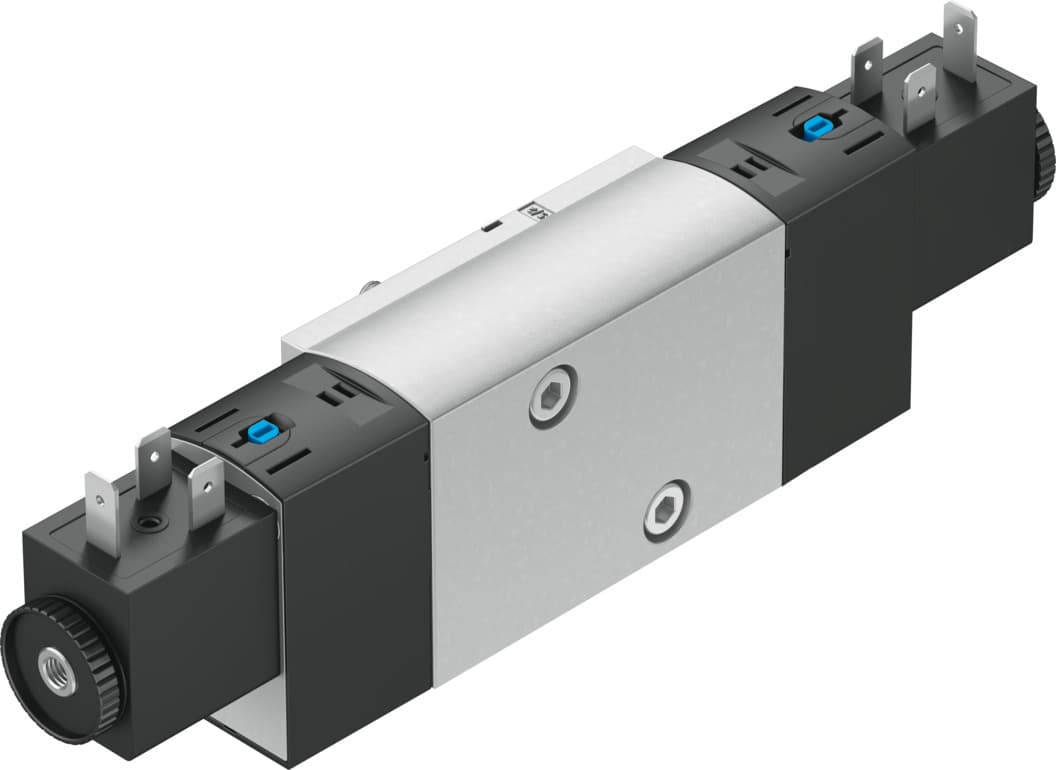

vsnc-f-b52-d-g14-f8-1b2
Selling Points
- 1High-Performance Pneumatic Control: The Festo VSNC-F-B52-D-G14-F8-1B2 solenoid valve offers reliable 5/2-way operation for precise control in various industrial applications.
- 2Robust Construction: Built with durable aluminum alloy housing and high-alloyed stainless steel screws, ensuring long-lasting performance in demanding environments.
- 3Wide Operating Range: Compatible with operating pressures from 1.5 to 10 bar and temperatures between -20°C to 60°C, making it versatile for diverse applications.
- 4Efficient Flow Rate: Delivers a standard nominal flow rate of 1350 L/min, ideal for high-demand pneumatic systems.
- 5Compliance with Standards: Meets VDI/VDE 3845 standards and is certified for hazardous areas (ATEX, IECEx), ensuring safety and reliability in critical operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1350l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
Operating pressure | 1.5bar 10bar | Structural design | Piston gate valve |
Certification | c UL us - Recognized (OL) | Certificate issuing authority | DNVGL-TAA000011J |
Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991005 |
Lap | Overlap | Signal status display | With accessories |
b-value | 0.4 | C value | 5.6l/sbar |
Changeover time | 11ms | Duty cycle | 100% |
Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
Product weight | 440g | Electrical connection | 3-pin Form B Plug As per industrial standard (11 mm) |
Type of mounting | With through-hole | Venting hole connection | Not ducted |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | NAMUR connection diagram |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 577296 |
Specifications may be subject to change without notice
