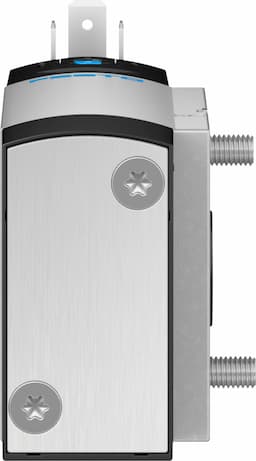

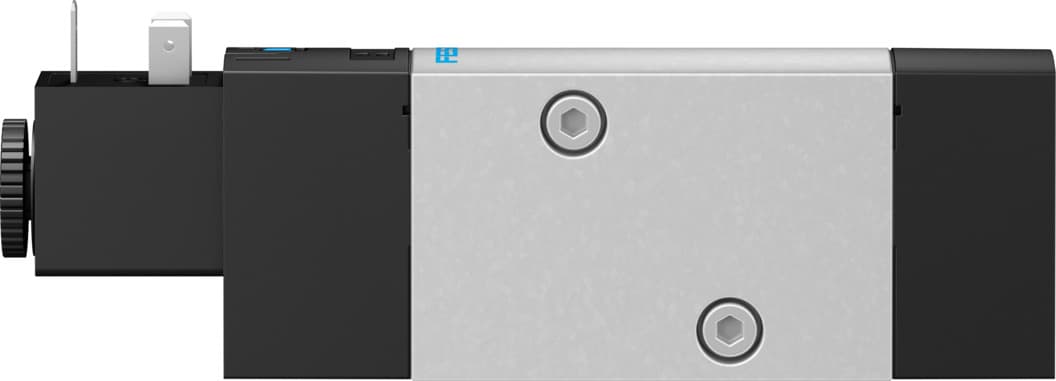

Product Model
vsnc-fc-m52-md-g14-f8-1b2
Selling Points
- 11250 l/min standard nominal flow rate.
- 25/2 or 3/2-way operation, adaptable to various applications.
- 332 mm width, designed for robust performance.
- 42.5 to 10 bar operating pressure.
- 5Mechanical spring reset and soft sealing principle for reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2 or 3/2 switchable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1250l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
Certificate issuing authority | DNVGL-TAA000011J | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | VDI/VDE 3845 (NAMUR) |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991831 | Lap | Overlap |
Signal status display | With accessories | b-value | 0.4 |
C value | 5.2l/sbar | Standard nominal flow rate, exhaust air return 4->3 | 110l/min |
Switching time off | 48ms | On switching time | 11ms |
Duty cycle | 100% | Coil characteristics | 24 V DC: 3.3 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | Product weight | 380g |
Electrical connection | 3-pin Form B Plug As per industrial standard (11 mm) | Type of mounting | With through-hole |
Venting hole connection | Not ducted | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
Pneumatic connection 4 | NAMUR connection diagram | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 577295 |
Specifications may be subject to change without notice
