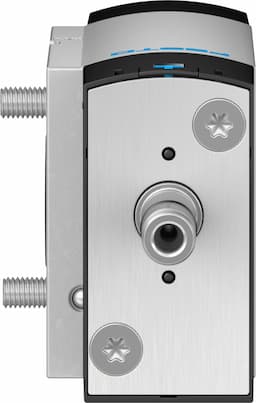

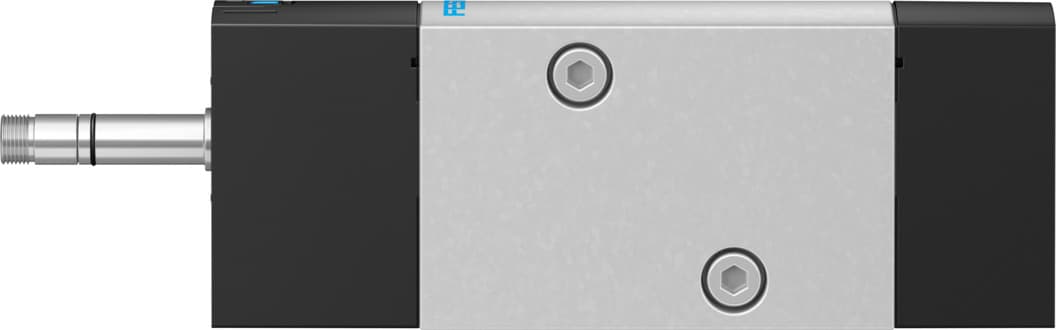

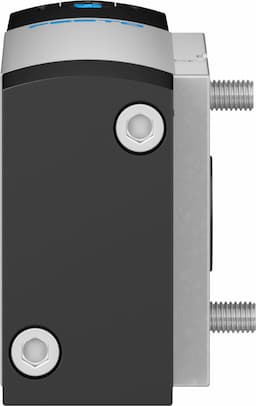

Product Model
vsnc-fc-m52-md-n14-fn-1a1-ex4-a
Selling Points
- 1Flexible Valve Function: Switch between 5/2 and 3/2 valve functions for versatile control.
- 2Electrical Actuation: Reliable operation with electrical actuation for precise control.
- 3High Flow Rate: Standard nominal flow rate of 1250 l/min for efficient air control.
- 4Durable Design: Constructed with wrought aluminum alloy housing and high-alloy stainless steel screws.
- 5IP65 Protection: Robust protection against dust and water, ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2 or 3/2 switchable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1250l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Piston gate valve |
Reset method | Mechanical spring | Explosion protection certification outside the EU | EPL Db (IEC-EX) EPL Ga (IEC-EX) |
Certificate issuing authority | DNVGL-TAA000011J | ATEX category gas | II 2G |
ATEX category for dust | II 2D | Type of ignition protection for gas | Ex ia IIC T6 Ga |
Type of (ignition) protection for dust | Ex t IIIC T80°C Db | Explosive ambient temperature | -40°C <= Ta <= +50°C |
Degree of protection | IP65 With plug socket as per IEC 60529 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991831 |
Lap | Overlap | Signal status display | With accessories |
b-value | 0.4 | C value | 5.2l/sbar |
Standard nominal flow rate, exhaust air return 4->3 | 110l/min | Switching time off | 92ms |
On switching time | 35ms | Duty cycle | 100% |
Max. input voltage Vi | 28 V | Max. input current Ii | 115 mA |
Permissible voltage fluctuations | +/- 10 % | Explosion prevention and protection | Observe the information on the certificate Zone 0 (IEC-EX) Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (IEC-EX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
Product weight | 530g | Electrical connection | Form A as per EN 175301-803 |
Type of mounting | With through-hole | Venting hole connection | Not ducted |
Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | NAMUR connection diagram |
Pneumatic connection 3 | 1/4 NPT | Pneumatic connection 4 | NAMUR connection diagram |
Pneumatic connection 5 | 1/4 NPT | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 577286 |
Specifications may be subject to change without notice
