Product Model

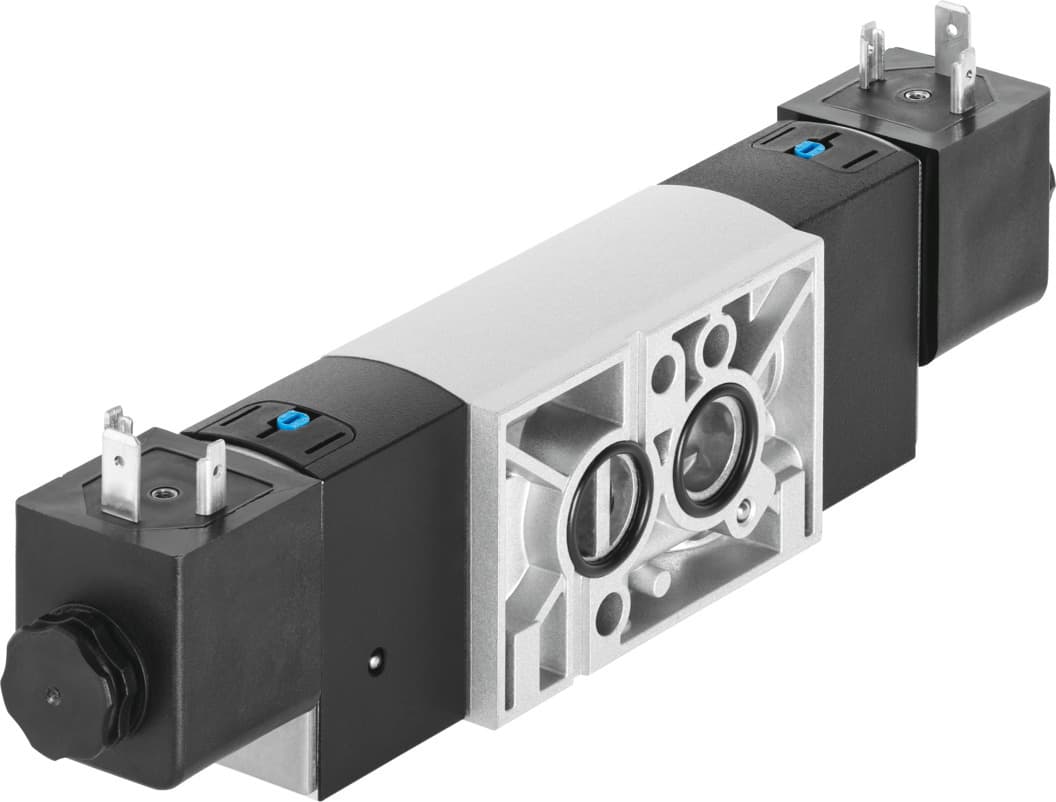

vsnc-ft-b52-d-g14-fn-1a1
Selling Points
- 1High Flow Rate: 1000 l/min standard nominal flow rate.
- 2Electrical Actuation: Reliable operation with 24V DC.
- 3Robust Design: IP65 and IP67 protection, suitable for harsh environments.
- 4Flexible Mounting: Can be mounted in any position.
- 5Compliance & Safety: Meets VDI/VDE 3845 (NAMUR) standards and ATEX zones for safe operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 1000l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
Operating pressure | 1.5bar 8bar | Structural design | Plate seat |
Certificate issuing authority | DNVGL-TAA000011J | Degree of protection | IP65 IP67 With plug socket as per IEC 60529 |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Conforms to standard | VDI/VDE 3845 (NAMUR) |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | Internal | Flow direction | Non-reversible |
Symbol | 00991005 | Lap | Underlap |
Signal status display | With accessories | b-value | 0.24 |
C value | 4.6l/sbar | Changeover time | 16ms |
Duty cycle | 100% | Coil characteristics | 24 V DC: 0.7 W |
Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -20°C 60°C |
Ambient temperature | -20°C 60°C | Product weight | 635g |
Electrical connection | Form A as per EN 175301-803 | Type of mounting | With through-hole |
Venting hole connection | Not ducted | Pneumatic connection 1 | G1/4 |
Pneumatic connection 2 | NAMUR connection diagram | Pneumatic connection 3 | G1/4 |
Pneumatic connection 4 | NAMUR connection diagram | Pneumatic connection 5 | G1/4 |
Note on materials | RoHS-compliant | Seals material | NBR |
Housing material | Wrought aluminum alloy | Material of screws | Steel, galvanized |
Manufacturer ID | 577298 |
Specifications may be subject to change without notice
