Product Model

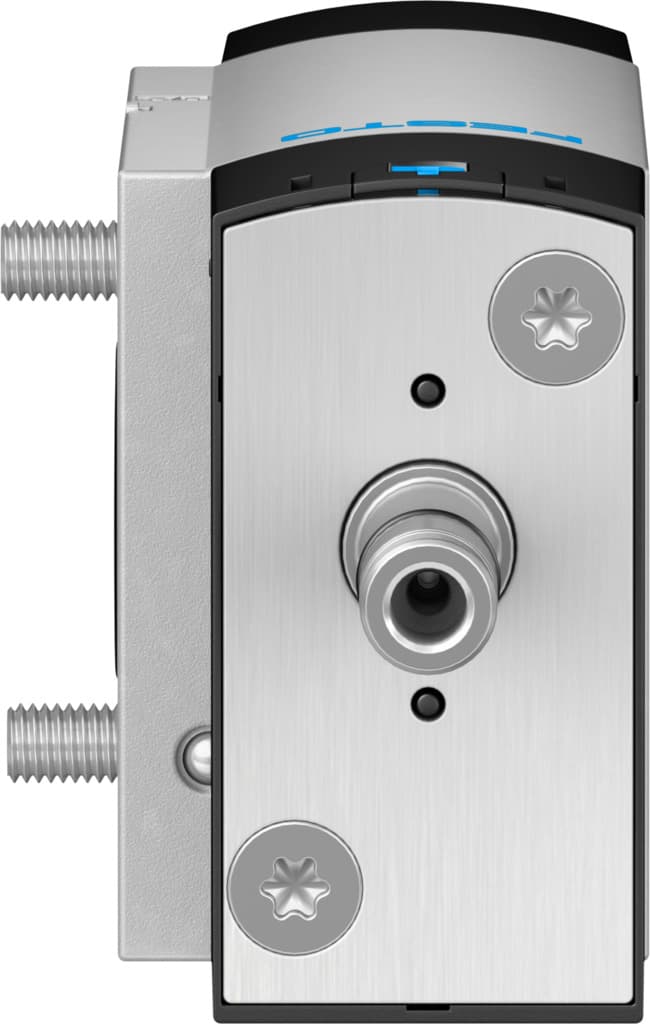

vsnc-ftc-m52-md-g14-fn-1a1
Selling Points
- 1Electrical Actuation: Easily controlled with a 24VDC operating voltage.
- 2Convertible Functionality: Operates as a 5/2-way or 3/2-way valve, offering flexibility in setup.
- 3Robust Design: Built with a poppet seat design and IP65/IP67 protection class for durability.
- 4High Flow Rate: Standard nominal flow rate of 800 l/min ensures efficient operation.
- 5Compliance with Standards: Meets VDI/VDE 3845 (NAMUR) standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2 or 3/2 switchable | Actuation type | Electrical |
Width | 32mm | Standard nominal flow rate | 800l/min |
Pneumatic working port | NAMUR connection diagram | Operating voltage | 24V DC |
Operating pressure | 2.5bar 8bar | Structural design | Plate seat |
Reset method | Mechanical spring | Certificate issuing authority | DNVGL-TAA000011J |
Degree of protection | IP65 IP67 With plug socket as per IEC 60529 | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Conforms to standard | VDI/VDE 3845 (NAMUR) | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |
Flow direction | Non-reversible | Symbol | 00991831 |
Lap | Underlap | Signal status display | With accessories |
b-value | 0.15 | C value | 3.96l/sbar |
Standard nominal flow rate, exhaust air return 4->3 | 110l/min | Switching time off | 120ms |
On switching time | 16ms | Duty cycle | 100% |
Coil characteristics | 24 V DC: 0.7 W | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Temperature of medium | -20°C 60°C | Ambient temperature | -20°C 60°C |
Product weight | 495g | Electrical connection | Form A as per EN 175301-803 |
Type of mounting | With through-hole | Venting hole connection | Not ducted |
Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | NAMUR connection diagram |
Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | NAMUR connection diagram |
Pneumatic connection 5 | G1/4 | Note on materials | RoHS-compliant |
Seals material | NBR | Housing material | Wrought aluminum alloy |
Material of screws | Steel, galvanized | Manufacturer ID | 577297 |
Specifications may be subject to change without notice
