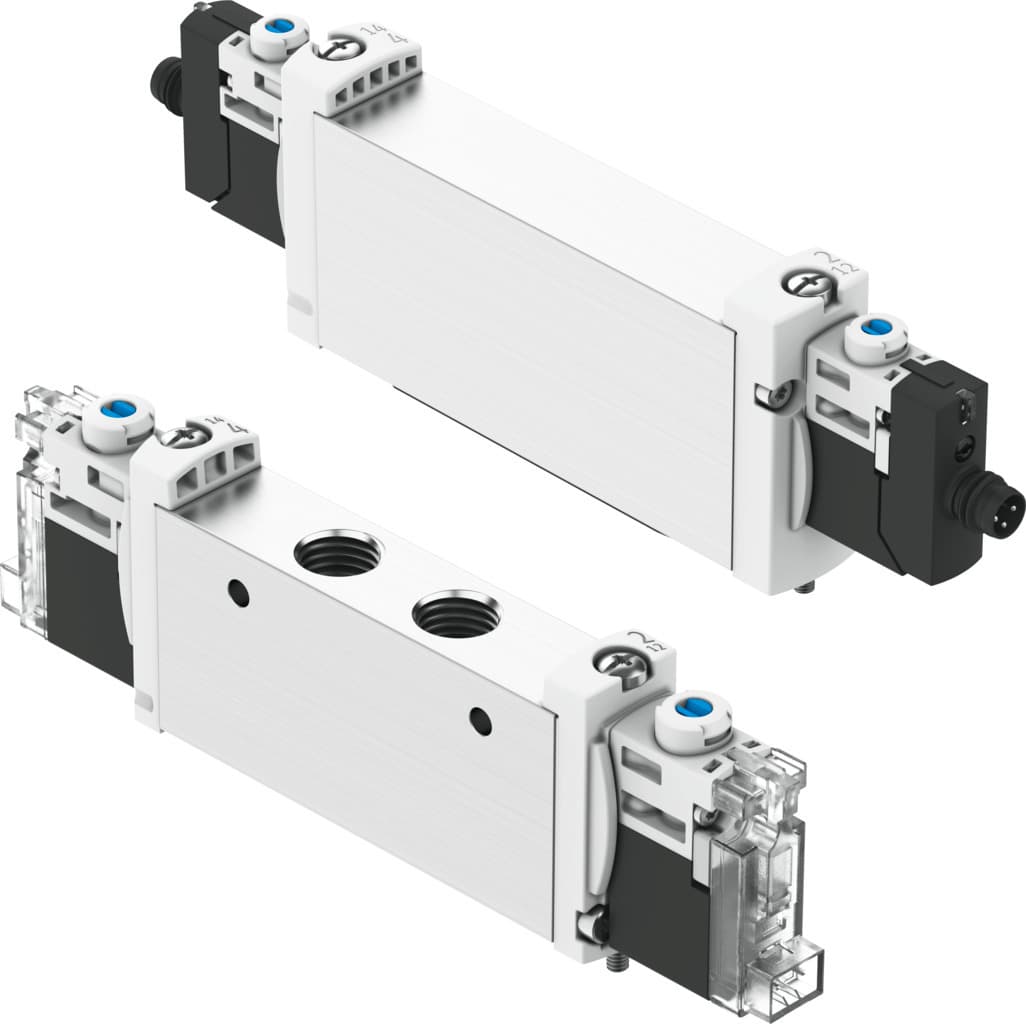

Product Model
vuvg
Selling Points
- 1High flow rates with compact design.
- 2Easy installation with captive screws and positive-locking seals.
- 3Versatile use in multiple industries like electronics, food, and packaging.
- 4Pressure range of up to 10 bar for efficient operation.
- 5Long service life with reduced maintenance costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable 2x3/2, open, monostable 2x3/2, open/closed, monostable 5/2, bistable 5/2, monostable 5/3, pressurized 5/3, exhausted 5/3, closed | Actuation type | Electrical |
Valve size | 18mm | Standard nominal flow rate | 90l/min 1380l/min |
Pneumatic working port | Flange M3 M5 M7 G1/8 G1/4 QS-3 QS-4 QS-6 QS-8 QS-10 QS-5/32 QS-1/8 QS-3/16 QS-1/4 QS-5/16 QS-3/8 | Operating voltage | 12V DC 24V DC 5V DC |
Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve Piston slide with sealing ring |
Reset method | Mechanical spring Pneumatic spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions To UK instructions for electrical equipment |
Degree of protection | IP40 IP65 With plug socket | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
Pilot air supply port | External Internal | Lap | Overlap Indefinite overlap |
Duty cycle | 100% | Permissible voltage fluctuations | +/- 10 % |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Corrosion resistance class (CRC) | 0 - No corrosion stress 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L VDMA24364 zone III | Cleanroom class | Class 5 according to ISO 14644-1 |
Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
Electrical connection | Via electrical sub-base | Type of mounting | Optionally: On terminal strip With through-hole |
Note on materials | RoHS-compliant | Seals material | HNBR NBR |
Housing material | Wrought aluminum alloy | Manufacturer ID | 564212 |
Specifications may be subject to change without notice
