Product Model
vuvs-l30-p53c-md-g38-f8
Selling Points
- 1High Flow Rate: 2000 l/min pneumatic working port for efficient operation.
- 2Robust Design: Compact and durable, suitable for various mounting options.
- 3Electric Actuation: Easy to control with 24V DC operating voltage.
- 4Mechanical Spring Reset: Reliable reset method ensures consistent valve operation.
- 5IP65 Protection: With plug socket, providing a high degree of protection against dust and water.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, closed | Actuation type | Electrical |
Valve size | 31mm | Standard nominal flow rate | 2000l/min |
Pneumatic working port | G3/8 | Operating pressure | 2.5bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNVGL-TAA000011J | Nominal width | 8.9mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | Internal |

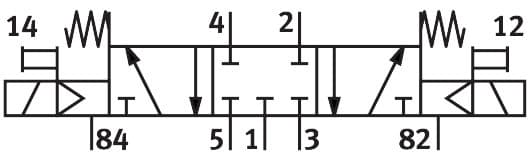

Flow direction | Non-reversible | Symbol | 00991033 |
Lap | Overlap | b-value | 0.4 |
C value | 8.9l/sbar | Switching time off | 76ms |
On switching time | 17ms | Changeover time | 39ms |
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 60°C | Product weight | 461g |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Die-cast aluminum Painted |
Piston slide material | Wrought aluminum alloy | Material of screws | Steel, nickel-plated |
Manufacturer ID | 575616 |
Specifications may be subject to change without notice
