Product Model
vuvs-l30-p53e-mzd-g38-f8
Selling Points
- 1High Flow Rate: 1600 l/min standard nominal flow rate for efficient operation.
- 2Robust Construction: Made with die-cast aluminum housing and nickel-plated steel screws for durability.
- 3Soft Sealing Principle: Ensures reliable sealing with HNBR and NBR seals.
- 4Pilot-Controlled Operation: External pilot air supply allows for precise control and reversibility.
- 5Compliant with Safety Standards: c UL us - Recognized (OL) and DNVGL-TAA000011J certified for maritime applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/3, exhausted | Actuation type | Electrical |
Valve size | 31mm | Standard nominal flow rate | 1600l/min |
Pneumatic working port | G3/8 | Operating pressure | -0.9bar 10bar |
Structural design | Piston gate valve | Reset method | Mechanical spring |
Certification | c UL us - Recognized (OL) | Maritime classification | See certificate |
Certificate issuing authority | DNVGL-TAA000011J | Nominal width | 8.1mm |
Exhaust air function | With flow control option | Sealing principle | Soft |
Mounting position | Any | Manual override | Detenting Non-detenting |
Type of control | Pilot-controlled | Pilot air supply port | External |

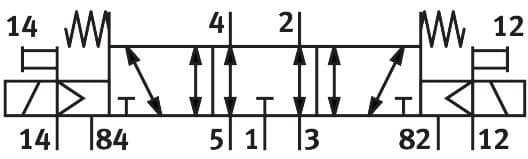

Flow direction | Reversible | Symbol | 00991032 |
Lap | Overlap | Pilot pressure MPa | 0.25MPa 1MPa |
Pilot pressure | 2.5bar 10bar | b-value | 0.4 |
C value | 7.1l/sbar | Switching time off | 74ms |
On switching time | 20ms | Changeover time | 36ms |
Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 60°C | Product weight | 461g |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | G1/8 | Pilot air port 14 | G1/8 |
Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR | Housing material | Die-cast aluminum Painted |
Piston slide material | Wrought aluminum alloy | Material of screws | Steel, nickel-plated |
Manufacturer ID | 575631 |
