Product Model
vuvs-lt20-b52-zd-g18-f7
Selling Points
- 1Robust Design: Built with die-cast aluminum housing and soft sealing principle for durability.
- 2Easy Handling: Compact size (21 mm) and easy-to-use manual override for simplified operation.
- 3High Flow Rate: Standard nominal flow rate of 500 l/min for efficient pneumatic control.
- 4Versatile Applications: Suitable for various applications with operating pressure range of 1.5 to 10 bar.
- 5Compliance and Certifications: Meets RoHS compliance and certified by c UL us – Recognized (OL).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, bistable | Actuation type | Electrical |
Valve size | 21mm | Standard nominal flow rate | 500l/min |
Pneumatic working port | G1/8 | Operating pressure | 1.5bar 10bar |
Structural design | Plate seat | Certification | c UL us - Recognized (OL) |
Nominal width | 5mm | Exhaust air function | With flow control option |
Sealing principle | Soft | Mounting position | Any |
Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
Pilot air supply port | External | Flow direction | Non-reversible |

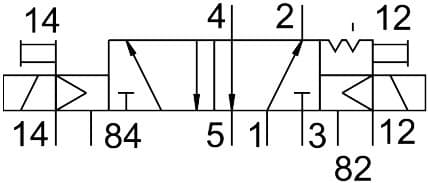

Symbol | 00995755 | Lap | Underlap |
Pilot pressure MPa | 1.5MPa 10MPa | Pilot pressure | 15bar 100bar |
b-value | 0.27 | C value | 2.1l/sbar |
Changeover time | 8ms | Max. positive test pulse with 0 signal | 1900μs |
Max. negative test pulse on 1 signal | 2700μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 60°C | Product weight | 181g |
Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
Pilot exhaust air port 82 | M5 | Pilot exhaust air port 84 | M5 |
Pilot air port 12 | M5 | Pilot air port 14 | M5 |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
Seals material | HNBR NBR TPE-U(PU) | Housing material | Die-cast aluminum Painted |
Material of screws | Steel, galvanized | Manufacturer ID | 577497 |
Specifications may be subject to change without notice
