Product Model

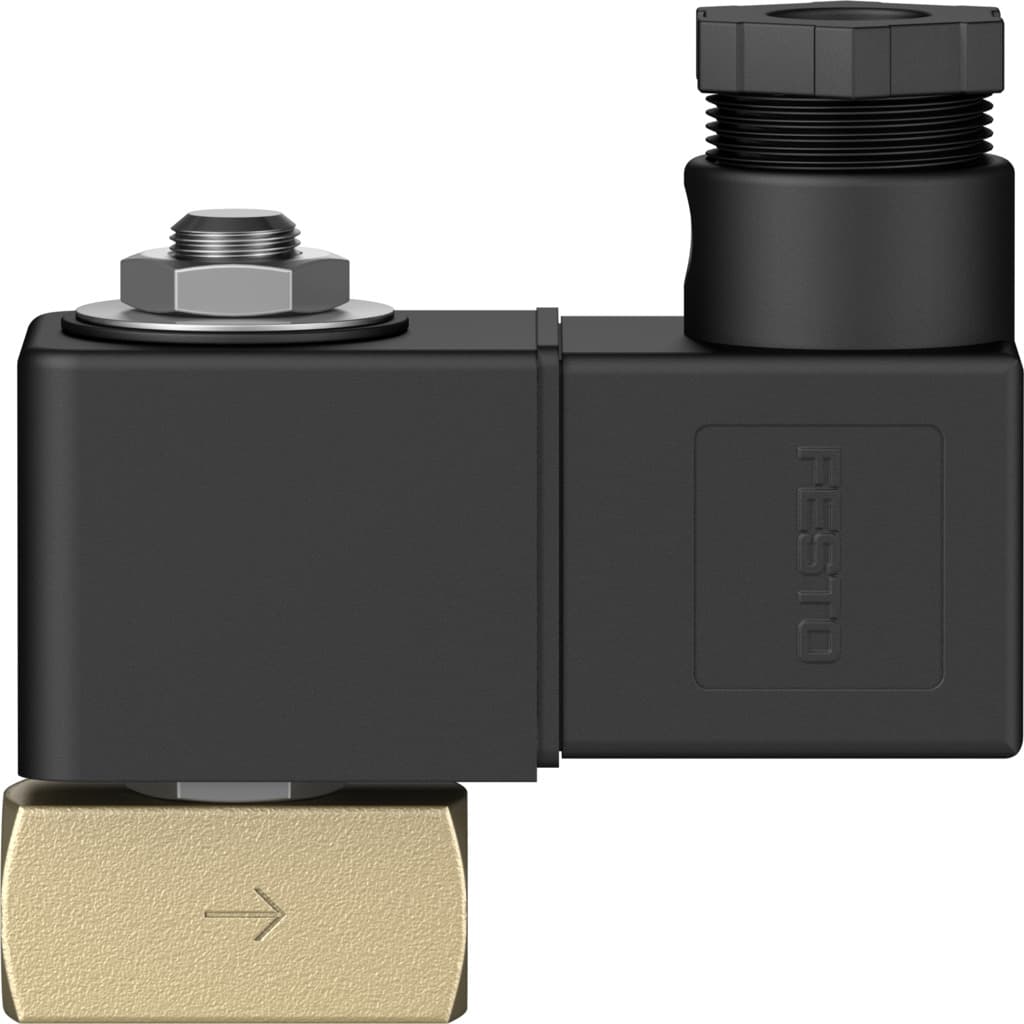

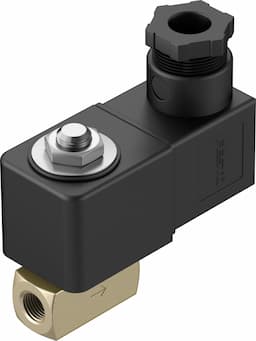

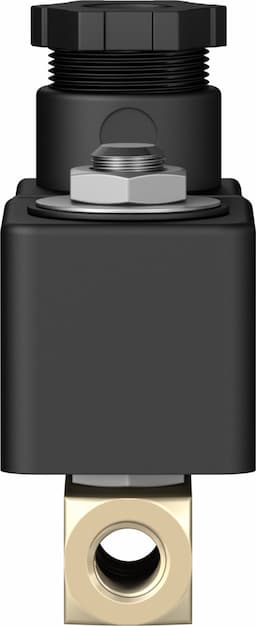

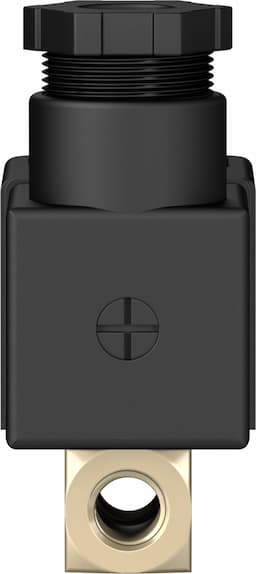

vzwd-l-m22c-m-g18-15-v-1p4-30
Selling Points
- 1The VZWD-L-M22C-M-G18-15-V-1P4-30 solenoid valve offers precise control over fluid flow, ensuring reliable operation in various industrial applications.
- 2Designed for high-performance applications, this valve features a robust solenoid coil and durable construction, ensuring long-lasting operation.
- 3Available in various nominal sizes (10, 15, 20, 25 mm) and materials (brass and high-alloy stainless steel), this valve caters to diverse industrial needs.
- 4With a switching time of 8 ms for air on and 25 ms for air off, this valve ensures efficient operation and quick response times.
- 5Equipped with electrical connections and compatible with various media types, including inert gases, water, and mineral oil, this valve offers comprehensive connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Directly controlled poppet valve | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Type of mounting | Line installation | Fitting connection | G1/8 |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 1.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 50 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 24 V DC: 6.8 W |
Insulation class | H | Permissible voltage fluctuations | +/- 10 % |
Duty cycle | 100% | Reset method | Mechanical spring |
Type of control | Direct | Symbol | 00992979 |
Medium pressure | 0psi 435psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 0.09m3/h |
Standard nominal flow rate | 95l/min | On switching time | 25ms |
Switching time off | 10ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Brass |
Material number of housing | CW614N | Seals material | FPM |
Product weight | 300g | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 1491826 |
Specifications may be subject to change without notice
