Product Model

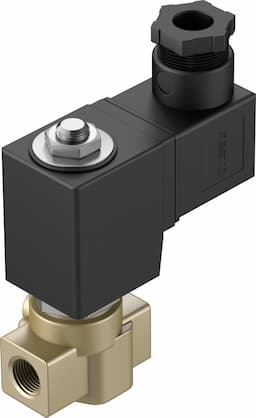

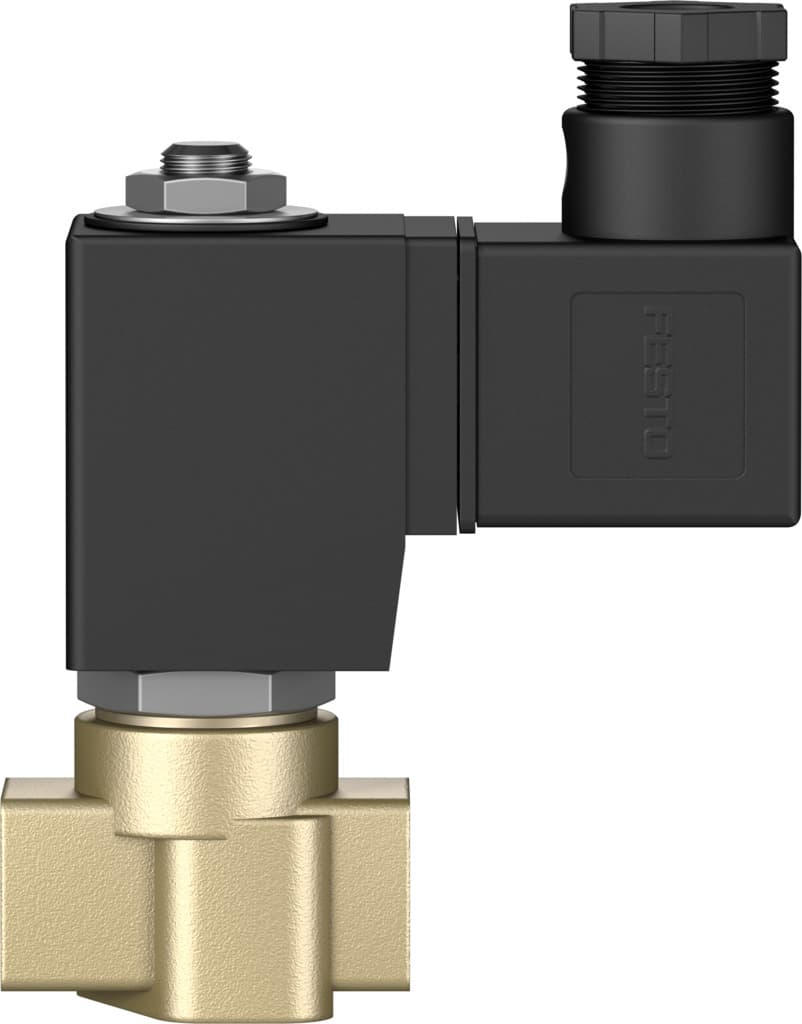

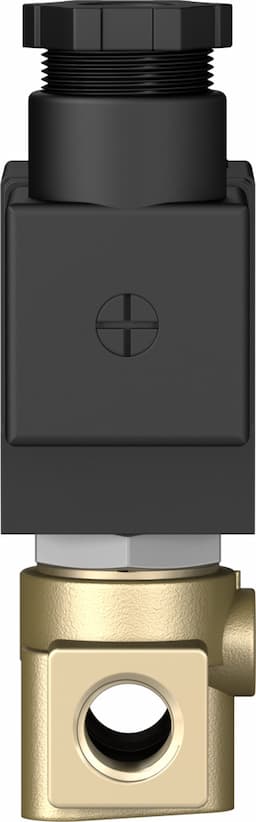

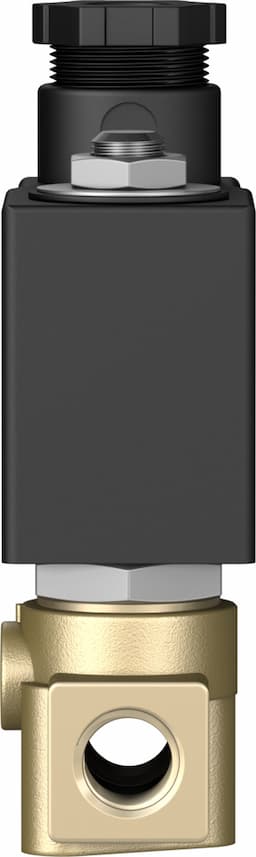

vzwd-l-m22c-m-g18-25-v-1p4-22
Selling Points
- 1The Festo VZWD-L-M22C-M-G18-25-V-1P4-22 solenoid valve is rated for 22 bar, ensuring it can handle high-pressure applications with ease.
- 2This 2/2-way, single solenoid valve features a compact design with a G1/8 process connection, making it ideal for space-constrained automation systems.
- 3With a 24VDC operating voltage, this solenoid valve provides reliable operation in various industrial settings, ensuring consistent performance.
- 4The VZWD-L-M22C-M-G18-25-V-1P4-22 solenoid valve is suitable for a wide range of applications, including pneumatic systems and fluid control.
- 5Enjoy free shipping on orders over $1,000 and lifetime technical support for the Festo VZWD-L-M22C-M-G18-25-V-1P4-22 solenoid valve.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Directly controlled poppet valve | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Any |
Type of mounting | Line installation | Fitting connection | G1/8 |
Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 2.5mm |
Valve function | 2/2, closed, monostable | Manual override | None |
Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
Nominal pressure of fitting PN | 100 | Pressure difference | 0psi |
Differential pressure | 0bar | Coil characteristics | 24 V DC: 11.0 W |
Insulation class | H | Permissible voltage fluctuations | +/- 10 % |
Duty cycle | 100% | Reset method | Mechanical spring |
Type of control | Direct | Symbol | 00992979 |
Medium pressure | 0psi 319psi | Max. viscosity | 22mm2/s |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
Leak rate to EN 12266-1 | A | Flow rate Kv | 0.16m3/h |
Standard nominal flow rate | 170l/min | On switching time | 20ms |
Switching time off | 18ms | Note on materials | RoHS-compliant |
LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast brass |
Material number of housing | CW617N | Seals material | FPM |
Product weight | 550g | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | Manufacturer ID | 1491835 |
Specifications may be subject to change without notice
