Product Model
vzwm-l-m22c-g1-f4
Selling Points
- 1The Festo VZWM-L-M22C-G1-F4 solenoid valve ensures reliable and efficient operation in various industrial automation applications.
- 2Built with high-quality materials, this valve offers durability and long service life, making it an excellent choice for demanding industrial environments.
- 3Designed for easy integration into existing systems, the VZWM-L-M22C-G1-F4 valve simplifies your automation setup with minimal configuration required.
- 4With precise control over fluid flow, this solenoid valve is ideal for applications requiring high accuracy and reliability.
- 5Offering a cost-effective solution without compromising on quality, the Festo VZWM-L-M22C-G1-F4 valve is an excellent value for money in industrial automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Structural design | Diaphragm valve servo-controlled | Actuation type | Electrical |
Sealing principle | Soft | Mounting position | Preferably upright |
Type of mounting | Line installation | Fitting connection | G1 |
Electrical connection | Solenoid coil type MD-... , coil can be ordered as an accessory | Nominal width | 27.5mm |
Valve function | 2/2, closed, monostable | Flow direction | Non-reversible |
Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas Water Neutral liquids | Medium pressure of liquid media | 0.5bar 6bar |
Medium pressure of gaseous media | 0.5bar 10bar | Differential pressure | 0.5bar |

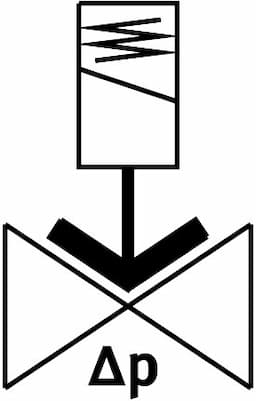

Type of control | Pilot-controlled | Symbol | 00995681 |
Max. viscosity | 22mm2/s | Temperature of medium | -10°C 60°C |
Temperature of liquid media | 5°C 50°C | Ambient temperature | -10°C 60°C |
Flow rate Kv | 10.7m3/h | Standard nominal flow rate | 11700l/min |
On switching time | 15ms | Response time "on" for liquid media | 400ms |
Switching time off | 12ms | Response time "off" for liquid media | 750ms |
b-value | 0.57 | C value | 41l/sbar |
Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364 zone III |
Housing material | Brass | Material number of housing | 2.0402 |
Seals material | NBR | Armature tube material | High-alloy steel |
Product weight | 1200g | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Max. torque for cover screw | 30Nm | Max. tightening torque for connecting thread | 350Nm |
Max. tightening torque for coil fastening | 0.5Nm | Manufacturer ID | 546150 |
Specifications may be subject to change without notice
