Product Model
ysrwj-8-14-a
Selling Points

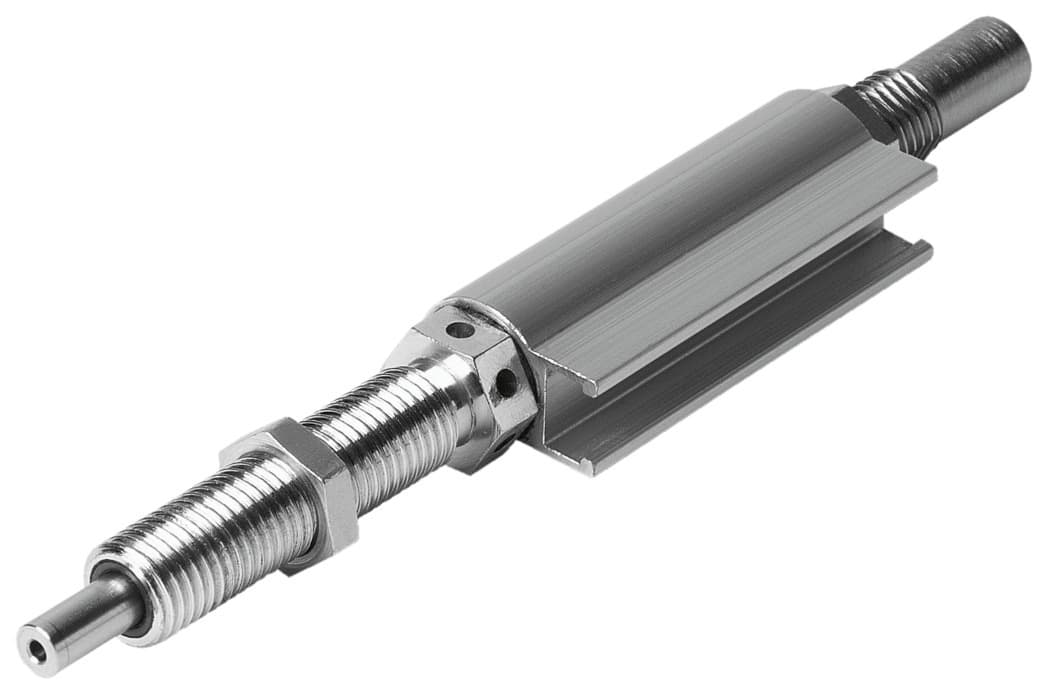

- 1High-Quality Construction: The Festo YSRW-8-14 shock absorber is built with high-alloy steel, ensuring durability and resistance to corrosion.
- 2Self-Adjusting Cushioning: This shock absorber features a self-adjusting soft characteristic curve, providing optimal cushioning and absorbing impact velocities up to 3 m/s.
- 3Versatile Mounting: The YSRW-8-14 can be mounted in any position, making it versatile for various industrial applications.
- 4Efficient Energy Absorption: With a reset time at room temperature of 0.2 seconds, this shock absorber efficiently absorbs and dissipates energy, reducing the impact on machinery.
- 5Compliant with Industry Standards: The Festo YSRW-8-14 is compliant with VDMA24364-B1/B2-L standards, ensuring it meets the highest industry standards for quality and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 8 | Stroke | 14mm |
Cushioning | Self-adjusting Soft characteristic curve | Mounting position | Any |
Precision adjustment | 0.03mm | Position sensing | For proximity sensor |
Max. impact velocity | 3m/s | Reset time at room temperature | 0.2s |
Reset time at min. ambient temperature | 1s | Mode of operation | Pushing Single-acting |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Ambient temperature | 0°C 60°C | Cushioning length | 14mm |
Max. stop force | 500N | Max. energy absorption per stroke | 3J |
Max. energy absorption per hour | 21000J | Max. residual energy | 0.02J |
Resetting force | 3.5N | Product weight | 110g |
Type of mounting | With lock nut | Seals material | NBR |
Housing material | Brass Nickel-plated | Piston rod material | High-alloy steel |
Manufacturer ID | 192966 |
Specifications may be subject to change without notice
