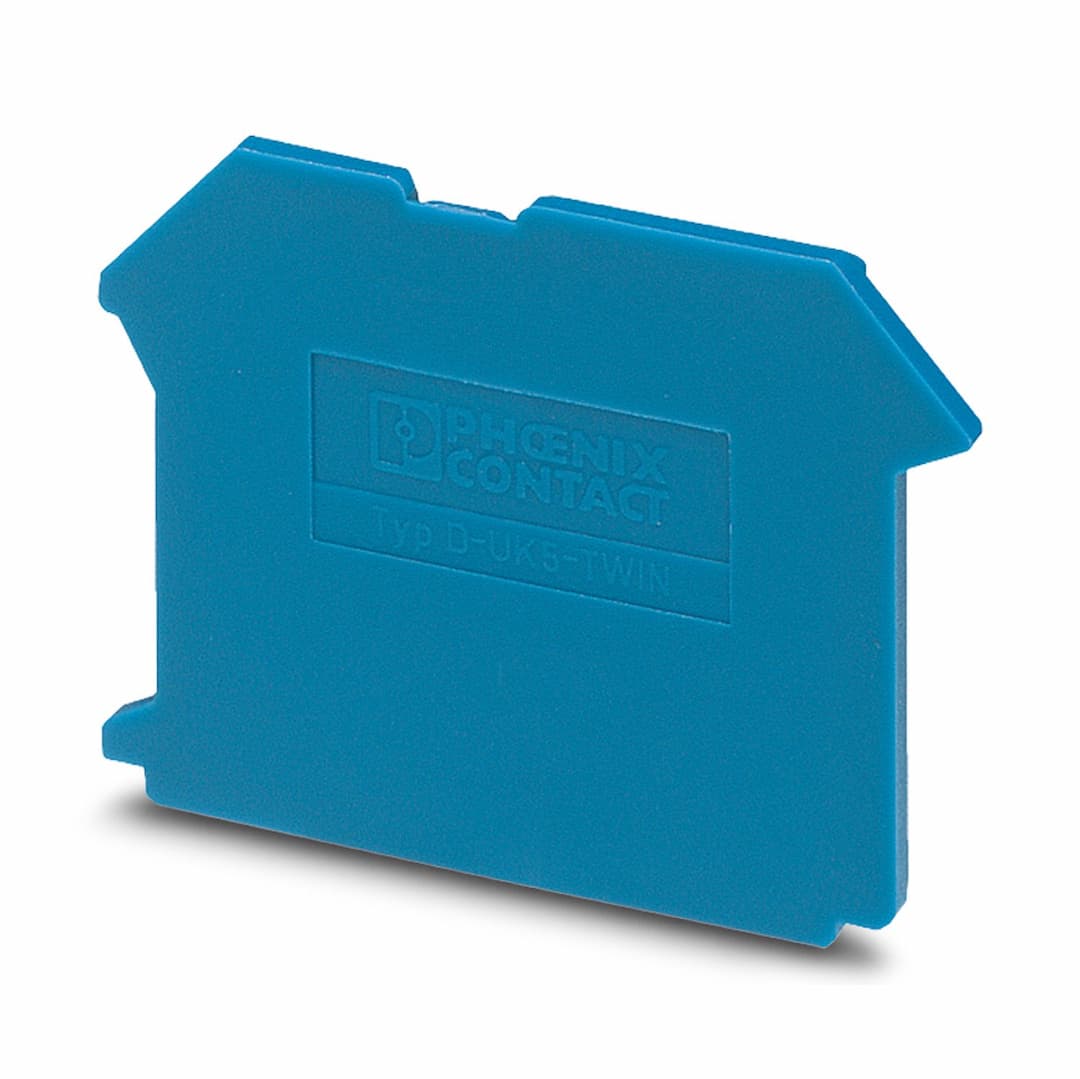

Product Model
D-UK 5-TWIN BU
Selling Points
- 1Made from high-quality PA material, ensuring long-lasting performance.
- 2Measuring 50 mm in length, 2 mm in width, and 36 mm in height, ideal for DIN rail installations.
- 3Compliant with China RoHS, ensuring environmentally friendly use.
- 4Suitable for a wide range of industrial applications, including power supplies and signal conditioners.
- 5Operates within a temperature range of -60 °C to 105 °C, making it suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | End cover | Article revision | 02 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Color | blue (RAL 5015) | Material | PA |
Flammability rating according to UL 94 | V2 | Width | 2 mm |
Height | 50.5 mm | Depth | 47 mm |
Specifications may be subject to change without notice
