Product Model

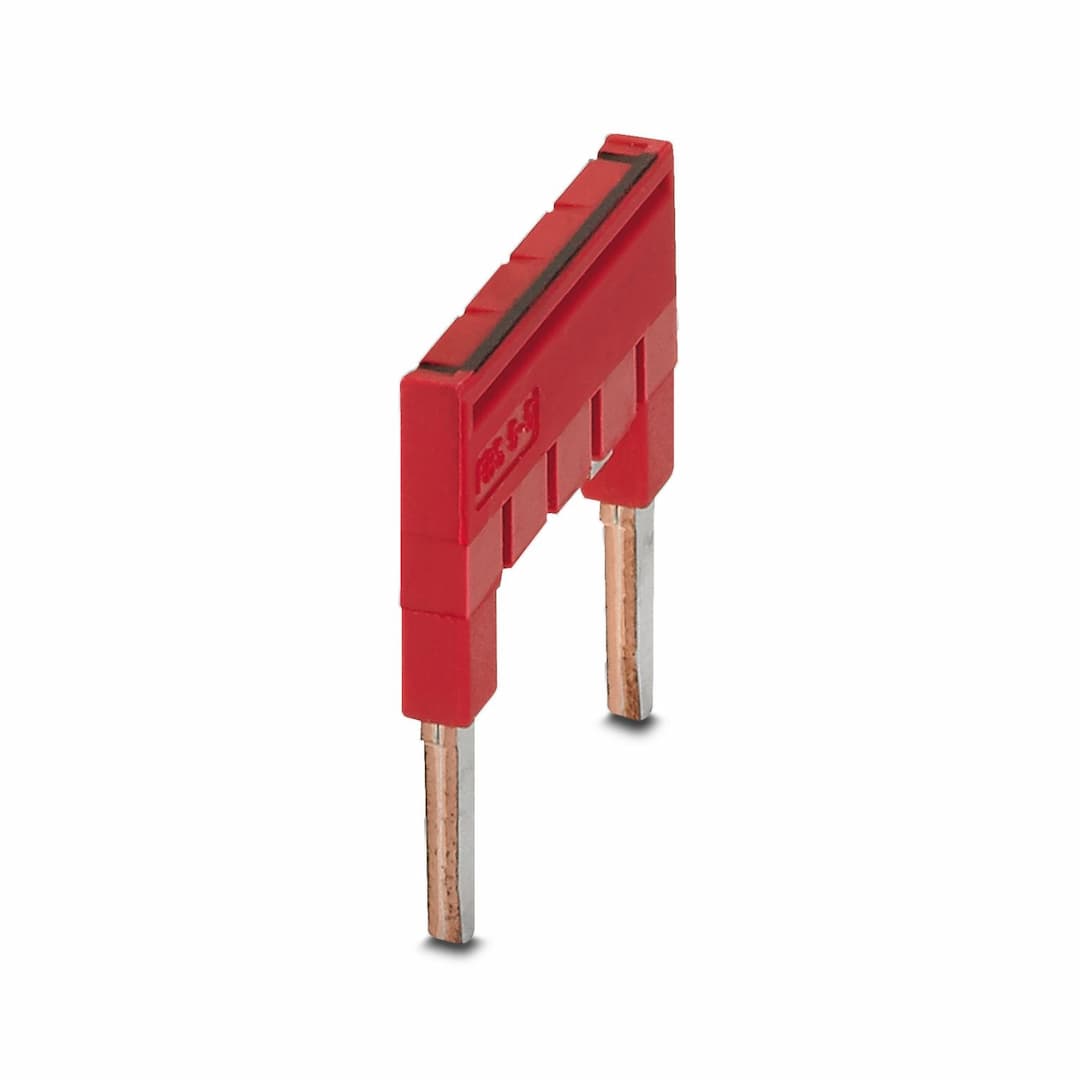

FBS 1/5-5
Selling Points
- 1Compact Design: The FBS 1/5-5 plug-in bridge is designed with a width of 24.6 mm, height of 23 mm, depth of 3 mm, and length of 23 mm.
- 2High Load Capacity: Supports a maximum load current of 24 A, ensuring reliable performance in various applications.
- 3Easy Installation: Features a pitch of 5.2 mm, making it easy to install and connect with modular terminal blocks.
- 4Durable Material: Constructed from high-quality copper material for durability and resistance to corrosion.
- 5Versatile Use: Compatible with the CLIPLINE complete system, allowing for bridging up to 50 terminal blocks in one step.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 5 |
Pitch | 5.2 mm | Article revision | 02 |
Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 24 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Pitch | 5.2 mm | Color | red (RAL 3001) |
Material | Copper | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Pin assignment | 1, 5 |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
