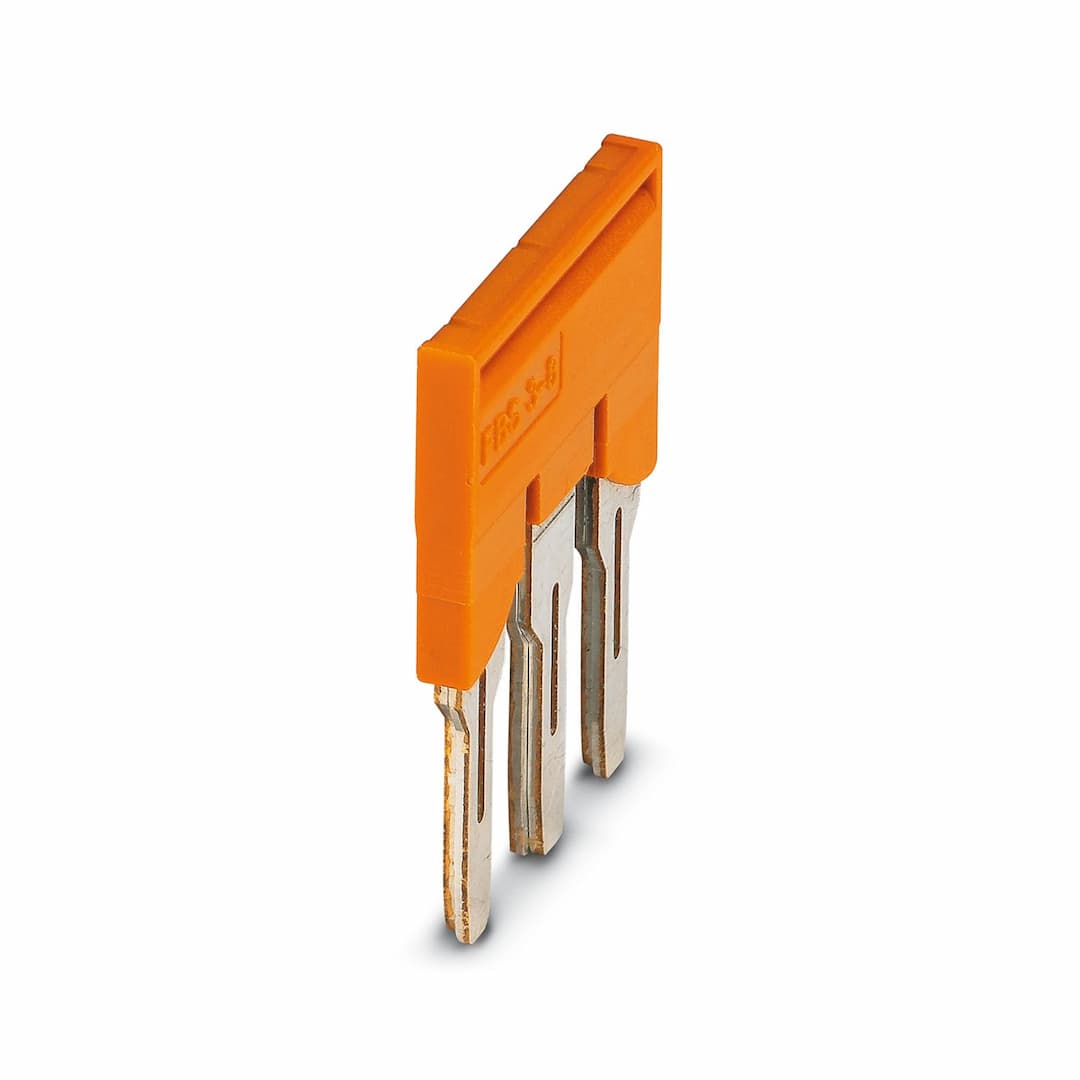

Phoenix Contact FBS 3-8 CT Plug-in Bridge - High-Quality Terminal Block Connector

Selling Points

1Efficient Terminal Block Connections: The FBS 3-8 CT plug-in bridge efficiently connects up to 50 terminal blocks in one step.
2High Load Capacity: Supports a maximum load current of 41 A, ensuring reliable performance.
3Durable Construction: Made from copper, with a flammability rating of UL 94 V0 for enhanced safety.
4Versatile Usage: Compatible with various modular terminal blocks, offering flexibility in wiring configurations.
5Environmentally Friendly: Compliant with China RoHS regulations, ensuring environmentally friendly use.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Jumper	Number of positions	3
Pitch	8.2 mm	Article revision	02
Maximum load current	41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)	Maximum load current	41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.)
Width	22.9 mm	Height	29.6 mm
Depth	29.6 mm	Pitch	8.2 mm
Color	orange (RAL 2003)	Material	Copper
Flammability rating according to UL 94	V0	Insulating material	PA
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)	Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C	Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %	Permissible humidity (storage/transport)	30 % ... 70 %
Mounting type	Plug-in mounting

Specifications may be subject to change without notice
