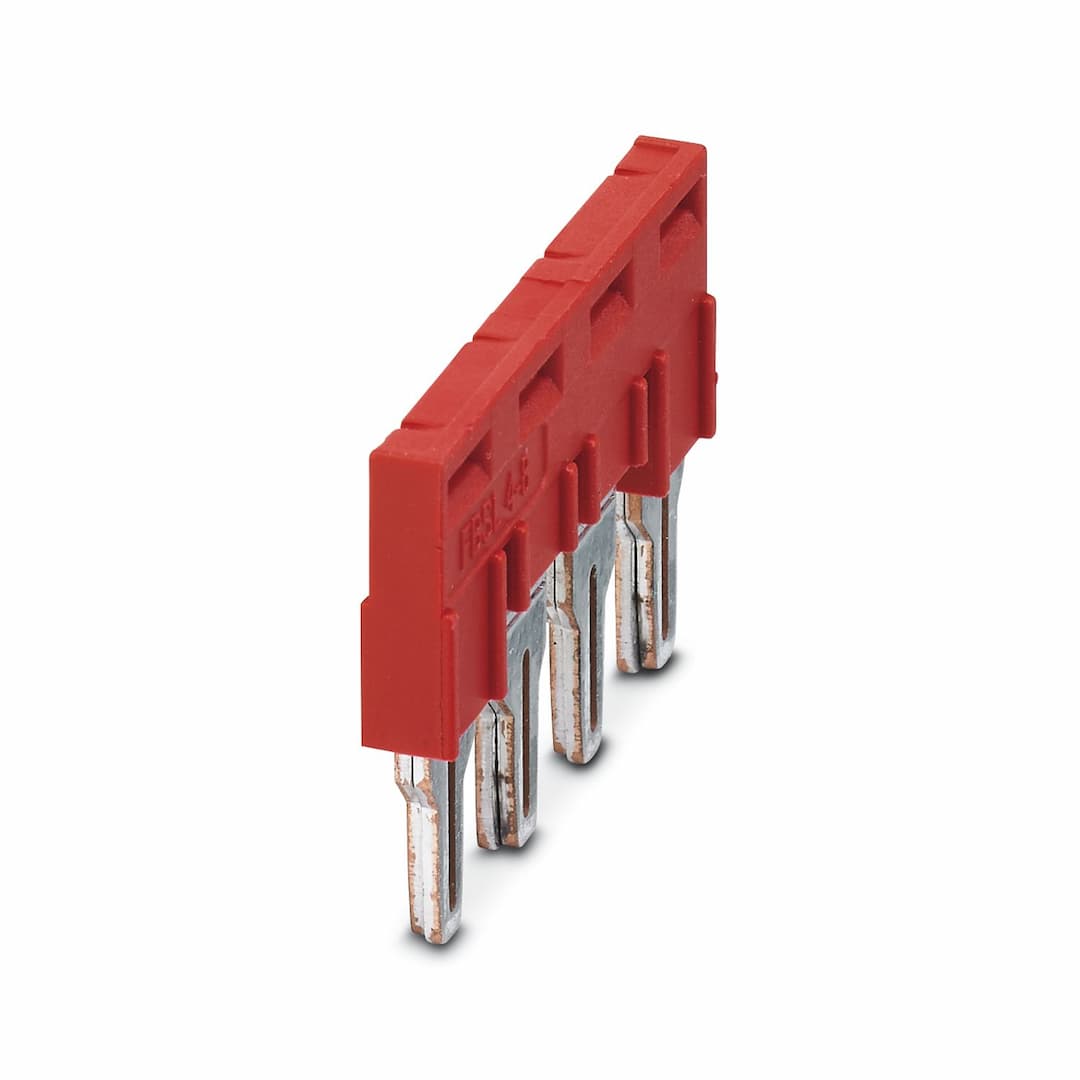

Product Model
FBSL 4-8
Selling Points
- 1Red color and copper material for durability and visibility.
- 24 positions with a pitch of 8.2 mm, perfect for bridging multiple terminal blocks.
- 3Flammability rating according to UL 94 V0, ensuring safety in electrical installations.
- 4Maximum load current of 41 A, suitable for heavy-duty applications.
- 5Environmentally friendly and compliant with China RoHS, meeting stringent environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 4 |
Pitch | 8.2 mm | Article revision | 00 |
Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 31.1 mm | Height | 20.38 mm |
Depth | 20.38 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
