Product Model

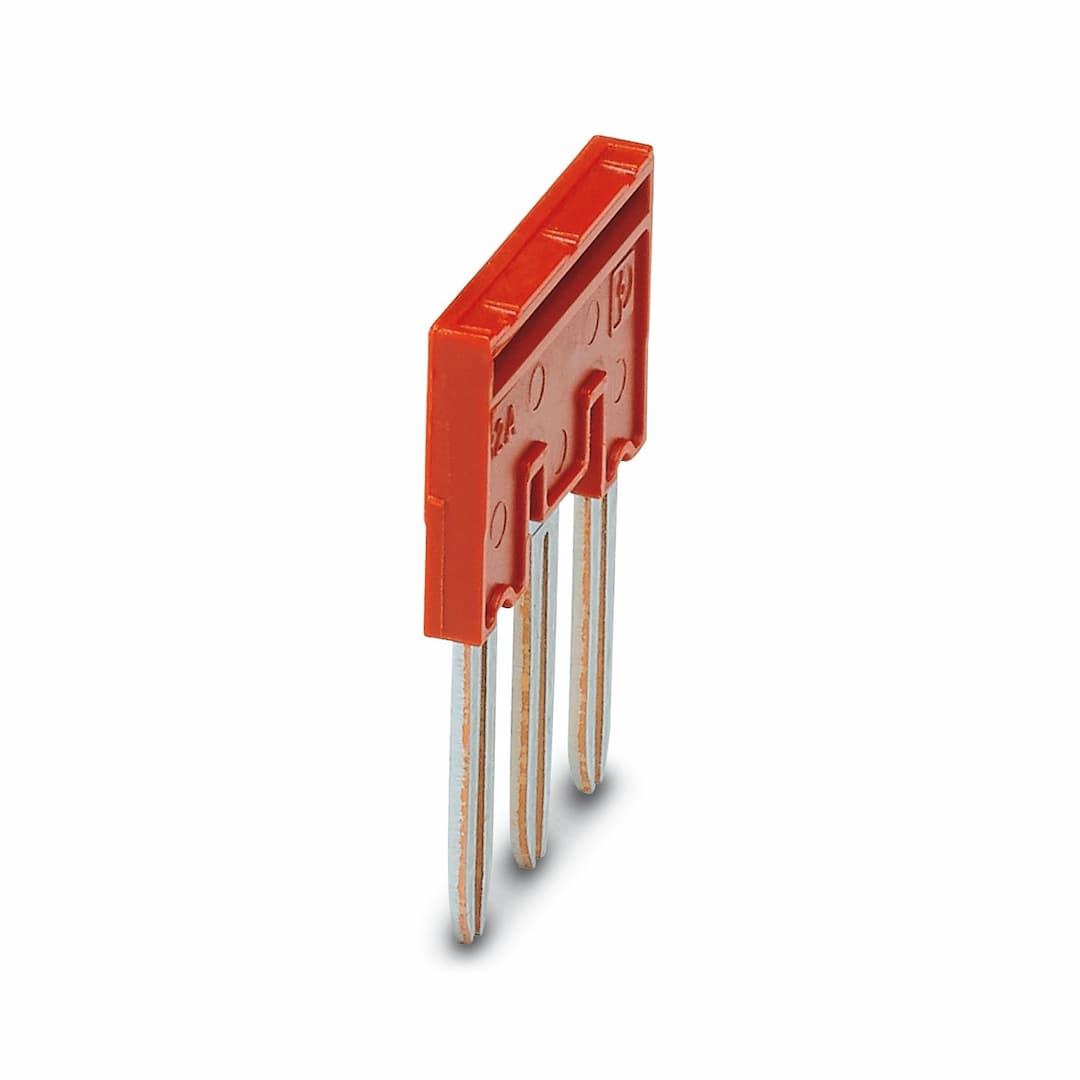

FBSR 3-8
Selling Points
- 1The FBSR 3-8 plug-in bridge is designed to be compact, measuring 22.9 mm in width and 30 mm in height.
- 2Supports up to 32 A of maximum load current, ensuring reliable electrical connections.
- 3Constructed from copper with a flammability rating of V0 according to UL 94, ensuring safety and durability.
- 4Features plug-in mounting for quick and easy installation into various terminal blocks.
- 5Clearly visible red color indicates the product's presence, making it easier to identify in complex electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Jumper | Number of positions | 3 |
Pitch | 8.2 mm | Article revision | 02 |
Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) | Maximum load current | 32 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Width | 22.9 mm | Height | 30 mm |
Depth | 30 mm | Pitch | 8.2 mm |
Color | red (RAL 3001) | Material | Copper |
Flammability rating according to UL 94 | V0 | Insulating material | PA |
Mounting type | Plug-in mounting |
Specifications may be subject to change without notice
