Product Model

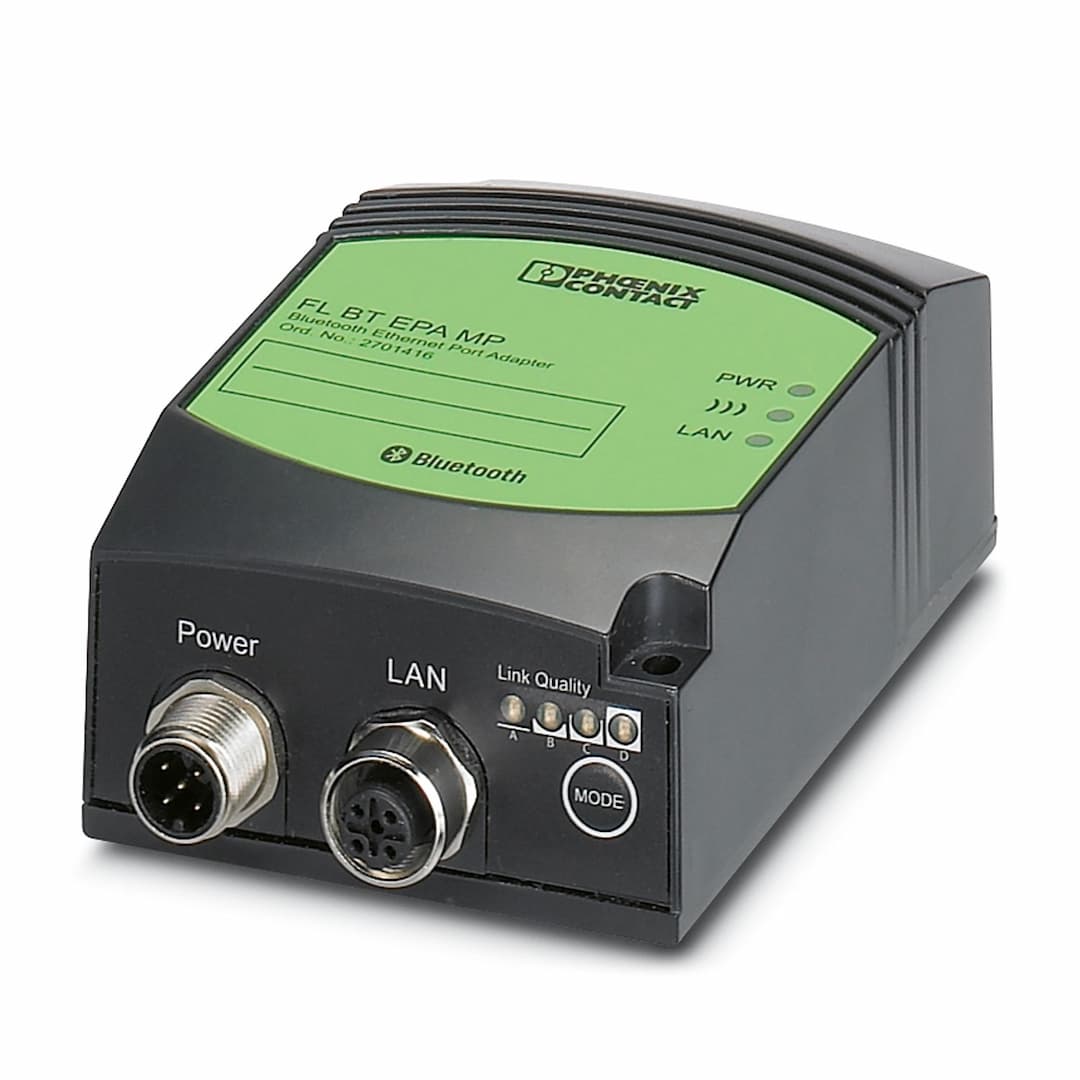

FL BT EPA MP
Selling Points
- 1Wireless Integration: Seamlessly integrate mobile or difficult-to-access automation devices into your Ethernet network.
- 2IP65 Protection: Ensures reliable operation in harsh environments with an IP65 degree of protection.
- 3Long-Range Connectivity: Supports wireless connections up to 200 meters for extensive network coverage.
- 4WLAN Coexistence: Operates parallel to WLAN networks without interference using AFH, LEM, and black channel listing.
- 5Easy Configuration: Quick startup with configuration via MODE button, web interface, or directly from a controller.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Type | Stand-Alone |
Number | 1 | Assembly note | Permanently installed |
Maximum power dissipation for nominal condition | 1.104 W | Connection method | M12 connector (A-coded, male) |
Supply voltage | 24 V DC | Supply voltage range | 9 V DC ... 30 V DC |
Supply current | 46 mA (at 24 V DC) | Current consumption | 46 mA (at 24 V DC) |
Number of inputs | 1 | Interface | Ethernet |
Number | 1 | Connection method | M12 connectors (D-coded, female) |
Number | 1 | Connection method | RSMA (male) |
Gain | 3 dBi ((2.4 GHz)) | Length | 83 mm |
Operating modes | BT access point | Configuration | Web interface, MODE button, AT commands (TCP/IP), SSC |
Automatic channel selection | FHSS, AFH | Quality of service (QoS) | Yes |
Security | 128-bit data encryption
Authentication
PIN
Non-discoverable | Wireless licenses | Europe, additional countries in the e-shop |
Country support | Belgium
Bulgaria
Denmark
Germany
Estonia
Finland
France
Greece
Great Britain
Ireland
Iceland
Italy
Japan
Canada
Latvia
Liechtenstein
Lithuania
Luxembourg
Malta
Netherlands
Norway
Austria
Poland
Portugal
Romania
Sweden
Switzerland
Slovakia
Slovenia
Spain
Czech Republic
Hungary
USA
Cyprus (rep.) | Designation | Bluetooth |
Antenna connection method | RSMA (female) | Frequency range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
Frequency band | 2.4 GHz | Wireless standard | Bluetooth 2.1 + EDR |
Transmission power | max. 12 dBm (EIRP) | Number of wireless interfaces | 1 |
Wireless modules that can be connected | 7 | Profiles supported | PAN |
Width | 66 mm | Height | 91 mm |
Depth | 34 mm | Note on dimensions | Without connections |
Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 65 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 90 % (non-condensing) | Permissible humidity (storage/transport) | 5 % ... 90 % (non-condensing) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | Mounting type | Wall mounting, optional DIN rail mounting
Wall mounting |
Assembly note | External OMNI omnidirectional antenna supplied as standard, antennas can be exchanged |
Specifications may be subject to change without notice
