Product Model

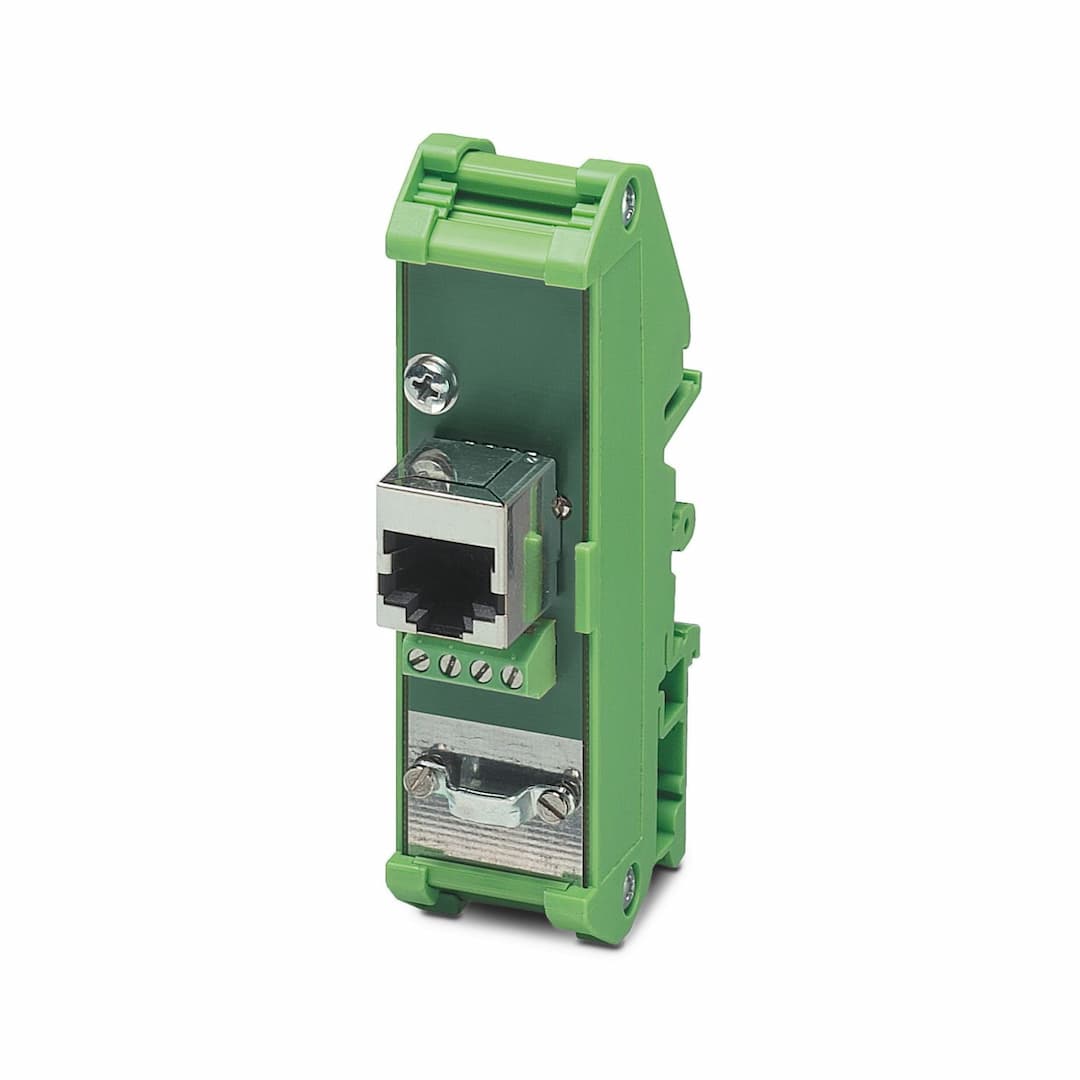

FL CAT5 TERMINAL BOX
Selling Points
- 1Efficient Ethernet Interface: Supports 10/100 Mbps Ethernet interface in accordance with IEEE 802.3.
- 2DIN Rail Mounting: Easy mounting on DIN rails for convenient installation.
- 3Safe Shield Connection: Safe shield connection to ground potential for reliable data transmission.
- 4CAT5e Compatibility: Compatible with CAT5e cables for high-speed data transfer.
- 5Industrial-Grade Build: Built for industrial use with a robust design and IP20 protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Patch panel |
MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | Article revision | 06 |
Typical current consumption | < 1 A | Serial transmission speed | 10/100 Mbps |
Connection method | Screw connection | No. of channels | 1 |
Tightening torque | 0.22 Nm ... 0.25 Nm | Pin assignment | 1:1 |
Transmission length | 100 m (including patch cables) | Single conductor/terminal point, rigid | 0.14 mm² ... 1.5 mm² |
Single-wire/terminal point, flexible | 0.14 mm² ... 1 mm² | Single-wire/terminal point, rigid AWG max. | 16 |
Single-wire/terminal point, rigid AWG min. | 26 | Connection method | RJ45 CAT5e |
No. of channels | 1 | Width | 25 mm |
Height | 90 mm | Depth | 52 mm |
Color (Housing) | green (RAL 6021) | Material (Housing) | PVC / PA |
External cable diameter | 6 mm ... 10 mm | Cable impedance | 100 Ω |
Insertion/withdrawal cycles | ≤ 2500 | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Ambient temperature (assembly) | -10 °C ... 70 °C | Permissible humidity (operation) | 25 % ... 95 % (non-condensing) |
Identification | DNV GL | Temperature | B |
Humidity | A | Vibration | A |
EMC | B | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
