Product Model
FLK 14/EZ-DR/ 60/KONFEK/S
Selling Points

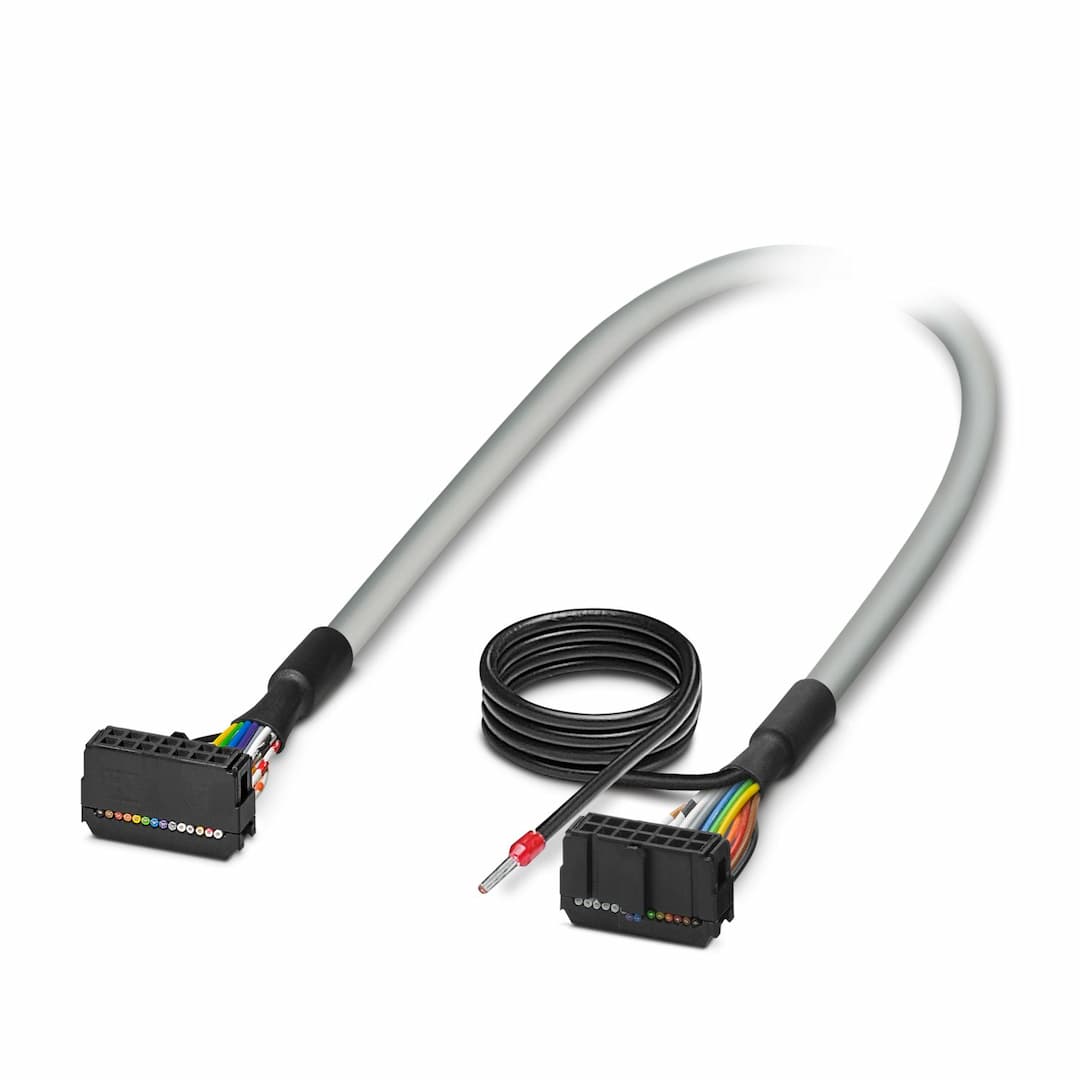

- 1Assembled Shielded Round Cable: Pre-assembled with male connector strips for easy installation.
- 214-Position IDC/FLK Socket Strips: Compatible with multiple industrial controllers like GE-FANUC and SIEMENS S7-300.
- 3High Insulation Resistance: ≥20 MΩ/km at 20°C for reliable signal transmission.
- 4Flexible Operating Temperature: -40°C to 70°C for fixed installations and -10°C to 70°C for flexible installations.
- 5Durable Construction: Tinned copper-braided shield and semi-rigid PVC outer sheath ensure long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | System cable | Article revision | 03 |
Degree of protection | IP00 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -40 °C ... 70 °C (fixed installation)
-10 °C ... 70 °C (flexible installation) | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | ≤ 2000 m | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Nominal operating mode | 100% operating factor |
Current (Per path, 50°C) | ≤ 1 A (Uncoiled, see derating) | Current (Per path, 70°C) | ≤ 0.6 A (Uncoiled, see derating) |
Suitable I/O card | IC693 ALG220
IC693 ALG221
IC693 ALG222
IC693 ALG223
IC693 ALG390
IC693 ALG391
IC693 ALG392
IC693 ALG442
IC693 MDL241
IC693 MDL634
IC693 MDL645
IC693 MDL646
IC693 MDL732
IC693 MDL733
IC693 MDL740
IC693 MDL741
IC693 MDL742 | Suitable I/O card | CPU 312C
CPU 313C-2DP
CPU 314C-2PtP
6ES7321-1BH50-0AA0
6ES7321-7BH01-0AB0
6ES7321-1BH02-0AA0
6ES7321-1BL00-0AA0
6ES7322-1BH01-0AA0
6ES7322-8BF00-0AB0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
6ES7331-7KF02-0AB0
6ES7331-7KB02-0AB0
6ES7331-7NF00-0AB0
6ES7331-7PF01-0AB0
6ES7331-7PF11-0AB0
6ES7332-5HD01-0AB0
6ES7332-5HB01-0AB0
6ES7332-7ND02-0AB0
6ES7334-0CE01-0AA0
6ES7334-0KE00-0AB0
6ES7335-7HG01-0AB0
CPU 314C-2DP
6ES7338-4BC01-0AB0
6ES7350-1AH03-0AE0
6ES7350-2AH01-0AE0
6ES7351-1AH01-0AE0
6ES7352-1AH02-0AE0
6ES7353-1AH01-0AE0
6ES7354-1AH01-0AE0
6ES7355-0VH10-0AE0
6ES7355-1VH10-0AE0
6ES7357-4AH01-0AE0
6ES7321-7BH01-0AB0
6ES7331-7HF01-0AB0
6ES7321-1BH10-0AA0
6ES7322-1BH10-0AA0
CPU 313C
CPU 313C-2PtP |
Suitable I/O card | 1756-IN16
1756-IA8D
1756-IA16
1756-IB16
1756-IC16
1756-OB16E
1756-IF6I
1756-IR6I
1756-IT6I
1756-OF4
1756-OF6CI
1756-OF8
1756-PLS | Suitable I/O card | 1746 OB16
1746 OV16
1746 OG16
1746 IA16
1746 IB16
1746 ITB16
1746 IN16
1746 IV16
1746 ITV16
1746 IG16 |
Suitable I/O card | TC-IDX 081
TC-IDA 161
TC-IAH 061
TC-IXR 061
TC-IXL 061
TC-OAH 061
TC-OAV 061
TC-OAV 081 | Suitable I/O card | DDI 353
DDI 853
DAI 353
DAI 453
DDO 353 |
Cable length | 0.6 m | Number of positions | 14 |
Shielded | yes | Cable type | 14X0.14 [PVC] |
Conductor type | Assembled shielded round cable | Conductor structure signal line | 7x 0.16 mm |
AWG signal line | 26 | Conductor cross section | 14x 0.14 mm² |
Wire diameter incl. insulation | 1 mm ±0.03 mm | External cable diameter | 6.70 mm ±0.4 mm |
Outer sheath, material | Semi-rigid PVC | External sheath, color | gray |
Conductor material | Tin-plated Cu litz wires | Cable resistance | ≤ 145 Ω/km (20 °C) |
Insulation resistance | ≥ 20 MΩ*km (20 °C) | Smallest bending radius, fixed installation | 71 mm |
Smallest bending radius, movable installation | 128 mm | Dynamic load capacity (bending) | Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter) |
Halogen-free | no | Flame resistance | IEC 60332-1-2 (raw cable)
VDE 0842, Part 332-1-2 (raw cable)
IEC 60332-3-22 (raw cable)
UL VW-1
CSA FT-1 |
Resistance to oil | can withstand occasional splashes (raw cable) | Cable type | Cable for one module |
Connection in acc. with standard | IEC 60603-13 (in compliance) | Connection method | IDC/FLK socket strip |
Number of connections | 1 | Number of positions | 14 |
Insertion/withdrawal cycles | > 50 | Pitch | 2.54 mm |
Connection in acc. with standard | IEC 60603-13 (in compliance) | Connection method | IDC/FLK socket strip |
Number of connections | 1 | Number of positions | 14 |
Note | The braided shield is routed to a separate cable end.
The separate cable end is approximately 0.5 m long (H05V-K 1 mm², black) | Insertion/withdrawal cycles | > 50 |
Pitch | 2.54 mm | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
