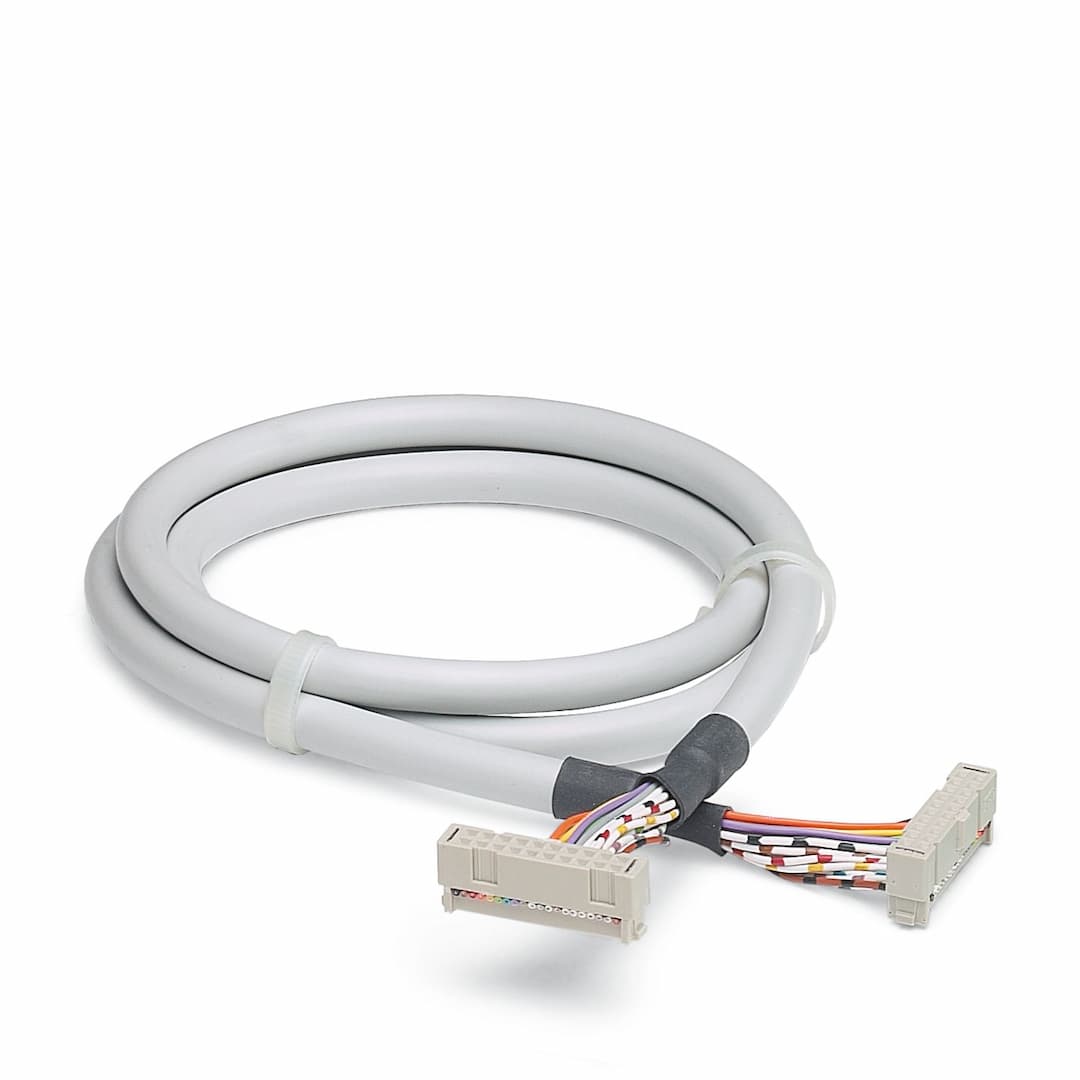

Phoenix Contact FLK 16/EZ-DR/ 30/KONFEK

Selling Points

  • 1High-Quality Shielded Round Cable: Assembled shielded round cable with a braided shield for superior signal integrity.
  • 2Flexible Installation: Operates between -10 °C to 70 °C for flexible installations and -40 °C to 70 °C for fixed installations.
  • 3Excellent Electrical Properties: Supports up to 30 V AC and 60 V DC, with a current rating of ≤ 1 A at 50 °C.
  • 4Durable Construction: Semi-rigid PVC outer sheath with a gray color, ensuring durability and easy identification.
  • 5Versatile Applications: Ideal for various industrial applications, including automation and control systems, due to its high reliability and performance.
Product Details
FLK 16/EZ-DR/ 30/KONFEK
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
System cable
Operating voltage
≤ 50 V AC
Operating voltage (DC)
≤ 60 V DC
Cable length
0.3 m
Number of positions
16
Shielded
no
Cable type
16X0.14 [PVC]
Conductor type
Round cable set
Conductor structure signal line
7x 0.16 mm
AWG signal line
26
Conductor cross section
16x 0.14 mm²
Wire diameter incl. insulation
1 mm ±0.03 mm
External cable diameter
6.80 mm ±0.4 mm
Outer sheath, material
Semi-rigid PVC
External sheath, color
gray
Conductor material
Tin-plated Cu litz wires
Cable resistance
≤ 145 Ω/km (20 °C)
Insulation resistance
≥ 20 MΩ*km (20 °C)
Smallest bending radius, fixed installation
58 mm
Smallest bending radius, movable installation
108 mm
Dynamic load capacity (bending)
Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-free
no
Flame resistance
IEC 60332-1-2 (raw cable) VDE 0842, Part 332-1-2 (raw cable) IEC 60332-3-22 (raw cable) UL VW-1 CSA FT-1
Resistance to oil
can withstand occasional splashes (raw cable)
Connection method
IDC/FLK socket strip
Number of connections
1
Number of positions
16
Pitch
2.54 mm
Connection method
IDC/FLK socket strip
Number of connections
1
Number of positions
16
Pitch
2.54 mm
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
