Product Model

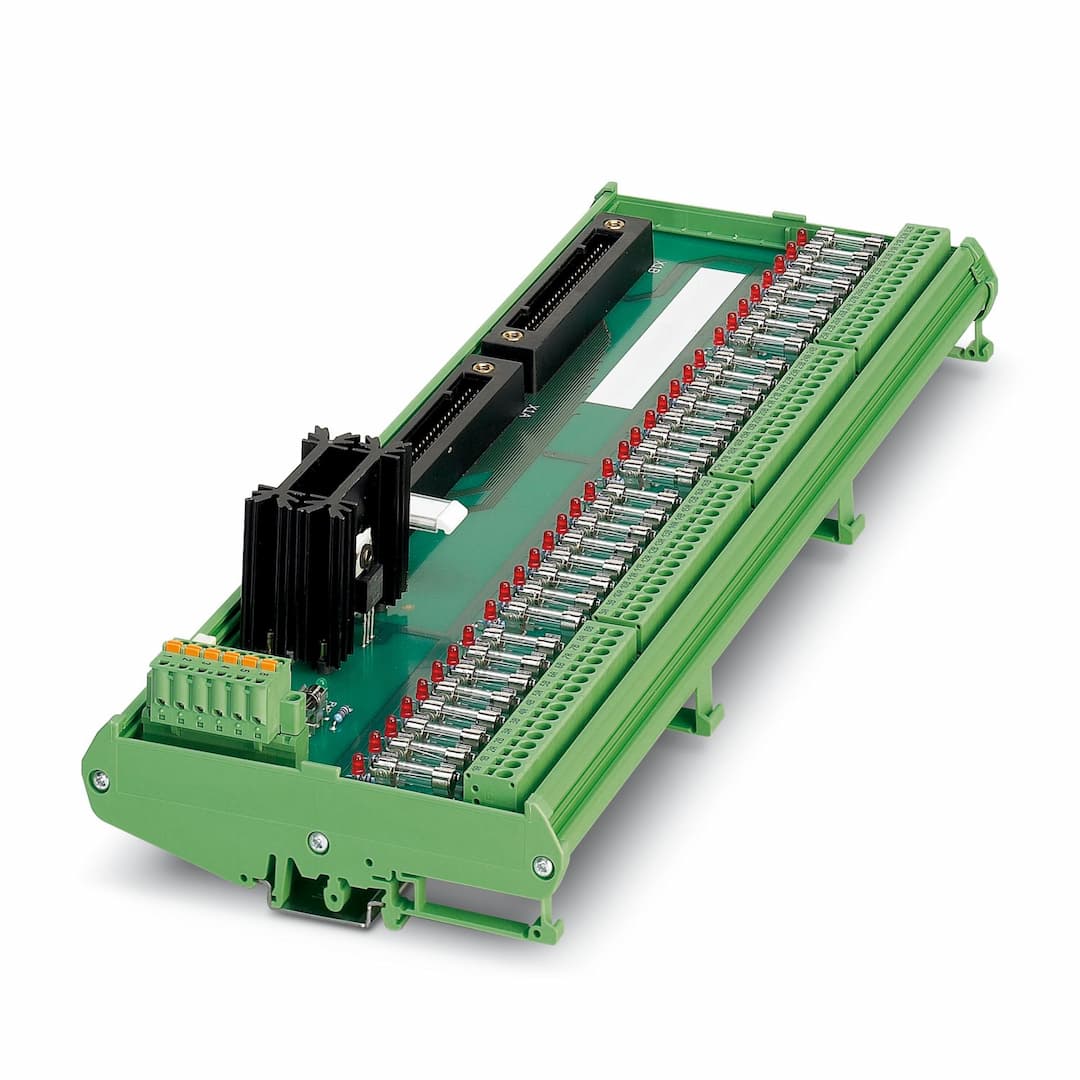

FLKM-2KS50/BFI/MKDS/CS
Selling Points
- 1Termination Board for Yokogawa I/O Modules: Compatible with Yokogawa ADV 151, ADV 161, ADV 551, and ADV 561 I/O modules.
- 2Fuse for Cable Protection: Includes a fuse for cable protection (5 x 20) and fuse failure display (LED) per channel.
- 3Redundant System Connection: Supports redundant system connections for enhanced reliability.
- 450 Positions: Offers 50 positions for secure and efficient connections.
- 5Operates in Wide Temperature Range: Functions within an ambient temperature range of -20 °C to 65 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | No. of channels | 32 |
Operating mode | 100% operating factor | Article revision | 04 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Nominal voltage U | 24 V DC
19.2 V DC ... 26.4 V DC |
Max. current carrying capacity per branch | 100 mA (observe derating) | Max. total current of all branches | 4 A (observe derating) |
Rated insulation voltage | 50 V DC | Rated surge voltage | 0.5 kV |
Suitable I/O card | ADV151
ADV161
ADV551
ADV561 | Suitable I/O card | NFDV151
NFDV161
NFDV551
NFDV561 |
Contact switching type | 1 N/O contact | Type of switch contact | Double contact |
Contact material | AgNi, 5 µm hard gold-plated | Maximum switching voltage | < 25 V AC
48 V DC |
Limiting continuous current | 1 A | Min. switching current | 1 mA |
Interrupting rating (ohmic load) max. | 24 W (24 V DC)
48 W (48 V DC)
25 VA (25 V AC) | Mechanical service life | approx. 2x 10 |
Connection method | Screw connection | Conductor cross section rigid | 0.2 m² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Yokogawa KS-compatible | Number of connections | 2 |
Number of positions | 50 | Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Tightening torque | 0.5 Nm | Status display | LED (red) |
Status display present | Yes, if the fuse fails | Operating voltage display | Green LED |
Width | 343.1 mm | Height | 111.9 mm |
Depth | 65.15 mm | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Standards/regulations | EN IEC 60664-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any | Notes on operation | Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display. |
Notes on operation | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. | Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). |
Notes on operation | Against adjacent modules in the support rail direction at least one functional insulation on the output-side is complied with. If the application has higher requirements on the insulation (basic insulation or reinforced insulation), then these must be realized through suitable measures (e. g. partition plates). | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
