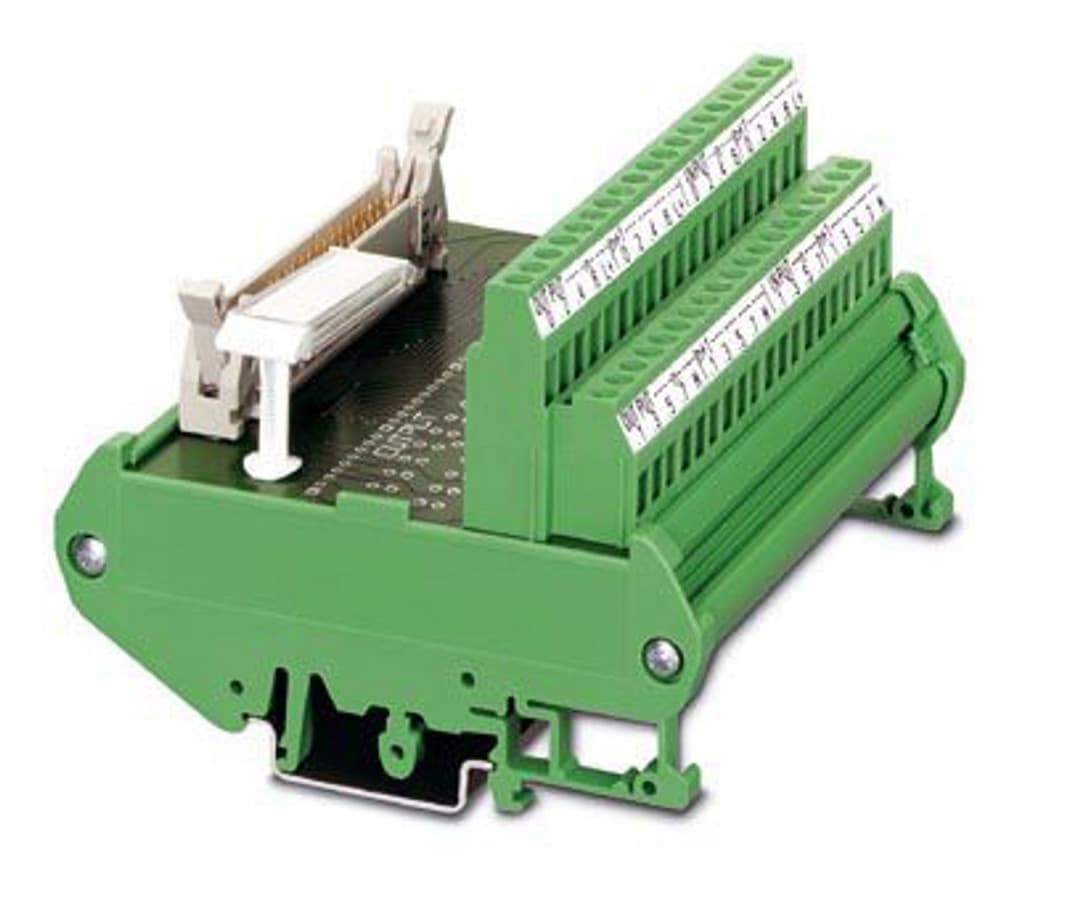

Product Model
FLKM 40/32IO/S100
Selling Points
- 1Versatile Connectivity: Compatible with Siemens SIMATIC S5-95U and S5-100U systems.
- 2High Reliability: Ensures stable and consistent performance in various industrial applications.
- 3Easy Installation: Simple screw connection and flat-ribbon cable connector for quick setup.
- 4Durable Design: Built to withstand ambient temperatures from -20°C to 50°C.
- 5Compliance Standards: Meets IEC 60664 and DIN EN 50178 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 40 |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | < 50 V AC
60 V DC | Max. current carrying capacity per branch | 1 A |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IDC/FLK pin strip |
Number of positions | 40 | Pitch | 2.54 mm |
Status display | no | Status display present | No |
Width | 112.5 mm | Height | 90 mm |
Depth | 68 mm | Color | green (RAL 6021) |
Housing insulation material | PVC | Ambient temperature (operation) | -20 °C ... 50 °C |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110
DIN VDE 0160 (in parts) | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
