Product Model

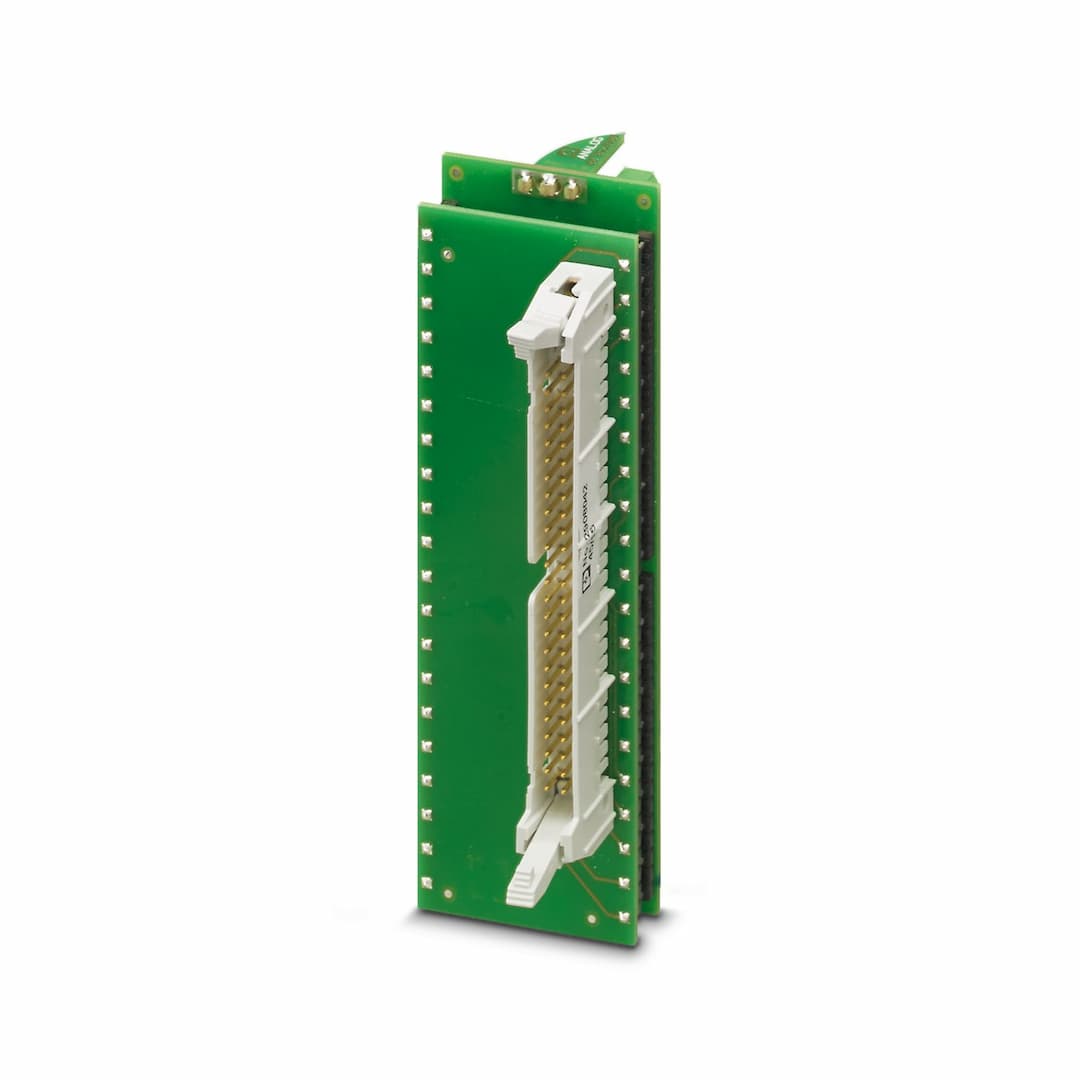

FLKM 50-PA-GE/RXI/AN
Selling Points
- 1Connects up to 32 channels for GE Fanuc PACSystems RX3i.
- 2Compatible with IDC/FLK pin strip and suitable I/O cards.
- 3Operates within -20°C to 50°C ambient temperature range.
- 4Meets DIN EN 50178 and IEC 60664 standards for insulation and surge voltage.
- 5Environmentally friendly with a 50-year use period and China RoHS compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Article revision | 02 |
Overvoltage category | II | Pollution degree | 2 |
Operating voltage (AC) | ≤ 25 V AC | Operating voltage (DC) | ≤ 60 V DC |
Nominal operating mode | 100% operating factor | Current (Per path) | ≤ 1 A |
Rated insulation voltage | 63 V | Rated surge voltage | 0.6 kV (Functional insulation) |
Suitable I/O card | IC695ALG608
IC695ALG616
IC695ALG626
IC695ALG629
IC695ALG704
IC695ALG708
IC695ALG728 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 50 |
Pitch | 2.54 mm | Width | 34.8 mm |
Height | 108.5 mm | Depth | 56.77 mm |
Degree of protection | IP00 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN EN 50178 |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
