Product Model

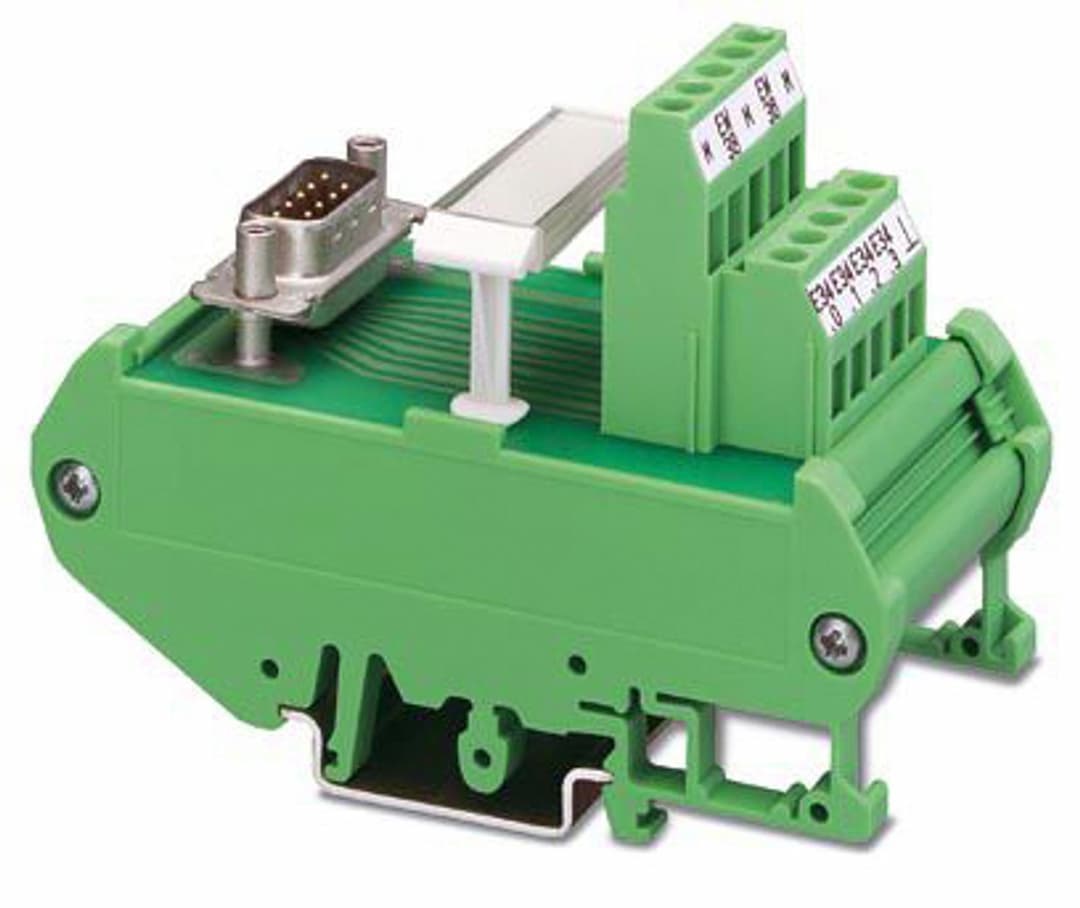

FLKM-D 9 SUB/S/COUNT/S95
Selling Points
- 1Converts 9-position D-SUB pin strip to screw terminal blocks.
- 2Can be mounted in any position.
- 3Provides functional insulation and meets DIN EN 50178 standards.
- 4Operates between -20°C and 50°C ambient temperature.
- 5Meets IP20 to IP54 degree of protection for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Operating mode | 100% operating factor | Article revision | 09 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 60 V DC | Current (per branch) | ≤ 2.5 A |
Current (Total current) | ≤ 22.5 A | Rated insulation voltage | 125 V |
Rated surge voltage | 1.2 kV (1.2/50 μs) | Connection in acc. with standard | IEC 60807-2 |
Connection method | D-SUB pin strip | Screw thread | UNC 4-40 |
Number of connections | 1 | Number of positions | 9 |
Insertion/withdrawal cycles | > 500 | Pitch | 2.74 mm |
Connection method | Screw connection | Stripping length | 7 mm |
Screw thread | M3 | Number of positions | 10 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross-section rigid (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve) | Conductor cross section flexible (2 conductors with same cross section) | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 0.5 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 24 ... 12 | Tightening torque | 0.5 Nm ... 0.6 Nm |
Pitch | 5.08 mm | Status display present | No |
Width | 33.5 mm | Height | 89.6 mm |
Depth | 65.9 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide 6.6 green | Degree of protection (Module) | IP20 |
Degree of protection (Installation location) | ≥ IP54 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
