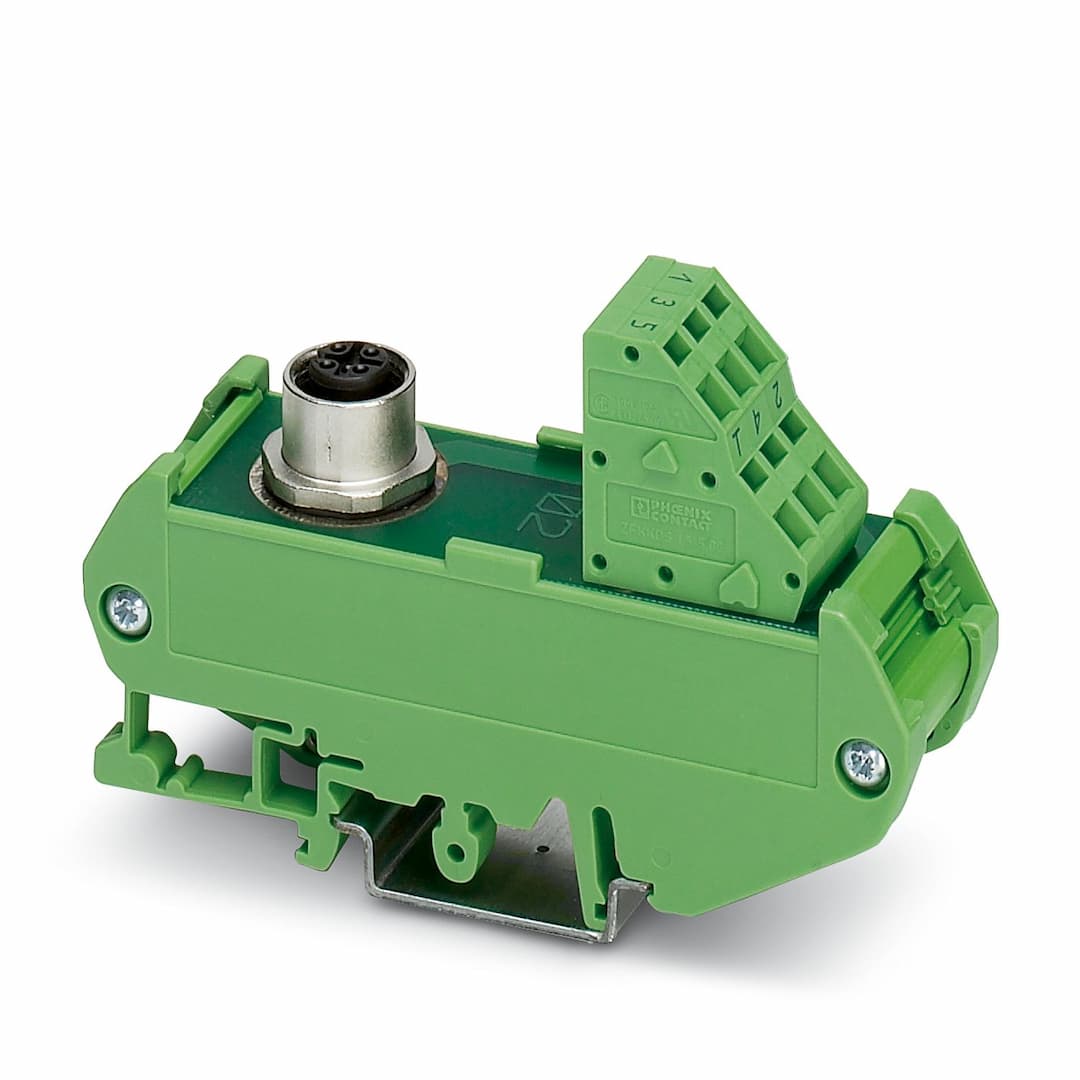

Phoenix Contact FLKM-M12/B/5P/4A/SO106 Interface Module

Selling Points

1High-Quality Construction: Built with durable polyamide PA non-reinforced housing for long-lasting performance.
2Versatile Connectivity: Equipped with spring-cage terminal blocks and an M12-SAC socket for secure connections.
3Compact Design: Suitable for various industrial applications due to its compact size and robust design.
4Easy Installation: Simple to install with its intuitive spring-cage terminal blocks.
5Reliable Performance: Designed to provide consistent and reliable electrical connections in demanding environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Interface module	Number of positions	5
Overvoltage category	II	Pollution degree	2
Nominal voltage U	24 V AC/DC	Max. current carrying capacity per branch	4 A
Rated surge voltage	Basic insulation	Connection in acc. with standard	IEC / EN
Connection method	Spring-cage connection	Stripping length	7 mm
Number of positions	6	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²	Conductor cross section AWG	24 ... 14
Connection method	M12-SAC socket	Number of positions	5
Note	Socket, 5-pos., A-coded	Status display present	No
Width	26.5 mm	Height	90 mm
Depth	60 mm	Color	green (RAL 6021)
Housing insulation material	Polyamide PA non-reinforced	Ambient temperature (operation)	-20 °C ... 55 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C	Standards/regulations	EN 50178
Mounting type	DIN rail mounting	Assembly note	in rows with zero spacing
Mounting position	any	Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
