Product Model

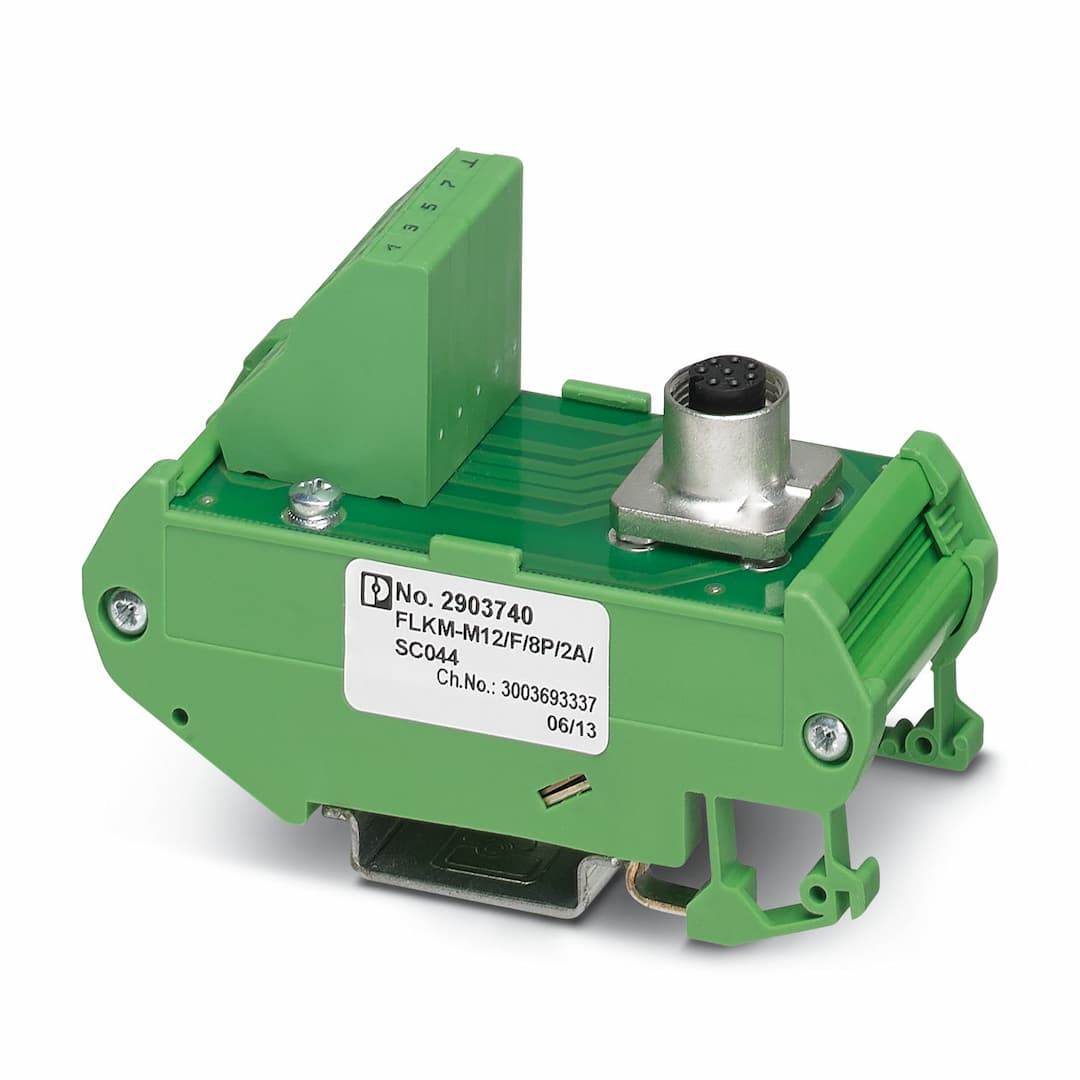

FLKM-M12/F/8P/2A/SC044
Selling Points
- 1High-Quality Connectivity: The FLKM-M12/F/8P/2A/SC044 interface module offers reliable and efficient connections with spring-cage connection terminal blocks and M12-SAC socket.
- 2Industrial Grade: Designed for industrial applications, this module withstands ambient temperatures from -20 °C to 55 °C and is available in multiples of 10.
- 3Technical Specifications: Compatible with IEC and EN standards, it supports conductor cross sections from 0.2 mm² to 2.5 mm² and has a maximum permissible current of 2 A per branch.
- 4Compliance and Certifications: UL Recognized, cULus Recognized, and compliant with REACh SVHC and China RoHS regulations for environmentally friendly use.
- 5Versatile Mounting: Can be mounted in any position with zero spacing between rows, making it versatile for various installation scenarios.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Number of positions | 8 | Article revision | 06 |
Insulation | Functional insulation | Overvoltage category | II |
Pollution degree | 2 | Operating voltage (AC) | ≤ 30 V AC |
Operating voltage (DC) | ≤ 30 V DC | Current (per branch) | ≤ 2 A |
Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV (1.2/50 μs) |
Connection in acc. with standard | IEC 61076-2-101 | Connection method | Female |
Type | M12 | Coding | A |
Number of connections | 1 | Number of positions | 8 |
Connection method | Spring-cage connection | Stripping length | 7.5 mm |
Number of positions | 10 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 1.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 14 |
Pitch | 5.08 mm | Status display present | No |
Width | 38 mm | Height | 90 mm |
Depth | 60 mm | Color | green (RAL 6021) |
Degree of protection (Module) | IP00 | Degree of protection (Installation location) | ≥ IP54 |
Ambient temperature (operation) | -20 °C ... 55 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Certificate | UKCA-compliant |
Standards/regulations | EN IEC 60664-1 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
