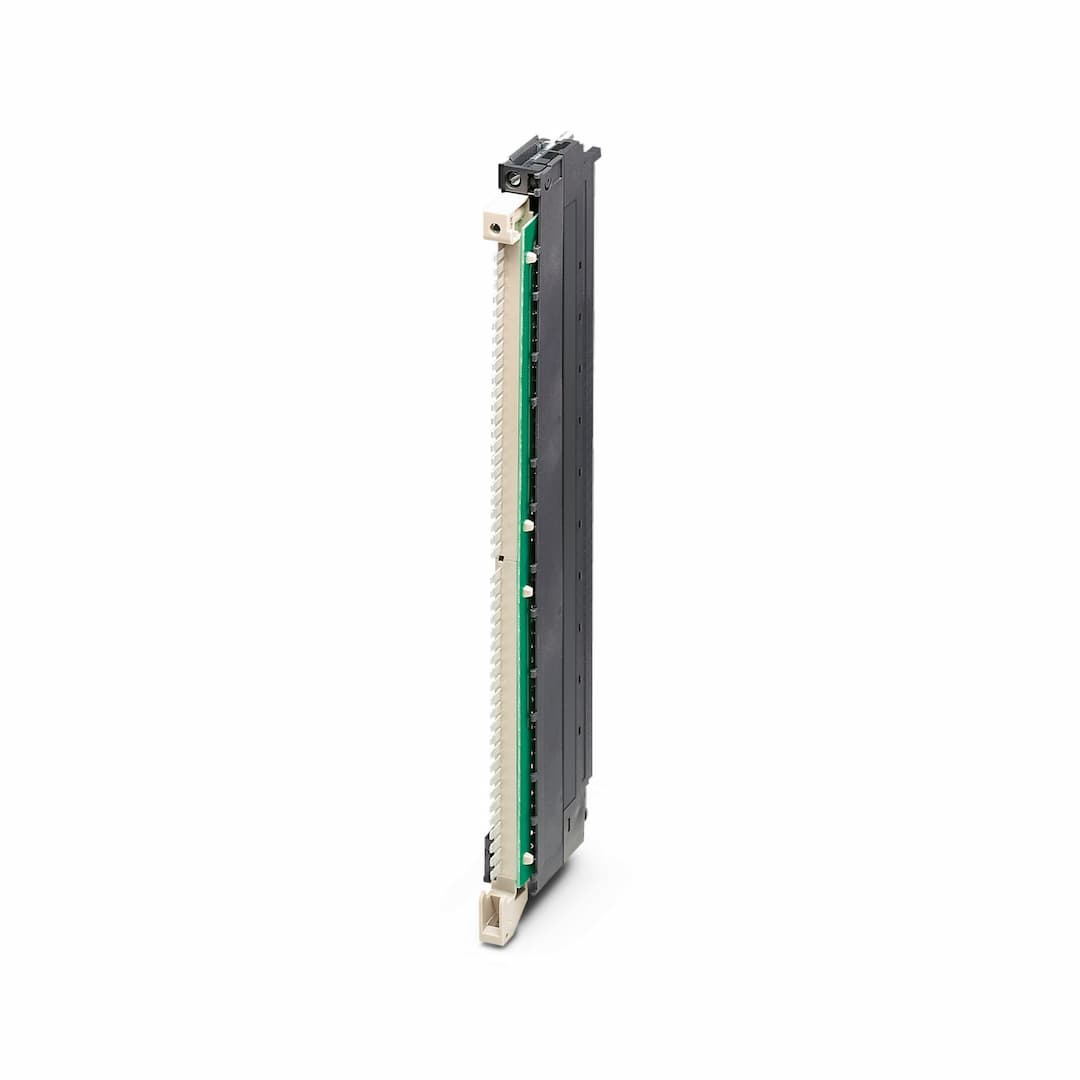

Product Model
FLKM S115-465-7LA/UI/S400
Selling Points
- 1Direct Connection: Connects SIMATIC S5 to SIMATIC S7-400 seamlessly.
- 2High-Quality Performance: Designed for optimal performance and durability in various applications.
- 3Technical Specifications: Supports up to 24 V AC/DC, 4 A per branch, and 500 V test voltage.
- 4Easy Installation: No need to rewire; existing field wiring remains intact.
- 5Versatile Compatibility: Compatible with multiple SIMATIC modules for versatile industrial automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Overvoltage category | II |
Pollution degree | 2 | Max. permissible operating voltage | 60 V DC |
Max. permissible current | 4 A (per path)
4 A (per connection, supply via separate power supply) | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV (Functional insulation) | Suitable I/O card | 6ES5 465-7LA13 |
Connection method | SIEMENS S5-115 U pin strip | Degree of protection | IP00 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting position | any |
Notes on operation | Due to the geometry, it is only possible to use every second slot. The LEDs of the S7-400 module are hidden by the S5-115 adapter. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
