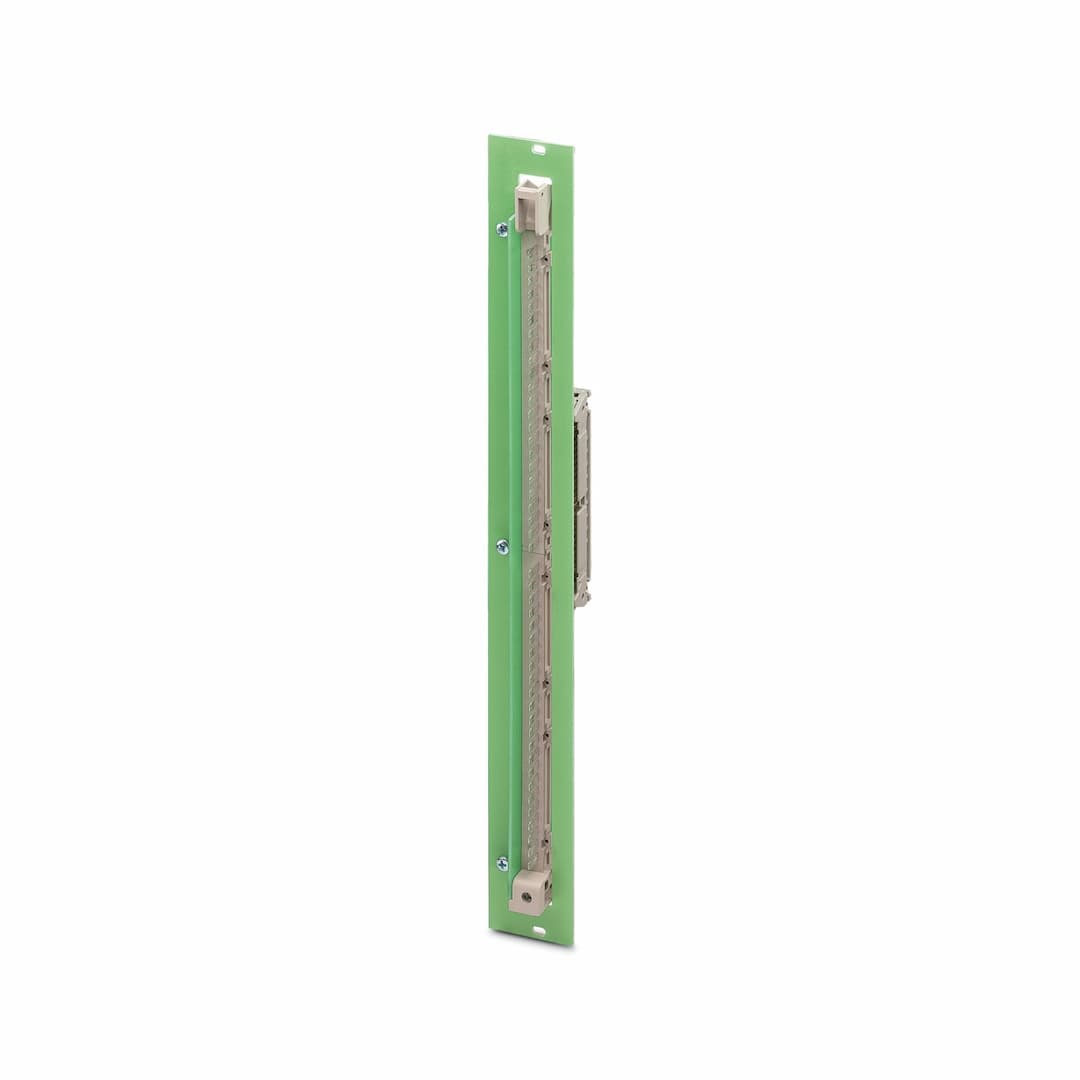

Product Model
FLKM S115/S7/FLK50/PLC/SO137
Selling Points
- 1Seamless Conversion: Converts SIMATIC S5-115 to S7 with ease.
- 250-Position FLK Strip: Compatible with 50-position FLK strip for extensive I/O connections.
- 3High Current Handling: Supports up to 2 A total current per byte.
- 4Durable Design: Operates within -20°C to 50°C ambient temperature range.
- 5Compliance and Certifications: Meets China RoHS standards and EAC Ex approvals for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Front adapter | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | 60 V DC | Max. permissible current | 1 A (per path) |
Max. permissible total current | 2 A (per byte) | Rated insulation voltage | 63 V |
Rated surge voltage | 0.6 kV | Suitable I/O card | 6ES5 420-7LA11
6ES5 430-7LA11
6ES5 441-7LA11
6ES5 451-7LA11 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 50 | Pitch | 2.54 mm |
Degree of protection | IP00 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
DIN EN 50178 |
Mounting position | any | Order information: | The components for setting up an adapter carrier as in the application example (data sheet in the download area), which can be used to secure the migration adapter, can be obtained from Heitec AG based in Eckental-Eschenau, Germany. The following order numbers are required for carrier setup: |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
