Product Model

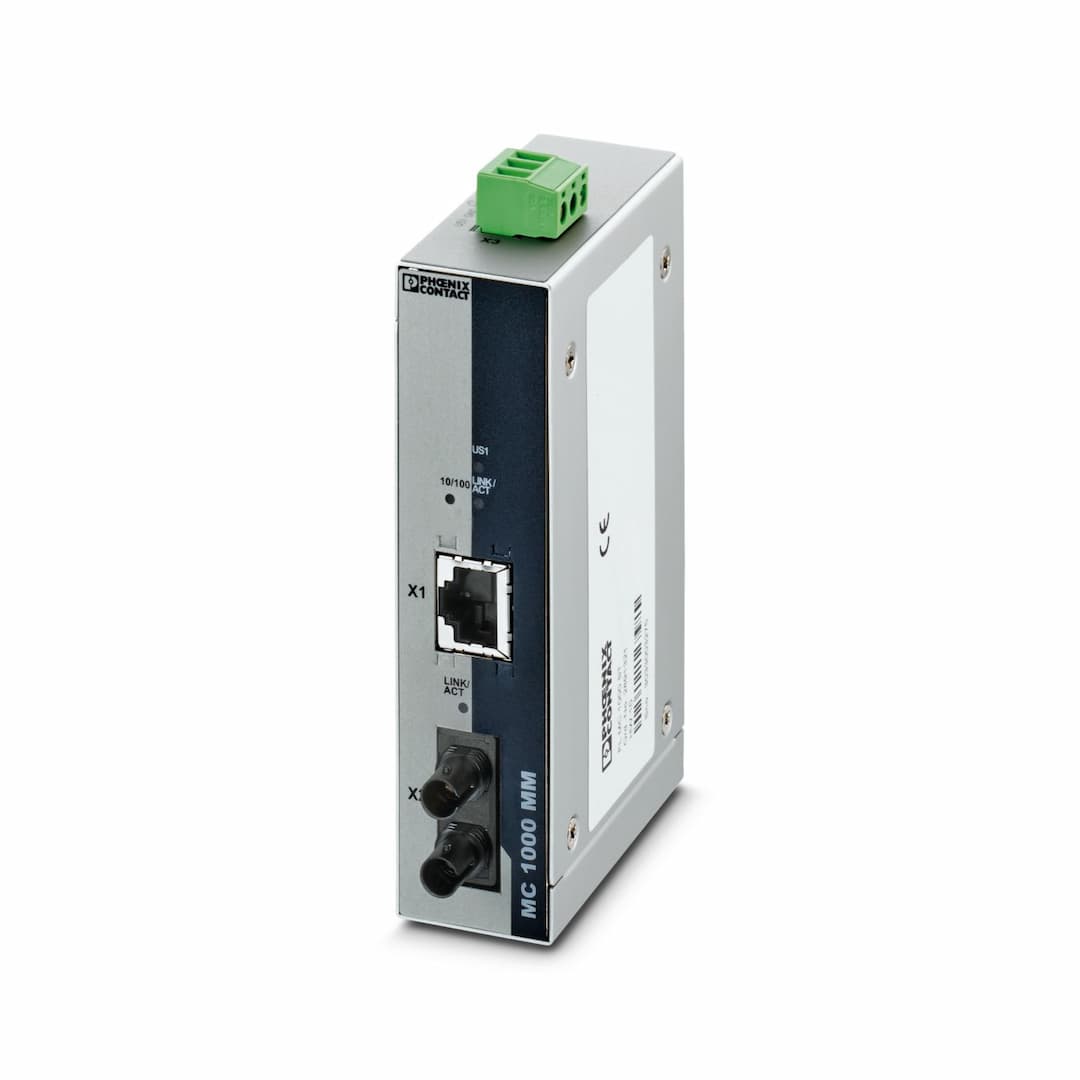

FL MC 1000 ST
Selling Points
- 1Converts 100Base-TX to multi-mode fiberglass with ST fiber optic connection.
- 2Supports auto MDI(X) function and comprehensive link diagnostics.
- 3DIN rail mountable, compact design (28 mm width, 110 mm height).
- 4Operates at 24 V DC, suitable for temperatures from 0°C to +60°C.
- 5Ideal for applications requiring Ethernet transmission over short distances up to 100 meters.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Media converter |
MTTF | 95.85 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) | Signal delay | ± 1.3 µs (Store and Forward mode, 10/100 Mbps, depending on the frame size) |
Article revision | 05 | Electrical isolation | VCC // FE // Ethernet |
Test voltage data interface/power supply | 1500 V AC (500 V AC, 1 minute) | Supply voltage range | 12 V DC ... 48 V DC |
Nominal supply voltage | 24 V DC | Typical current consumption | 73 mA (24 V DC) |
Connection method | Plug-in/screw connection via COMBICON | Signal | Ethernet |
Transmit capacity, minimum | -19 dBm | Transmit capacity, maximum | -14 dBm |
Transmission length incl. 3 dB system reserve | 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800) | Connection method | ST |
Wavelength | 1310 nm | Minimum receiver sensitivity | -34 dBm |
Maximum receiver sensitivity | -14 dBm | Transmission medium | Multi-mode fiberglass
GI-HCS fiber |
Serial transmission speed | 10/100 Mbps | Connection method | RJ45 jack, shielded |
No. of channels | 1 | Transmission length | 100 m (twisted pair, shielded) |
Transmission medium | Copper | Signal LEDs | LNK/ACT, 100 |
Auto-negotiation modes | Auto | Link through | Link fault pass through |
MDI-/MDI-X switchover | Auto-MDI(X) | Width | 28 mm |
Height | 110 mm | Depth | 70 mm |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 60 °C |
Ambient temperature (storage/transport) | 0 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Conformance | CE-compliant | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Mounting type | DIN rail: 35 mm |
Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
Specifications may be subject to change without notice
