Product Model

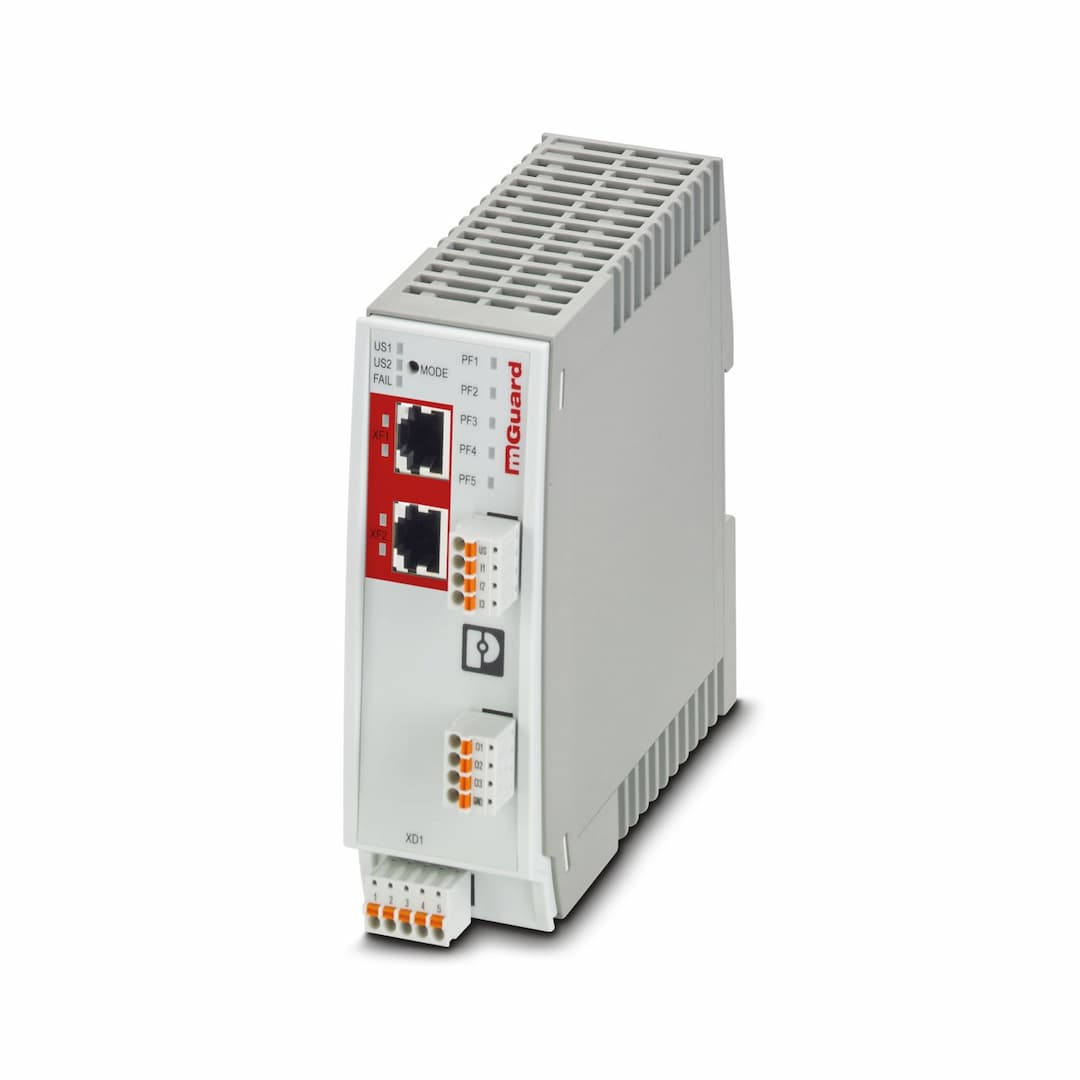

FL MGUARD 1102
Selling Points
- 1Comprehensive NAT functionality for secure network operations.
- 2Intelligent stateful inspection firewall for robust protection.
- 3Easy Protect Mode for immediate protection without configuration.
- 4Firewall Assistant for simple rule creation and validation.
- 5High data throughput and non-blocking test mode for system availability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 133.8 mm | Note on application | Only for industrial use |
Color | gray | Housing material | Polycarbonate fiber reinforced |
Connection method | RJ45 | Transmission speed | 10/100/1000 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 2 (RJ45 ports) |
Connection method | Push-in-/Spring-cage connection | Additional text | not electrically isolated |
Basic functions | NAT firewall with intelligent firewall, slot for SD memory card | Supported browsers | Firefox, Chrome, Edge in the latest version |
Product type | Security router for the DIN rail | Product family | Security-Router |
Type | Stand-Alone | Special properties | NAT |
Article revision | 08 | Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Filtering | IP, port, protocol | Firewall rules | Stateful inspection firewall |
Basic functions | NAT firewall with intelligent firewall, slot for SD memory card | Network Time Protocol (NTP) client | Client/server |
Routing | Standard routing, NAT, 1:1-NAT, port forwarding | Protection against | IP spoofing, DoS and Syn Flood Protection |
Local diagnostics | US1 Supply voltage US1 Green LED
One LED per port Link active Green LED | Maximum power dissipation for nominal condition | typ. 2.88 W |
Supply voltage (DC) | 24 V DC | Supply voltage range | 18 V DC ... 32 V DC |
Power supply connection | via COMBICON, max. conductor cross section 1.5 mm² | Residual ripple | 3.6 V |
Max. current consumption | 1000 mA (loaded outputs) | Typical current consumption | 120 mA (at 24 V DC) |
Signal contact control voltage | 24 V DC (typical) | Signal contact control current | 250 mA (short-circuit-proof) |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Conformance | CE-compliant | Mounting type | DIN rail mounting |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) 6 kV contact discharge, 8 kV air discharge
IEC 61000-6-2 IEC 61000-4-3 (immunity to radiated interference) 10 V/m (80 MHz ... 2000 MHz)
IEC 61000-6-2 IEC 61000-4-4 (burst) 2 kV power line, 1kV data line
IEC 61000-6-2 IEC 61000-4-5 (surge) power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
IEC 61000-6-2 IEC 61000-4-6 (immunity to conducted interference) 3 V (10 kHz ... 150 kHz), 10 V (150 kHz ... 80 MHz) |
Noise immunity | EN 61000-6-2:2005 | Noise emission | EN 55022 / Class B |
Status display | Supply voltage, data transmission, error, link, activity |
Specifications may be subject to change without notice
