Product Model

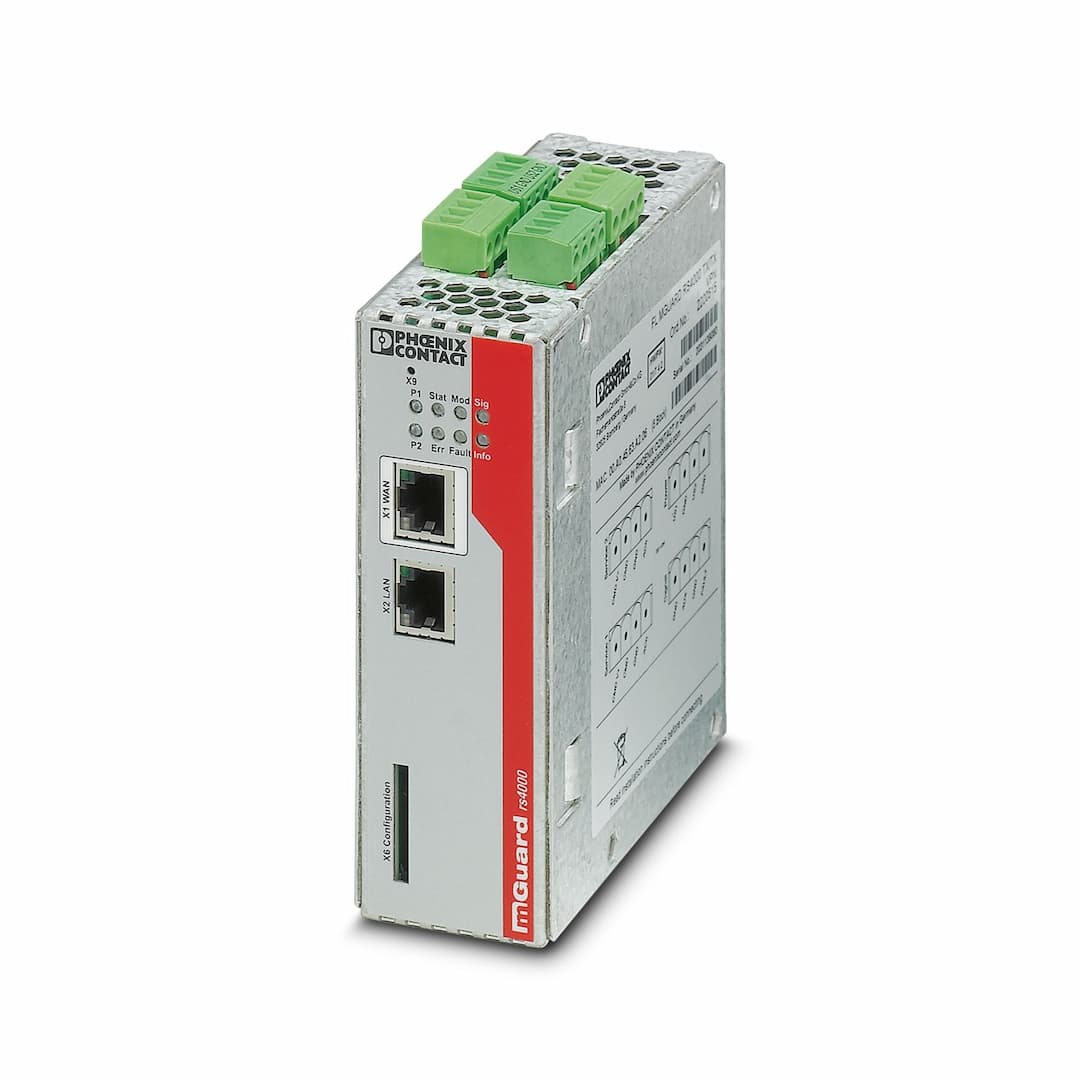

FL MGUARD RS4000 TX/TX VPN-M
Selling Points
- 1Advanced Firewall with Stateful Inspection
- 2Supports up to 10 VPN Tunnels (250 with additional license)
- 3High-Performance Firewall/VPN: up to 124 Mbps/40 Mbps
- 4Metal Housing for Durability and Protection
- 5Compatibility with SD Memory Cards for Data Storage
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 45 mm | Height | 130 mm |
Depth | 120.6 mm | Note on application | Only for industrial use |
Color | silver | Housing material | Metal |
Connection method | RJ45 | Transmission speed | 10/100 Mbps |
Transmission physics | Ethernet in RJ45 twisted pair | Transmission length | 100 m (per segment) |
Signal LEDs | Supply voltage, data transmission, error, link, activity | No. of channels | 2 (RJ45 ports) |
Connection method | Plug-in/screw connection via COMBICON | Additional text | not electrically isolated |
Connection method | 24 V DC/250 mA can be connected as an option | Basic functions | Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps/40 Mbps |
Supported browsers | HTTPS support required | Product type | Security router for the DIN rail |
Type | Stand-Alone | Article revision | 08 |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) | 1:1 Network Address Translation (NAT) in the VPN | supported |
Number of VPN tunnels | 10 (up to 250 tunnels with additional license as an option) | Authentication | X.509v3 certificates with RSA or PSK |
Data integrity | MD5, SHA-1, SHA 256, SHA-512 | Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
Filtering | MAC and IP addresses, ports, protocols | Firewall data throughput | max. 124 Mbps (Router mode, default firewall rules, bidirectional throughput)
max. 61 Mbps (Stealth mode, default firewall rules, bidirectional throughput) |
Firewall rules | Configurable stateful inspection firewall with full scope of functions | Basic functions | Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card, extended temperature range, high-performance firewall/VPN: up to 124 Mbps/40 Mbps |
Internet Protocol Security (IPsec) mode | ESP tunnel / ESP transport | Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
Network Time Protocol (NTP) client | Client | Remote Syslog Logging | on externals server |
Routing | Standard routing, NAT, 1:1-NAT, port forwarding | Protection against | IP spoofing, DoS and Syn Flood Protection |
Encryption methods | DES, 3DES, AES-128, -192, -256 | Virtual private network (VPN) throughput | max. 40 Mbps (Router mode, VPN bidirectional throughput)
max. 27 Mbps (Stealth mode, VPN bidirectional throughput) |
Maximum power dissipation for nominal condition | 2.4 W | Supply voltage (DC) | 24 V DC (redundant) |
Supply voltage range | 11 V DC ... 36 V DC | Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
Residual ripple | 3.6 V | Max. current consumption | 0.24 A |
Typical current consumption | 100 mA (at U | Signal contact control voltage | 24 V DC (typical) |
Signal contact control current | 250 mA (short-circuit-proof) | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Conformance | CE-compliant |
Mounting type | DIN rail mounting | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Status display | LEDs:P1, P2, Fault, State, Error, LAN, WAN |
Specifications may be subject to change without notice
