Product Model

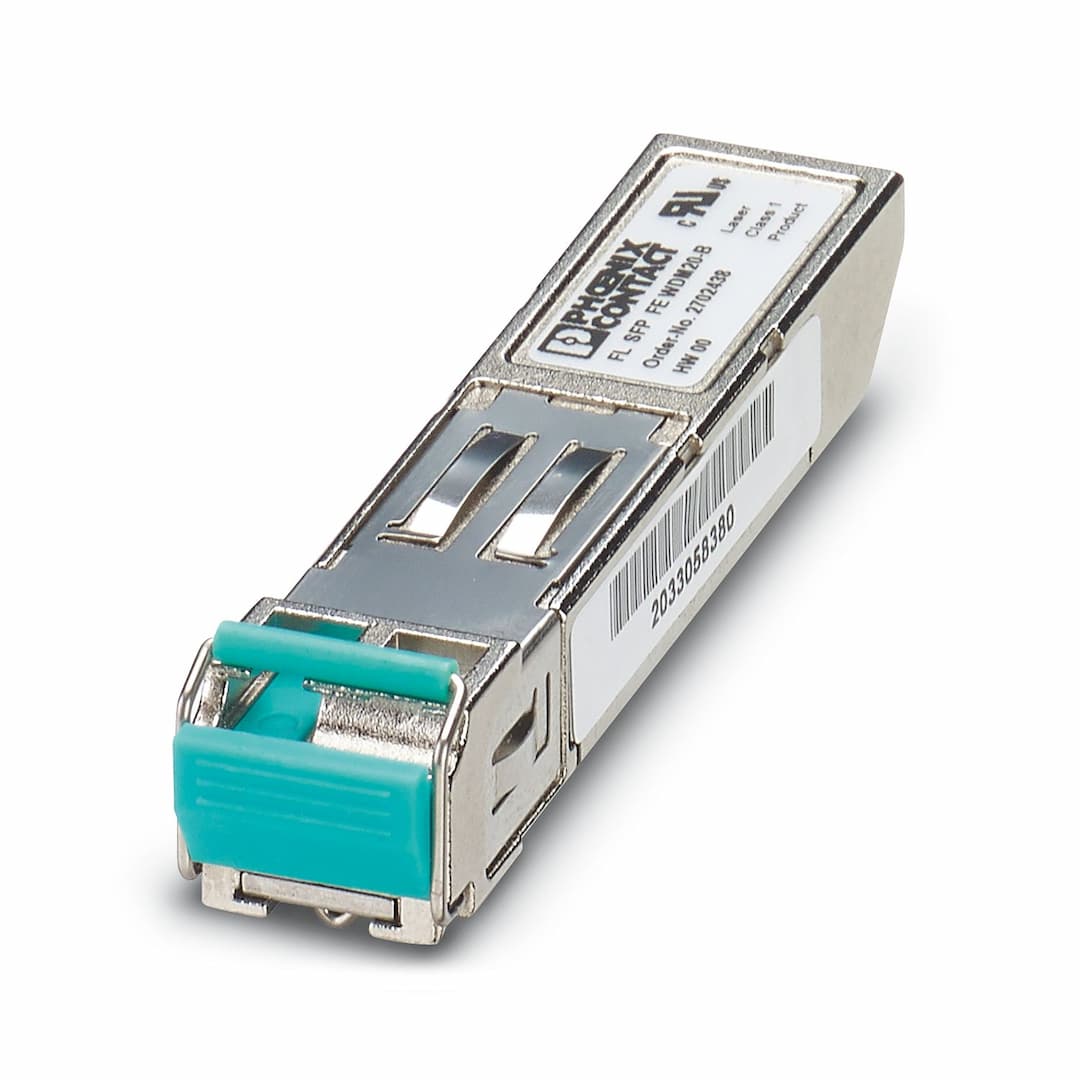

FL SFP FE WDM20-B
Selling Points
- 1Fast Ethernet SFP WDM module for transmission up to 20 km on a single fiber.
- 2Compatible with 1550/1310 nm wavelength for reliable data transfer.
- 3MSA compliant for industry-standard compatibility.
- 4Compact dimensions: 13.7 mm width, 8.95 mm height, 56.5 mm length.
- 5High MTTF of 221 years for long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 13.7 mm | Height | 8.95 mm |
Length | 56.5 mm | Note on application | Only for industrial use |
Housing material | Metal | Mounting type | Insert in SFP slot |
Connection method | LC | Transmission speed | 100 Mbps |
Transmit capacity, minimum | -14 dBm | Transmit capacity, maximum | -8 dBm |
Minimum receiver sensitivity | -32 dBm | Maximum receiver sensitivity | -3 dBm |
Transmission physics | Single-mode fiberglass | Transmission length | 20 km (Fiberglass 9/125) |
Wavelength | 1550 nm (TX)
1310 nm (RX) | Signal LEDs | depending on the Factoryline device |
No. of channels | 1 (LC single mode) | Product type | SFP module |
Type | Factoryline devices with SFP slot | MTTF | 221 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1) |
Format | SFP (Small Form-factor Pluggable) | Status display | via a Factoryline device |
Current consumption | 300 mA | Maximum power dissipation for nominal condition | 1 W |
Transmission medium | FO | Supply voltage | 3.3 V (via Factoryline switch) |
Power supply connection | via SFP slot | Max. current consumption | 300 mA |
Current consumption | 300 mA | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C (non-condensing) |
Case temperature | max. 85 °C (Operation) | Standard designation | Laser equipment safety |
Standards/specifications | IEC 60825 |
Specifications may be subject to change without notice
